DX10-SI

型号：

DX10-SI

品牌：

TELEDYNE[ TELEDYNE TECHNOLOGIES INCORPORATED ]

页数：

8 页

PDF大小：

1239 K

下载PDF手册

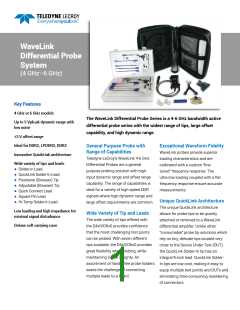

WaveLink
Differential Probe
System
(4 GHz–6 GHz)
Key Features
4 GHz or 6 GHz models
The WaveLink Differential Probe Series is a 4-6 GHz bandwidth active
differential probe series with the widest range of tips, large offset
capability, and high dynamic range.
Up to 5 Vpk-pk dynamic range with
low noise
±3 V offset range
Ideal for DDR2, LPDDR2, DDR3
Innovative QuickLink architecture
Wide variety of tips and leads
General Purpose Probe with
Range of Capabilities
Teledyne LeCroy’s WaveLink 4-6 GHz
Exceptional Waveform Fidelity
WaveLink probes provide superior
loading characteristics and are
calibrated with a custom “fine-
tuned” frequency response. The
ultra-low loading coupled with a flat
frequency response ensure accurate
measurements.
Differential Probes are a general
Solder-In Lead
QuickLink Solder-In Lead
Positioner (Browser) Tip
Adjustable (Browser) Tip
Quick Connect Lead
Square Pin Lead
Hi-Temp Solder-In Lead
•
purpose probing solution with high-
input dynamic range and offset range
capability. The range of capabilities is
ideal for a variety of high-speed DDR
signals where high dynamic range and
large offset requirements are common.
•
•
•
•
•
Unique QuickLink Architecture
The unique QuickLink architecture
allows for probe tips to be quickly
attached or removed to a WaveLink
differential amplifier. Unlike other
“consumable” probe tip solutions which
rely on tiny, delicate tips located very
close to the Device Under Test (DUT),
the QuickLink Solder-In tip has an
integral 9-inch lead. QuickLink Solder-
In tips are low cost, making it easy to
equip multiple test points and DUTs and
eliminating time-consuming resoldering
of connectors.
•
Low loading and high impedance for
minimal signal disturbance
Wide Variety of Tip and Leads
The wide variety of tips offered with
the D4x0/D6x0 provides confidence
that the most challenging test points
can be probed. With seven different
tips available, the D4x0/D6x0 provides
great flexibility when probing, while
maintaining signal integrity. An
Deluxe soft carrying case
assortment of hands-free probe holders
eases the challenge of connecting
multiple leads to a board.
EXCEPTIONAL WAVEFORM FIDELITY
The D4x0/D6x0 probe series has superior electrical
In addition to their electrical performance, WaveLink probes
have the best-in-class mechanical design for optimum
characteristics, providing excellent signal fidelity. These
probes were designed with low loading and high impedance utility. The D4x0/D6x0 probes series includes seven
for minimal signal disturbance and circuit loading. WaveLink different interconnect configurations allowing for flexibility
probes use a unique calibration process where each probe
is programmed with a custom “fine-tuned” frequency
response which is read by the oscilloscope in order to
digitally compensate for the entire system response.
when making measurements. Additionally, WaveLink probes
offer a variety of hands free positioners to offer stable and
accurate probe tip placement to make perfect contact
without the worry of hand probing errors.
INNOVATIVE QUICKLINK ARCHITECTURE
The QuickLink probe tip system was designed from the ground up to be compatible with both the HDA125 High-speed
Digital Analyzer system, and with Teledyne LeCroy’s WaveLink series of differential analog probes. This cross-connection
ability allows you to equip your system under test with QuickLink tips at all desired test points, and swap connections
between digital and analog acquisition systems as needed.
WaveMaster/SDA/DDA 8 Zi
USB
LBUS
HDA125
HDA-DLS-18QL
HDA-DLS-9QL
Dxx30
Differential
Amplifier
Dx10-A
Differential
Amplifier
Dx20-A
Differential
Amplifier
Dxx30-QL
Adapter
Dx10-QL
Adapter
Dx20-QL
Adapter
QL-SI
Solder-In Lead
High Signal Fidelity
Easy to connect
Cost-effective
When connected to a WaveLink analog Unlike other “consumable” probe tip
QuickLink solder-in tips are low-cost,
making it easy to equip multiple test
points and DUTs, and eliminating time-
consuming re-soldering of connectors.
probe, QuickLink tips provide 8 GHz of
bandwidth and a flat, well-controlled
frequency response. When used for
digital acquisitions with the HDA125,
they support 3 GHz bandwidth with
industry-leading sensitivity. In both
cases, high input impedance ensures
minimal loading of the system
under test.
solutions which rely on tiny, delicate
tips located very close to the device
under test, the QuickLink solder-in
tip has an integral 9-inch lead. This
effectively relocates your test point to
a more convenient location, making
testing more reliable by eliminating
torque and other forces on the
solder joints.
3
WIDE VARIETY OF TIPS AND LEADS
Offering seven different tips and leads, the D4x0/D6x0 probe series provides confidence that the most challenging test
points can be probed. In addition to the various tips, an assortment of hands-free probe holders are provided to ease the
challenge of connecting multiple leads to a board.
Solder-In Lead (SI)
QuickLink Solder-In Lead (QL-SI)
The unique QuickLink architecture allows
for probe tips to be quickly attached
or removed to a WaveLink differential
amplifier. The ultra low loading design
allows for unused tips to remain attached
to the DUT without impacting the signal
fidelity.
Positioner Tip (PT)
The Solder-In interconnect lead features the
smallest physical tip size of any high band-
width differential probe and the highest
level of electrical performance. Two very
small damping resistors are directly sol-
dered into the connect points for the high-
est impedance and lowest tip inductance.
The resistors have highly flexible leads
allowing connection to input points with a
wide range of input spacing.
The PT positioner tips provides spring
loaded leads to allow for easy probing. The
adjustable wheel allows for precise probing,
allowing a spread up to 0.14”. The small
form factor provides a convenient grip for
hand probing, or use the wand or XYZ posi-
tioner for more precise placement.
Square Pin (SP)
Quick Connect (QC)
High Temperature (HiTemp)
Many applications, such as IC characteriza-
tion boards, use standard 0.025” square
pins for interconnect. The Square Pin in-
terconnect lead directly mates with a pair
of 0.025” (0.635 mm) square pins that are
mounted on standard 0.100” (2.54 mm)
centers.
The Quick Connect interconnect lead
enables the probe to be quickly moved
between multiple test points on the test cir-
cuit. Just solder a pair of leaded damping
resistors at each location where intercon-
nection is required. A small connector
mounted on the probe tip plugs into the
damping resistors, enabling a quick con-
nection between sets of test points.
Cables and Solder-In Lead
The 90 cm HiTemp cables and Solder-In
lead can be used for controlled situations
where the differential amplifier module
needs to be removed from the extreme
temperature environment. Ideally suited for
testing scenarios where the temperature
can fluctuate from -40 °C to +105 °C.
4
WaveLink Differential Amplifier Modules
with Adjustable Tip (-AT)
WaveLink adjustable tip probes are designed to provide an optimum mechanical
connection for signal measurement.
Built-in thumbwheel for precise positioning of tip — stays put after adjustment
•
Maintains sharp points for good contact
•
Tips made of “NiTiNOL,” a super-elastic nickel-titanium alloy
•
Flexes as you apply pressure
•
Consistently returns to original form
•
Deluxe Soft Carrying Case
The D4x0/D6x0 probe series includes a deluxe soft carrying case which stores all components of the complete probe
system in one convenient location. The case includes a custom foam insert to securely house the platform/cable assembly
and the differential probe amplifier. Additionally, a removable protective storage tray has been designed to neatly arrange
the complete selection of tips/accessories for ease of accessibility. The deluxe soft carrying case can easily fit in a
standard-sized file drawer or shelf for storage and is provided as part of the stadard probe configuration.
5
COMPATIBILITY AND STANDARD ACCESSORIES
Compatibility Chart
Platform/Cable
Assembly
Differential
Amplifiers
Tips/Leads
Accessories and
D4x0-A
D6x0-A
1 each
Dx10-PT-KIT
WL-PBUS2
D4x0-A-Pxx Dx10-QL-3SI Dx10-HiTemp
Replacement Parts
Dx20-PT-KIT WL-PLINK-CASE D6x0-A-Pxx Dx20-QL-3SI Dx20-HiTemp Dx00A-AT-Pxx Replacement Part
Amplifier System
(includes items below with*)
*Amplifier
1 each
D410-A, D420-A, D610-A or D620-A
1 each
1 each
1 each
1 each
*Solder-In Lead Set
Dx10-SI, Dx20-SI
(includes items below with**)
**Spare Damping Resistors for SI Tip
**Tip Retaining Clip for SI & QC Leads
**Adhesive Tape
1 set of 5
1 each
1 set
1 set of 5
1 each
1 set
PKxx0-SI (1 set of 20)
PK600ST-3
Dxx0-PT-TAPE
*Quick Connect Lead Set
*Damping Resistors for QC Tip
(Included with QC Tip)
*Ground Lead
*Ground Clip
*Square Pin Lead Set
*Instruction Manual
1 each
2 sets of
10
1 each
1 each
1 each
1 each
1 each
1 each
Dx10-QC, Dx20-QC
2 sets of 10
PKxx0-QC
1 each
1 each
1 each
1 each
1 each
1 each
1 each
PACC-LD005
PK006-4
Dx10-SP, Dx20-SP
WL6G-OM-E
921489-00 (Dx10), 921488-00(Dx20)
RK-Dx10-PT-KIT, RK-Dx20-PT-KIT
1 each
*Accessory Info Sheet & Quick Start Guide
Positioner Tip with Accessories
1 each
†
(kit includes items below with )
†
1 each
1 set
Dx10-PT, Dx20-PT
Dxx0-PT-TIPS
Positioner Tip Browser
†
Replacement Pogo-pins for Dx10-PT/Dx20-PT
†
1 set
Positioner Tip Probe Guides
Dxx0-PT-GUIDES
Dxx0-PT-XYZ-POSITIONER
Dxx0-PT-TAPE
Dxx0-PT-WAND
Dxx0-PT-INTERLOCK
Dxx0-PT-SWIVEL
†
1 each
1 each
1 each
1 each
1 each
XYZ Positioner
†
Adhesive Tape for XYZ Positioner
†
†
Browser Wand for PT Tip
Interlock Pieces for PT Tip
†
Swivel for PT Tip
Platform/Cable Assembly Kit
(includes items below with‡)
‡Platform/Cable Assembly
‡Freehand Probe Holder
‡Probe Deskew Fixture
‡Platform/Cable Assembly Mounting Clip
‡Probe Cable Clamp
1 each
1 each
1 each
1 each
WL-PLINK-CASE or WL-PBUS2
1 each
1 each
1 each
1 each
2 each
1 each
1 each*
1 each
1 each
1 each
1 each
2 each
1 each
1 each
PACC-MS001
PCF200
1 each
1 each
PK600ST-4 includes clips and clamps
PK600ST-4 includes clips and clamps
SAC-03
921081-00 (WL-PLINK-CASE) or
921079-00 (WL-PBUS-CASE)
921083-00
921078-00
SAC-01A
Dx10-QL, Dx20-QL
QL-SI-1Pack
2 each
1 each
‡Deluxe Soft Carrying Case
‡Foam Insert for Deluxe Case
‡Protective Storage Case
‡Plastic Tray for Storage Case
Soft Accessory Case
QuickLink Adapter
QuickLink Solder-In Lead
HiTemp Solder-In Lead
HiTemp Cable
1 each
1 each
1 each*
1 each*
1 each
1 each
1 each
1 each
1 each
3 each
1 each
1 matched
set
Dx10-SI-HiTemp, Dx20-SI-HiTemp
Dx10-Cable-HiTemp,
Dx20-Cable-HiTemp
See Ordering Information
Calibration Certificate
Recommended Accessories
Deskew Test Fixture
Cascade Microtech EZ-Probe Positioner
TF-DSQ
EZ PROBE
6
* Not Included in WL-PBUS2
SPECIFICATIONS
D610-A-PB2,
D620-A-PB2,
D620-A-PL
D410-A-PB2
D420-A-PB2
D600A-AT-PB2, D400A-AT-PB2
D600A-AT-PL
D610-A-PL
Bandwidth*
Dx10-SI, Dx10-QL-SI
and Dx10-PT Tips
6 GHz
Dx20-SI, Dx20-QL-SI
and Dx20-PT Tips
6 GHz
Dx10-SI, Dx10-QL-SI,
Dx10-HiTemp, Dx10-QC
and Dx10-PT Tips
4 GHz
Dx20-SI, Dx20-QL-SI,
Dx20-HiTemp, Dx20-QC
and Dx20-PT Tips
4 GHz
6 GHz
4 GHz
(Probe only, guaranteed)
(System bandwidth, typical)
Dx10-HiTemp
Dx20-HiTemp
5 GHz
5 GHz
Dx10-SP Tip
Dx20-SP Tip
3 GHz
3 GHz
Dx10-QC Tip
Dx20-QC Tip
4 GHz
4 GHz
Dx10-SP Tip
Dx20-SP Tip
3 GHz
3 GHz
Rise Time* (10–90%)
Dx10-SI, Dx10-QL-SI
and Dx10-PT Tips
75 ps (typical)
Dx20-SI, Dx20-QL-SI
and Dx20-PT Tips
75 ps (typical)
Dx10-SI, Dx10-QL-SI,
Dx10-HiTemp,
Dx20-SI, Dx20-QL-SI,
Dx20-HiTemp,
<75 ps (typical)
56 ps (typical)
<74 nV/√Hz
<112 ps (typical)
84 ps (typical)
<74 nV/√Hz
and Dx10-PT Tips
112 ps (typical)
and Dx20-PT Tips
112 ps (typical)
Dx10-HiTemp
Dx20-HiTemp
90 ps (typical)
90 ps (typical)
Dx10-QC Tip
Dx20-QC Tip
122.5 ps (typical)
122.5 ps (typical)
Dx10-QC Tip
Dx20-QC Tip
122.5 ps (typical)
122.5 ps (typical)
Dx10-SP Tip
Dx20-SP Tip
150 ps (typical)
150 ps (typical)
Dx10-SP Tip
Dx20-SP Tip
150 ps (typical)
150 ps (typical)
Rise Time* (20–80%)
Dx10-SI, Dx10-QL-SI
and Dx10-PT Tips
56 ps (typical)
Dx20-SI, Dx20-QL-SI
and Dx20-PT Tips
56 ps (typical)
Dx10-SI, Dx10-QL-SI,
Dx10-HiTemp,
Dx20-SI, Dx20-QL-SI,
Dx20-HiTemp,
and Dx10-PT Tips
84 ps (typical)
and Dx20-PT Tips
84 ps (typical)
Dx10-HiTemp
Dx20-HiTemp
67.5 ps (typical)
67.5 ps (typical)
Dx10-QC Tip
Dx20-QC Tip
92 ps (typical)
92 ps (typical)
Dx10-QC Tip
Dx20-QC Tip
92 ps (typical)
92 ps (typical)
Dx10-SP Tip
Dx20-SP Tip
113 ps (typical)
113 ps (typical)
Dx10-SP Tip
Dx20-SP Tip
113 ps (typical)
113 ps (typical)
Noise (System)
Input
<36 nV/√Hz
<61 nV/√Hz
<36 nV/√Hz
<67 nV/√Hz
(2.8 mV ) (typical)
rms
(4.8 mV ) (typical)
rms
(2.3 mV ) (typical)
rms
(4.3 mV ) (typical)
rms
(5.8 mV ) (typical) (4.7 mV ) (typical)
rms rms
Referred to input,
6 GHz bandwidth
Referred to input,
6 GHz bandwidth
Referred to input,
4 GHz bandwidth
Referred to input,
4 GHz bandwidth
Referred to input,
Referred to input,
6 GHz bandwidth
4 GHz bandwidth
Input Dynamic Range
(Nominal)
2.5V , ±1.25V
pk-pk
5V
, ±2.5V
pk-pk
2.5V
, ±1.25V
pk-pk
5V
, ±2.5V
pk-pk
4.8V
pk-pk
, ±2.4V
Input Common Mode Voltage
Range (Nominal)
Input Offset Voltage Range
Non-destructive
Input Range (Nominal)
Attenuation
±4 V
±2.4 Vmax
n/a
±3 V Differential (nominal)
±20 V
±18 V
1.7X / 1.0X (nominal)
3.2X / 1.9X (nominal)
200 kΩ Differential
50 kΩ Common Mode
1.7X / 1.0X (nominal)
3.2X / 1.9X (nominal)
2.5X
DC Input Resistance
(Nominal)
4 kΩ Differential
1 kΩ Common Mode
Impedance
(Zmin, typical)
Dx10-SI, Dx10-QL-SI,
and Dx10-HiTemp
Dx20-SI, Dx20-QL-SI,
Dx10-SI, Dx10-QL-SI,
Dx20-SI, Dx20-QL-SI,
and Dx20-HiTemp
>200 Ω Differential >450 Ω Differential
through entire
and Dx20-HiTemp
and Dx10-HiTemp
†
†
†
†
>175 Ω Differential
>250 Ω Differential
>200 Ω Differential
>350 Ω Differential
frequency range
Dx10-PT Tip
Dx20-PT Tip
Dx10-PT Tip
Dx20-PT Tip
†
†
†
†
>175 Ω Differential
>175 Ω Differential
>175 Ω Differential
>175 Ω Differential
Dx10-QC Tip
Dx20-QC Tip
Dx10-QC Tip
Dx20-QC Tip
†
†
†
†
>125 Ω Differential
>125 Ω Differential
>100 Ω Differential
>100 Ω Differential
Dx10-SP Tip
Dx20-SP Tip
Dx10-SP Tip
Dx20-SP Tip
†
†
†
†
>40 Ω Differential
>40 Ω Differential
>40 Ω Differential
>40 Ω Differential
Impedance
(Mid-band, typical)
Dx10-SI, Dx10-QL-SI,
and Dx10-HiTemp
275 Ω at 3 GHz,
Dx20-SI, Dx20-QL-SI,
and Dx20-HiTemp
475 Ω at 3 GHz,
Dx10-SI, Dx10-QL-SI,
and Dx10-HiTemp
400 Ω at 2 GHz,
Dx20-SI, Dx20-QL-SI,
and Dx20-HiTemp
700 Ω at 2 GHz,
650 Ω at 3 GHz,
200 Ω at 6 GHz
(Differential)
1000 Ω at 2 GHz,
450 Ω at 4 GHz
(Differential)
175 Ω at 6 GHz
250 Ω at 6 GHz
200 Ω at 4 GHz
350 Ω at 4 GHz
Dx10-PT Tip
200 Ω at 3 GHz,
200 Ω at 6 GHz
Dx20-PT Tip
200 Ω at 3 GHz,
200 Ω at 6 GHz
Dx10-PT Tip
275 Ω at 2 GHz,
175 Ω at 4 GHz
Dx20-PT Tip
275 Ω at 2 GHz,
175 Ω at 4 GHz
Dx10-QC Tip
125 Ω at 3 GHz,
125 Ω at 6 GHz
Dx20-QC Tip
125 Ω at 3 GHz,
200 Ω at 6 GHz
Dx10-QC Tip
150 Ω at 2 GHz,
125 Ω at 4 GHz
Dx20-QC Tip
150 Ω at 2 GHz,
150 Ω at 4 GHz
Dx10-SP Tip
40 Ω at 3 GHz,
100 Ω at 6 GHz
Dx20-SP Tip
40 Ω at 3 GHz,
175 Ω at 6 GHz
Dx10-SP Tip
75 Ω at 2 GHz,
15 Ω at 4 GHz
Dx20-SP Tip
75 Ω at 2 GHz,
15 Ω at 4 GHz
CMRR (Typical)
30 dB DC to 10 MHz
30 dB DC to 10 MHz
>40 dB DC to 1 GHz
>30 dB 1 GHz to
3 GHz
>40 dB DC to 1 GHz
>30 dB 1 GHz to
3 GHz
26 dB 10 MHz to 6 GHz
26 dB 10 MHz to 4 GHz
>20 dB to 6 GHz
>20 dB 3 GHz to
4 GHz
Environmental
Temperature
Humidity
Operating: 0 °C to 40 °C; Non-operating: -40 °C to 70 °C
Operating: 5% to 80% RH (non-condensing), 50% RH above 30 °C
Non-operating: 5% to 95% RH (non-condensing), 75% RH above 30 °C and 45% RH above 40 °C
2 kV (typical), 100 pF, 300 Ω HBM
ESD Tolerance
Dimensions
Dx10-PT/Dx20-PT Positioner
Tip and Dx00A-AT Browser
Dx10-SI/Dx20-SI
0 to 3.5 mm (0 to 0.14”), 305 μm (0.012”) diameter
0 to 3.0 mm (0 to 0.12”), 75 μm diameter
0.55 mm (0.022”) Z-axis compliance
2 mm Z-axis compliance
0 to 11 mm (0 to 0.43”) tip spread at circuit connection
NA
Dx10-QC/Dx20-QC Tips
Cable Length
1.3 m (4 ft. 3 in) for both WL-PLINK and WL-PBUS2
* All Bandwidth and Rise Time measurements are made with an oscilloscope bandwidth greater or equal to the probe bandwidth
†
Through entire frequency range
ORDERING INFORMATION
Product Description
Product Code
Product Description
Product Code
Complete Differential Probes
Accessories
4 GHz ProBus2 Differential Probe with Dx10-SI Solder-In Tip (Qty. 1),
Dx10-SP Square Pin (Qty. 1), and Dx10-QC Quick Connect (Qty. 1)
4 GHz ProLink Differential Probe with Dx10-SI Solder-In Tip (Qty. 1),
Dx10-SP Square Pin (Qty. 1), and Dx10-QC Quick Connect (Qty. 1)
4 GHz ProBus2 Differential Probe with Dx20-SI Solder-In Tip (Qty. 1),
Dx20-SP Square Pin (Qty. 1), and Dx20-QC Quick Connect (Qty. 1)
4 GHz ProLink Differential Probe with Dx20-SI Solder-In Tip (Qty. 1),
Dx20-SP Square Pin (Qty. 1), and Dx20-QC Quick Connect (Qty. 1)
6 GHz ProBus2 Differential Probe with Dx10-SI Solder-In Tip (Qty. 1),
Dx10-SP Square Pin (Qty. 1), and Dx10-QC Quick Connect (Qty. 1)
6 GHz ProLink Differential Probe with Dx10-SI Solder-In Tip (Qty. 1),
Dx10-SP Square Pin (Qty. 1), and Dx10-QC Quick Connect (Qty. 1)
6 GHz ProBus2 Differential Probe with Dx20-SI Solder-In Tip (Qty. 1),
Dx20-SP Square Pin (Qty. 1), and Dx20-QC Quick Connect (Qty. 1)
6 GHz ProLink Differential Probe with Dx20-SI Solder-In Tip (Qty. 1),
Dx20-SP Square Pin (Qty. 1), and Dx20-QC Quick Connect (Qty. 1)
4 GHz ProBus2 Differential Probe with Adjustable Tip
D410-A-PB2
D410-A-PL
D420-A-PB2
D420-A-PL
D610-A-PB2
D610-A-PL
D620-A-PB2
D620-A-PL
Cascade Microtech EZ-Probe Positioner
Probe Deskew and Calibration Test Fixture
EZ PROBE
TF-DSQ
Calibration Options
NIST Calibration for D410-A. Includes test data.
NIST Calibration for D420-A. Includes test data.
NIST Calibration for D610-A. Includes test data.
NIST Calibration for D620-A. Includes test data.
NIST Calibration for D400A-AT. Includes test data.
NIST Calibration for D600A-AT. Includes test data.
D410-A-CCNIST
D420-A-CCNIST
D610-A-CCNIST
D620-A-CCNIST
D400A-AT-CCNIST
D600A-AT-CCNIST
Replacement Parts
Single replacement QuickLink Solder-In Tip
9-pack of replacement QuickLink Solder-In Tip
Replacement Dx10-SI 4 & 6 GHz Solder-In Lead with
Qty. 5 Spare Resistors.
QL-SI-1Pack
QL-SI-9Pack
Dx10-SI
D400A-AT-PB2
D600A-AT-PB2
D600A-AT-PL
Replacement Dx20-SI 4 & 6 GHz Solder-In Lead with
Qty. 5 Spare Resistors.
Dx20-SI
6 GHz ProBus2 Differential Probe with Adjustable Tip
6 GHz ProLink Differential Probe with Adjustable Tip
Replacement Dx10-QC 4 & 6 GHz Quick Connect Lead
Replacement Dx20-QC 4 & 6 GHz Quick Connect Lead
Replacement Dx10-SP 4 & 6 GHz Square Pin Lead
Replacement Dx20-SP 4 & 6 GHz Square Pin Lead
Replacement SI Resistor Kit for Dx10/Dx20 - Kit of 20
Replacement QC Resistor Kit for Dx10/Dx20 - 2 kits of 20
Qty. 4 Replacement Pogo Pin Tips and Qty. 2
Replacement Sockets for Dx10-PT and
Dx20-PT Adjustable Positioner Tips.
Replacement Probe Tip Holder Kit
Replacement Platform/Cable Assembly Mounting Kit
Quantity 1 Package of Black Adhesive Pads (10/pkg) and
Quantity 1 Package of White Adhesive Pads (10/pkg)
Quantity 1 Package of Adhesive Probe Connection Guides
(200 individual guides/package)
Dx10-QC
Dx20-QC
Dx10-SP
Dx20-SP
PKxx0-SI
Positioner Tip (Browser) Kits
WaveLink Dx10-PT Adjustable Positioner Tip Kit.
For use with Dx10 amplifiers.
WaveLink Dx20-PT Adjustable Positioner Tip Kit.
For use with Dx20 amplifiers.
Dx10-PT-KIT
Dx20-PT-KIT
PKxx0-QC
Dxx0-PT-TIPS
QuickLink Solder-In Tip Set
PK600ST-3
PK600ST-4
Dxx0-PT-TAPE
QuickLink Solder-In starter pack for use with Dx10 amplifier.
Dx10-QL-3SI
Dx20-QL-3SI
Includes one QuickLink adapter and three QL-SI tips.
QuickLink Solder-In starter pack for use with Dx20 amplifier.
Includes one QuickLink adapter and three QL-SI tips.
Dxx0-PT-GUIDES
Hi-Temp Leads
WaveLink Temperature Extension Cables for Dx10.
Includes set of Matched 30" High Temperature Cables (Qty. 1)
and solder-in lead set (Qty. 1)
WaveLink Temperature Extension Cables for Dx20.
Includes set of Matched 30" High Temperature Cables (Qty. 1)
and solder-in lead set (Qty. 1)
Dx10-HiTemp
Dx20-HiTemp
Customer Service
Teledyne LeCroy oscilloscopes and probes are designed, built, and tested to
ensure high reliability. In the unlikely event you experience difficulties, our digital
oscilloscopes are fully warranted for three years and our probes are warranted for
one year.
This warranty includes:
• No charge for return shipping
• Long-term 7-year support
• Upgrade to latest software at no charge
1-800-5-LeCroy
teledynelecroy.com
Local sales offices are located throughout the world.
Visit our website to find the most convenient location.
© 2020 by Teledyne LeCroy, Inc. All rights reserved. Specifications, prices, availability, and delivery subject to change
without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
wavelinklowspeed-ds-19oct20
厂商 型号 描述 页数 下载

GREATECS

 		DX1 SPST标准DIP开关[ SPST Standard DIP Switches ] 1 页

HRS

 		DX10-100P-CP3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-CR2A DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-CR3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100P-LNA DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CP3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CR2A DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-CR3 DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100S-LNA DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

HRS

 		DX10-100SE DX系列高密度I / O连接器[ DX SERIES HIGH-DENSITY I/O CONNECTORS ] 34 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.187309s
