LZ0P3610

型号:

LZ0P3610

描述:

四分之一式内置镜头彩色CCD传感器面积与270的k个像素[ 1/4-type Built-in Lens Color CCD Area Sensors with 270 k Pixels ]

品牌:

SHARP[ SHARP ELECTRIONIC COMPONENTS ]

页数:

14 页

PDF大小:

127 K

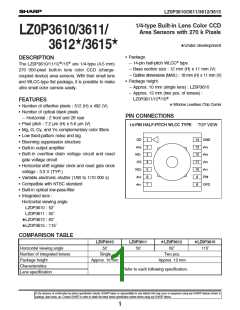

LZ0P3610/3611/3612/3615
1/4-type Built-in Lens Color CCD
Area Sensors with 270 k Pixels
LZ0P3610/3611/
3612/3615∫
∫Under development
• Package
DESCRIPTION
– 14-pin half-pitch WLCC* type
The LZ0P3610/11/12/15are 1/4-type (4.5 mm)
270 000-pixel built-in lens color CCD (charge-
coupled device) area sensors. With their small lens
and WLCC-type flat package, it is possible to make
ultra small color camera easily.
– Base section size : 12 mm (H) x 11 mm (V)
Outline dimensions (MAX.) : 18 mm (H) x 11 mm (V)
• Package height
– Approx. 10 mm (single lens) : LZ0P3610
– Approx. 13 mm (two pcs. of lenses) :
LZ0P3611/12/15∫
FEATURES
* Window Leadless Chip Carrier
• Number of effective pixels : 512 (H) x 492 (V)
• Number of optical black pixels
– Horizontal : 2 front and 28 rear
• Pixel pitch : 7.2 µm (H) x 5.6 µm (V)
• Mg, G, Cy, and Ye complementary color filters
• Low fixed-pattern noise and lag
• Blooming suppression structure
• Built-in output amplifier
PIN CONNECTIONS
14-PIN HALF-PITCH WLCC TYPE
TOP VIEW
OD
ØRS
NC1
OS
1
2
3
4
5
6
7
14 GND
13 ØV4
12 ØV3
11 ØV2
10 ØV1
• Built-in overflow drain voltage circuit and reset
gate voltage circuit
• Horizontal shift register clock and reset gate clock
voltage : 3.3 V (TYP.)
• Variable electronic shutter (1/60 to 1/10 000 s)
• Compatible with NTSC standard
• Built-in optical low-pass-filter
• Integrated lens :
NC2
ØH2
ØH1
9
8
PW
OFD
Horizontal viewing angle
LZ0P3610 : 52˚
LZ0P3611 : 50˚
∫LZ0P3612 : 62˚
∫LZ0P3615 : 115˚
COMPARISON TABLE
LZ0P3610
52˚
Single
LZ0P3611
∫LZ0P3612
62˚
Two pcs.
∫LZ0P3615
Horizontal viewing angle
Number of integrated lenses
Package height
50˚
115˚
Approx. 10 mm
Approx. 13 mm
Characteristics
Lens specification
Refer to each following specification.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
LZ0P3610/3611/3612/3615
PIN DESCRIPTION
SYMBOL
PIN NAME
Output transistor drain
OD
OS
Output signals
ØRS
Reset transistor clock
Vertical shift register clock
Horizontal shift register clock
Overflow drain
ØV1, ØV2, ØV3, ØV4
ØH1, ØH2
OFD
PW
P-well
GND
Ground
NC1, NC2
No connection
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Output transistor drain voltage
Overflow drain voltage
(TA = +25 ˚C)
UNIT NOTE
V
SYMBOL
VOD
VOFD
VØRS
VØV
RATING
0 to +18
Internal output
Internal output
–10.5 to +17.5
–0.3 to +12
–28 to 0
0 to +15
–20 to +70
–10 to +60
V
V
1
2
Reset gate clock voltage
Vertical shift register clock voltage
Horizontal shift register clock voltage
Voltage difference between P-well and vertical clock
Voltage difference between vertical clocks
Storage temperature
V
V
V
VØH
VPW-VØV
VØV-VØV
TSTG
V
3
˚C
˚C
Ambient operating temperature
TOPR
NOTES :
1. Do not connect to DC voltage directly. When OFD is connected to GND, connect VOD to GND. Overflow drain clock is
applied below 26 Vp-p.
2. Do not connect to DC voltage directly. When ØRS is connected to GND, connect VOD to GND. Reset gate clock is
applied below 8 Vp-p.
3. When clock width is below 10 µs, and clock duty factor is below 0.1%, voltage difference between vertical clocks will be
below 27 V.
2
LZ0P3610/3611/3612/3615
TYP. MAX. UNIT NOTE
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Ambient operating temperature
Output transistor drain voltage
Overflow drain clock p-p level
Ground
SYMBOL
MIN.
TOPR
VOD
VØOFD
25.0
14.55 15.0 15.45
˚C
V
21.5
23.5
V
V
V
1
2
GND
0.0
P-well voltage
VPW
–9.0
–8.5
VØVL
–7.5
VØV1L, VØV2L
VØV3L, VØV4L
VØV1I, VØV2I
VØV3I, VØV4I
VØV1H, VØV3H
VØH1L, VØH2L
VØH1H, VØH2H
VØRS
LOW level
–8.0
0.0
V
V
Vertical shift
register clock
INTERMEDIATE level
HIGH level
LOW level
HIGH level
14.55 15.0 15.45
V
V
V
V
Horizontal shift
register clock
–0.05
3.0
3.0
0.0
3.3
3.3
0.05
5.25
5.25
Reset gate clock p-p level
1
fØV1, fØV2
fØV3, fØV4
fØH1, fØH2
fØRS
Vertical shift register clock frequency
15.73
kHz
Horizontal shift register clock frequency
Reset gate clock frequency
9.53
9.53
MHz
MHz
NOTES :
• Connect NC1 and NC2 to GND directly or through a capacitor larger than 0.047 µF.
1. Use the circuit parameter indicated in "SYSTEM CONFIGURATION EXAMPLE", and do not connect to DC voltage directly.
2. VPW is set below VØVL that is low level of vertical shift register clock, or is used with the same power supply that is connected
to VL of V driver IC.
* To apply power, first connect GND and then turn on VOD. After turning on VOD, turn on PW first and then turn on other powers
and pulses. Do not connect the device to or disconnect it from the plug socket while power is being applied.
3
LZ0P3610/3611/3612/3615
CHARACTERISTICS FOR LZ0P3610 (Drive method : Field accumulation)
(TA
: +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS"
.
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
VO
VSAT
R
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
1
2
3
4
5
6
7
700
400
250
150
50
500
300
200
65
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
IOD
4.0
NOTES :
1. The average output voltage in the central area (H/10,
V/10) under uniform illumination.
can be distinguished on the B/W video monitor.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at video output).
Vce : Output voltage at center of the image (at video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage in the central area (H/10,
V/10) under 10 times exposure of the standard exposure
conditions.
3. The average output voltage in the central area (H/10,
V/10) when a 1 000 lux light source with a white board
of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
LENS SPECIFICATION FOR LZ0P3610
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
Single (non-spherical, plastic)
4.0 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 52˚, V : 40˚, Diagonal : 65˚ [TYP. : reference]
≤ –3.2%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
4
LZ0P3610/3611/3612/3615
CHARACTERISTICS FOR LZ0P3611 (Drive method : Field accumulation)
(TA
: +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS"
.
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
VO
VSAT
R
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
1
2
3
4
5
6
7
700
400
250
150
40
500
300
200
60
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
IOD
4.0
NOTES :
1. The average output voltage in the central area (H/10,
V/10) under uniform illumination.
can be distinguished on the B/W video monitor.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at video output).
Vce : Output voltage at center of the image (at video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage in the central area (H/10,
V/10) under 10 times exposure of the standard exposure
conditions.
3. The average output voltage in the central area (H/10,
V/10) when a 1 000 lux light source with a white board
of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
LENS SPECIFICATION FOR LZ0P3611
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
2 pcs. (non-spherical, plastic)
3.9 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 50˚, V : 38˚, Diagonal : 60˚ [TYP. : reference]
≤ –1.0%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
5
LZ0P3610/3611/3612/3615
∫Under development
CHARACTERISTICS FOR LZ0P3612(Drive method : Field accumulation)
(TA : +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity
SYMBOL
VO
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
1
2
3
4
5
6
7
VSAT
R
700
400
250
150
500
300
200
50
mV
Resolution (at center)
Resolution (at corner)
Shading
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
IOD
4.0
NOTES :
1. The average output voltage in the central area (H/10,
V/10) under uniform illumination.
can be distinguished on the B/W video monitor.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at video output).
Vce : Output voltage at center of the image (at video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage in the central area (H/10,
V/10) under 10 times exposure of the standard exposure
conditions.
3. The average output voltage in the central area (H/10,
V/10) when a 1 000 lux light source with a white board
of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
LENS SPECIFICATION FOR LZ0P3612∫
PARAMETER
SPECIFICATION
NOTE
Construction
Focal length
F No.
2 pcs. (non-spherical, plastic)
3.0 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 62˚, V : 49˚, Diagonal : 74˚ [TYP. : reference]
≤ –1.0%
1
2
3
∞ to 10 cm
0.00005 to 0.001 N·m
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
6
LZ0P3610/3611/3612/3615
∫Under development
CHARACTERISTICS FOR LZ0P3615(Drive method : Field accumulation)
(TA : +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity
SYMBOL
VO
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
1
2
3
4
5
6
7
VSAT
R
700
400
500
300
200
45
mV
Resolution (at center)
Resolution (at corner)
Shading
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
IOD
4.0
NOTES :
1. The average output voltage in the central area (H/10,
V/10) under uniform illumination.
can be distinguished on the B/W video monitor.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at video output).
Vce : Output voltage at center of the image (at video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage in the central area (H/10,
V/10) under 10 times exposure of the standard exposure
conditions.
3. The average output voltage in the central area (H/10,
V/10) when a 1000 lux light source with a white board of
90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
LENS SPECIFICATION FOR LZ0P3615∫
PARAMETER
SPECIFICATION
NOTE
Construction
Focal length
F No.
2 pcs. (non-spherical, plastic)
1.53 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 115˚, V : 89˚, Diagonal : 138˚ [TYP. : reference]
≤ –14%
1
2
3
∞ to 10 cm
0.00005 to 0.001 N·m
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
7
LZ0P3610/3611/3612/3615
PIXEL STRUCTURE
OPTICAL BLACK
(2 PIXELS)
OPTICAL BLACK
(28 PIXELS)
512 (H) x 492 (V)
1 pin
COLOR FILTER ARRAY
(1, 492)
(512, 492)
Mg
G
Mg
G
Mg
G
Mg
G
Mg
G
Cy Ye Cy Ye Cy
Mg Mg
Cy Ye Cy Ye Cy
Mg Mg Mg
Cy Ye Cy Ye Cy
Ye Cy Ye Cy Ye
Mg Mg Mg
Ye Cy Ye Cy Ye
Mg Mg
Ye Cy Ye Cy Ye
G
G
G
G
G
G
G
G
G
G
G
Mg
Cy Ye Cy Ye Cy
Mg Mg Mg
Cy Ye Cy Ye Cy
Mg Mg
Cy Ye Cy Ye Cy
G
Mg
G
Mg
Ye Cy Ye Cy Ye
Mg Mg
Ye Cy Ye Cy Ye
Mg Mg Mg
Ye Cy Ye Cy Ye
G
Mg
G
Mg
G
G
G
G
G
EVEN
field
G
G
G
G
G
ODD
field
(1, 1)
(512, 1)
8
LZ0P3610/3611/3612/3615
TIMING CHART
(ODD FIELD)
VERTICAL TRANSFER TIMING
Shutter speed
1/2 000 s
19
525
1
10
17
HD
VD
ØV1
ØV2
ØV3
ØV4
ØOFD
484 486 488 490 492
485 487 489 491
1
2
3
4
5
6
7
8
9
11
+
+
+
+
+
+
+
+
+
+
10 12
OS
(EVEN FIELD)
263
272
279
282
HD
VD
ØV1
ØV2
ØV3
ØV4
ØOFD
483 485 487 489 491
484 486 488 490 492
2
3
4
5
6
7
8
9
10
+
+
+
+
+
+
+
+
+
+
1
11
OS
HORIZONTAL TRANSFER TIMING
606, 1
60
HD
ØH1
ØH2
ØRS
OS
OB (2)
OUTPUT (512) 1πππππππ
512
OB (28)
29
49
ØV1
ØV2
ØV3
59
39
24
54
34
64
ØV4
62
72
ØOFD
9
LZ0P3610/3611/3612/3615
READOUT TIMING
(ODD FIELD)
1
60
606, 1
60
HD
242
290
29 49
39 59
29 49
39 59
ØV1
161
449
ØV2
ØV3
290
338
24 54
34
180
54
64
34
64
ØV4
(EVEN FIELD)
1
60
606, 1
60
HD
242
290
290
29 49
39 59
ØV1
ØV2
161
59
338
24 54
34
180
54
64
ØV3
ØV4
450
64
10
LZ0P3610/3611/3612/3615
SYSTEM CONFIGURATION EXAMPLE
OD
ØRS
NC1
OS
GND
ØV4
ØV3
ØV2
NC2
ØH2
ØH1
ØV1
PW
OFD
+
+
POFD
VMb
VL
VOFDH
VH3BX
OFDX
V2X
V2
V4
V1X
NC
V3B
V3A
V1B
V1A
VMa
VH
VH1AX
V3X
VDD
+
GND
VH3AX
V4X
VH1BX
+
11
PACKAGES FOR CCD AND CMOS DEVICES
PACKAGES
(Unit : mm)
14 WLCC TYPE
+0
–0.2
18
14
12
Approx. 10
5.0
+0
–0.05
0.8
±0.1
+0
1.27
0.64
–0.1
±0.1
2.0
±0.1
4-90˚
No.1 index
+0
–0.05
2-C0.2
+0
+0
–0.05
–0.1
±0.1
2-Ø0.8
No.1 index
Height 0.5
1.0
Ø11.0
+0
–0.1
±0.05
Ø12.0
11.0
¿Applicable models¡
LZ0P3610/LZ0P3620
±0.05
11.0
14 WLCC TYPE
+0
–0.2
+0
–0.05
0.8
18
14
Approx.12-13
5.0
±0.1
+0
1.27
0.64
–0.1
±0.1
3.0
±0.1
12
4-90˚
No.1 index
+0
–0.05
2-C0.2
+0
2-Ø0.8
+0
–0.05
–0.05
No.1 index
Height 0.5
±0.1
2.0
Ø11.0
Ø12.0
+0
–0.05
±0.05
11
¿Applicable models¡
LZ0P3611/12/15,
LZ0P3621/22/25,
LZ0P3641/42/45/46
±0.05
11.0
12
PRECAUTIONS FOR BUILT-IN LENS CCD AREA SENSORS
PRECAUTIONS FOR BUILT-IN LENS CCD
AREA SENSORS
1. Package Breakage
2. Electrostatic Damage
In order to prevent the package, the lens holder,
and the lens from being broken, follow the
instructions below :
As compared with general MOS-LSI, CCD has
lower ESD. Therefore, take the following anti-static
measures when handling the CCD :
1) The CCD is a precise optical component and
the package-base material is ceramic.
Therefore,
1) Always discharge static electricity by grounding
the human body and the instrument to be used.
To ground the human body, provide resistance
of about 1 M$ between the human body and
the ground to be on the safe side.
2) When directly handling the device with the
fingers, hold the lens holder and do not touch
the lead.
3) To avoid generating static electricity,
a. do not scrub the device with cloth or plastic.
b. do not attach any tape or labels.
c. do not clean the device with dust-cleaning
tape.
4) When storing or transporting the device, put it in
a container of conductive material.
øTake care not to drop the device when
mounting, handling, or transporting.
øAvoid giving a shock to the package.
Especially when leads are fixed to the socket
or the circuit board, a small shock could
break the package more easily than when the
package isn’t fixed.
2) When adjusting the focus, screw the lens holder
to the circuit board before soldering the leads.
At that time, make sure to use a circuit board
with plenty of strength, and to avoid the
package and the lens holder from being broken,
the following screw and clamp torque are
recommended.
3. Dust and Contamination
ø Recommended mounting screw :
Ø1.7 tapping screw (B-tight type),
Length, L = the thickness of the circuit board
+ 5 mm
Dust or contamination on the surface of the lens
and the inside of the lens holder could deteriorate
the output characteristics or cause a scar. In order
to minimize dust or contamination on the device,
take the following precautions :
1) Do not remove the lens from the body.
Especially when adjusting macro, be careful not
to remove the lens by turning it counter-
clockwise too much.
2) Do not touch the surface of the lens with the
fingers. If dust or contamination gets on the
surface of the lens, the following cleaning
method is recommended :
ø Recommended clamp torque : 0.012 N·m
[however, when the thickness of the circuit
board is thinner than t = 2.0 mm]
3) If any damage or breakage occurs on the
surface of the lens, its characteristics could
deteriorate.
Therefore,
ø Do not hit the lens.
ø Do not give a shock large enough to cause
distortion.
ø Do not scrub or scratch the surface of the
lens.
ø Handle the built-in lens CCD in a clean
environment such as a cleaned booth. (The
cleanliness level should be, if possible, class
1 000 at least.)
– Even a soft cloth or applicator, if dry, could
cause dust to scratch the lens.
13
PRECAUTIONS FOR BUILT-IN LENS CCD AREA SENSORS
ø Dust from static electricity should be blown
ø Make sure there is no dust or contamination
on the lens and screw it on the lens holder.
off with an ionized air blower. For anti-
electrostatic measures, however, ground all
the leads on the device before blowing off
the dust.
4. Other
1) Soldering should be manually performed under
the following conditions :
ø The contamination on the surface of the lens
should be wiped off with a clean applicator
soaked in isopropyl alcohol. Wipe slowly and
gently in one direction only.
– Frequently replace the applicator and do not
use the same applicator to clean more than
one device.
ø Use ESD-measured soldering iron
ø The conditions of the soldering time in which
the soldering iron touches the package,
differs by the shape and the temperature of
the iron end. Refer to the table below and
take great care in soldering.
THE SHAPE OF
THE TEMPERATURE OF
THE IRON END
SOLDERING TIME
THE IRON END
R0.5
Time touching the package should be less than 40 seconds
Below 350 ˚C
17
17
(Unit : mm)
(Unit : mm)
Time touching the package should be less than 25 seconds
Time touching the package should be less than 35 seconds
Below 300 ˚C
Below 275 ˚C
6.5
0.5
– In case where the soldering may exceed the
time mentioned above, resume the work
after the device returns to normal
temperature.
2) There is no guarantee of the performance of
the device which has been removed or
resoldered after being soldered once under the
conditions mentioned above.
ø Do not put too much force onto the lens and
the lens holder while soldering.
ø Be careful not to let the soldering iron touch
the lens holder.
– Soldering can be quickly/neatly done by
laying the soldering iron so it lightly touches
the border between the package and the
circuit board and sliding it in sideways.
– In case there seems to be an inferior device,
consult with our sales office before removing
it.
3) Avoid using or storing the CCD at high
temperature or high humidity as it is a precise
optical component. Do not give a mechanical
shock to the CCD.
4) Do not expose the device to strong light. For
the color device, long exposure to strong light
will fade the color of the color filters.
14
厂商 型号 描述 页数 下载

APITECH

LZ0402B105MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402B105MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y155MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y155MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y205MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y205MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Z824MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0603A103MCNAB [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

APITECH

LZ0603A103MCNAT [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

APITECH

LZ0603A104MCNAB [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.187832s
