LZ0P3641

型号:

LZ0P3641

描述:

四分之一式内置镜头彩色CCD传感器面积与350的k个像素[ 1/4-type Built-in Lens Color CCD Area Sensors with 350 k Pixels ]

品牌:

SHARP[ SHARP ELECTRIONIC COMPONENTS ]

页数:

13 页

PDF大小:

132 K

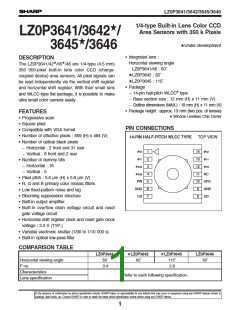

LZ0P3641/3642/3645/3646
1/4-type Built-in Lens Color CCD
Area Sensors with 350 k Pixels
LZ0P3641/3642/
3645/3646
∫Under development
• Integrated lens :
Horizontal viewing angle
LZ0P3641/46 : 50˚
∫LZ0P3642 : 62˚
∫LZ0P3645 : 115˚
DESCRIPTION
The LZ0P3641/42/45/46 are 1/4-type (4.5 mm)
350 000-pixel built-in lens color CCD (charge-
coupled device) area sensors. All pixel signals can
be read independently via the vertical shift register
and horizontal shift register. With their small lens
and WLCC-type flat package, it is possible to make
ultra small color camera easily.
• Package
– 14-pin half-pitch WLCC* type
– Base section size : 12 mm (H) x 11 mm (V)
Outline dimensions (MAX.) : 18 mm (H) x 11 mm (V)
• Package height : approx. 13 mm (two pcs. of lenses)
* Window Leadless Chip Carrier
FEATURES
• Progressive scan
• Square pixel
PIN CONNECTIONS
• Compatible with VGA format
• Number of effective pixels : 659 (H) x 494 (V)
• Number of optical black pixels
– Horizontal : 2 front and 31 rear
– Vertical : 8 front and 2 rear
• Number of dummy bits
14-PIN HALF-PITCH WLCC TYPE
TOP VIEW
ØV2
ØV1
1
2
3
4
5
6
7
14 ØH2
13 ØH1
12 ØRS
11 NC
10 OFD
– Horizontal : 16
– Vertical : 5
ØV3A
ØV3B
PW
• Pixel pitch : 5.6 µm (H) x 5.6 µm (V)
• R, G and B primary color mosaic filters
• Low fixed-pattern noise and lag
• Blooming suppression structure
• Built-in output amplifier
GND
OS
9
8
GND
OD
• Built-in overflow drain voltage circuit and reset
gate voltage circuit
• Horizontal shift register clock and reset gate clock
voltage : 3.3 V (TYP.)
• Variable electronic shutter (1/30 to 1/10 000 s)
• Built-in optical low-pass-filter
COMPARISON TABLE
LZ0P3641
∫LZ0P3642
∫LZ0P3645
115˚
LZ0P3646
Horizontal viewing angle
F no.
50˚
3.4
62˚
50˚
2.8
Characteristics
Lens specification
Refer to each following specification.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
LZ0P3641/3642/3645/3646
PIN DESCRIPTION
SYMBOL
PIN NAME
Output transistor drain
OD
OS
Output signals
ØRS
Reset transistor clock
Vertical shift register clock
Horizontal shift register clock
Overflow drain
ØV1, ØV2, ØV3A, ØV3B
ØH1, ØH2
OFD
PW
P-well
GND
NC
Ground
No connection
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Output transistor drain voltage
Overflow drain voltage
(TA = +25 ˚C)
UNIT NOTE
V
SYMBOL
VOD
VOFD
VØRS
VØV
RATING
0 to +18
Internal output
Internal output
–11.5 to +17.5
–0.3 to +12
–29 to 0
0 to +15
–20 to +70
–10 to +60
V
V
1
2
Reset gate clock voltage
Vertical shift register clock voltage
Horizontal shift register clock voltage
Voltage difference between P-well and vertical clock
Voltage difference between vertical clocks
Storage temperature
V
V
V
VØH
VPW-VØV
VØV-VØV
TSTG
V
3
˚C
˚C
Ambient operating temperature
TOPR
NOTES :
1. Do not connect to DC voltage directly. When OFD is connected to GND, connect VOD to GND. Overflow drain clock is
applied below 27 Vp-p.
2. Do not connect to DC voltage directly. When ØRS is connected to GND, connect VOD to GND. Reset gate clock is
applied below 8 Vp-p.
3. When clock width is below 10 µs, and clock duty factor is below 0.1%, voltage difference between vertical clocks will be
below 28 V.
2
LZ0P3641/3642/3645/3646
TYP. MAX. UNIT NOTE
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Ambient operating temperature
Output transistor drain voltage
Overflow drain clock p-p level
Ground
SYMBOL
MIN.
TOPR
VOD
VØOFD
25.0
˚C
V
14.55 15.0 15.45
22.5
0.0
V
V
V
1
2
GND
P-well voltage
VPW
–10.0
VØVL
–8.5
VØV1L, VØV2L
VØV3AL, VØV3BL
VØV1I, VØV2I
VØV3AI, VØV3BI
VØV3AH, VØV3BH
VØH1L, VØH2L
VØH1H, VØH2H
VØRS
LOW level
–9.5
–9.0
0.0
V
V
Vertical shift
register clock
INTERMEDIATE level
HIGH level
LOW level
HIGH level
14.55 15.0 15.45
V
V
V
V
Horizontal shift
register clock
–0.05
3.0
3.0
0.0
3.3
3.3
0.05
5.5
5.5
Reset gate clock p-p level
1
fØV1, fØV2
fØV3A, fØV3B
fØH1, fØH2
fØRS
Vertical shift register clock frequency
15.73
kHz
Horizontal shift register clock frequency
Reset gate clock frequency
12.27
12.27
MHz
MHz
NOTES :
1. Use the circuit parameter indicated in "SYSTEM CONFIGURATION EXAMPLE", and do not connect to DC voltage directly.
2. VPW is set below VØVL that is low level of vertical shift register clock, or is used with the same power supply that is connected
to VL of V driver IC.
* To apply power, first connect GND and then turn on VOD. After turning on VOD, turn on PW first and then turn on other powers
and pulses. Do not connect the device to or disconnect it from the plug socket while power is being applied.
3
LZ0P3641/3642/3645/3646
CHARACTERISTICS FOR LZ0P3641 (1/30 s progressive scan readout mode)
(TA
: +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS"
.
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity (Green channel)
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
V
O
1
2
3
4
5
6
7
V
SAT
450
150
250
150
45
R
230
300
200
60
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
I
OD
4.0
NOTES :
1. The average output voltage of G signal in the central
area (H/10, V/10) under uniform illumination.
converted into composite video signals.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at NTSC
video output).
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage of G signal in the central
area (H/10, V/10) under 10 times exposure of the
standard exposure conditions.
3. The average output voltage of G signal in the central
area (H/10, V/10) when a 1 000 lux light source with a
white board of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
can be distinguished on the B/W video monitor when
Vce : Output voltage at center of the image (at NTSC
video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
LENS SPECIFICATION FOR LZ0P3641
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
2 pcs. (non-spherical, plastic)
3.9 mm [TYP. : reference]
3.4±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 50˚, V : 38˚, Diagonal : 60˚ [TYP. : reference]
≤ –1.0%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
4
LZ0P3641/3642/3645/3646
∫Under development
CHARACTERISTICS FOR LZ0P3642(1/30 s progressive scan readout mode)
(TA : +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity (Green channel)
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
V
O
1
2
3
4
5
6
7
V
SAT
450
150
250
150
40
R
230
300
200
55
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
I
OD
4.0
NOTES :
1. The average output voltage of G signal in the central
area (H/10, V/10) under uniform illumination.
converted into composite video signals.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at NTSC
video output).
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage of G signal in the central
area (H/10, V/10) under 10 times exposure of the
standard exposure conditions.
3. The average output voltage of G signal in the central
area (H/10, V/10) when a 1 000 lux light source with a
white board of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
can be distinguished on the B/W video monitor when
Vce : Output voltage at center of the image (at NTSC
video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
LENS SPECIFICATION FOR LZ0P3642∫
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
2 pcs. (non-spherical, plastic)
3.0 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 62˚, V : 49˚, Diagonal : 74˚ [TYP. : reference]
≤ –1.0%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
5
LZ0P3641/3642/3645/3646
∫Under development
CHARACTERISTICS FOR LZ0P3645(1/30 s progressive scan readout mode)
(TA : +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity (Green channel)
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
V
O
1
2
3
4
5
6
7
V
SAT
450
150
R
230
300
200
40
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
I
OD
4.0
NOTES :
1. The average output voltage of G signal in the central
area (H/10, V/10) under uniform illumination.
converted into composite video signals.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at NTSC
video output).
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage of G signal in the central
area (H/10, V/10) under 10 times exposure of the
standard exposure conditions.
3. The average output voltage of G signal in the central
area (H/10, V/10) when a 1 000 lux light source with a
white board of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
can be distinguished on the B/W video monitor when
Vce : Output voltage at center of the image (at NTSC
video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
LENS SPECIFICATION FOR LZ0P3645∫
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
2 pcs. (non-spherical, plastic)
1.53 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 115˚, V : 89˚, Diagonal : 138˚ [TYP. : reference]
≤ –14%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
6
LZ0P3641/3642/3645/3646
CHARACTERISTICS FOR LZ0P3646 (1/30 s progressive scan readout mode)
(TA
: +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS"
.
Color temperature of light source : 3 200 K)
PARAMETER
Standard output voltage
Saturation output voltage
Sensitivity (Green channel)
Resolution (at center)
Resolution (at corner)
Shading
SYMBOL
MIN.
TYP.
150
MAX.
UNIT
mV
mV
NOTE
V
O
1
2
3
4
5
6
7
V
SAT
450
150
250
150
45
R
230
300
200
60
mV
TV line
TV line
%
%
mA
Difference of center position
Output transistor drain current
±10
8.0
I
OD
4.0
NOTES :
1. The average output voltage of G signal in the central
area (H/10, V/10) under uniform illumination.
converted into composite video signals.
5. The resolution in the peripheral area (image height : Y =
0.8) under the conditions mentioned above.
6. Defined by the following formula at the brightness of
standard output voltage : (Vco/Vce) x 100 [%]
Vco : Output voltage at edge of the image (at NTSC
video output).
The standard exposure conditions are defined as when
VO is 150 mV.
2. The average output voltage of G signal in the central
area (H/10, V/10) under 10 times exposure of the
standard exposure conditions.
3. The average output voltage of G signal in the central
area (H/10, V/10) when a 1 000 lux light source with a
white board of 90% reflector is imaged.
4. The resolution in the central area (H/10, V/10) at which
the image of the TV resolution chart (ex. EIAJ test chart)
can be distinguished on the B/W video monitor when
Vce : Output voltage at center of the image (at NTSC
video output).
7. The difference between the center position of image and
that of the monitor. This is the ratio for the horizontal
underscanning monitor size which includes the decentering
eccentricity when turning the lens head one time.
LENS SPECIFICATION FOR LZ0P3646
PARAMETER
Construction
Focal length
F No.
SPECIFICATION
NOTE
2 pcs. (non-spherical, plastic)
3.9 mm [TYP. : reference]
2.8±5%
Viewing angle
TV distortion
Focus adjustment range
Torque of focusing
H : 50˚, V : 38˚, Diagonal : 60˚ [TYP. : reference]
≤ –1.0%
∞ to 10 cm
0.00005 to 0.001 N·m
1
2
3
NOTES :
1. TV distortion is defined by the formula, (∆y/y) x 100 [%]
at capturing rectangular pattern sized horizontal by
vertical as 4 by 3.
2. The best focus point of an object can be obtained by
turning the lens head within this range.
3. Torques which are necessary for turning the lens.
"y" is defined as the vertical height of the center of the
horizontal line.
∆y is defined as the difference between the vertical height
of the center of the horizontal line and an edge of it.
* Be careful not to remove the lens head by turning it
counterclockwise too much when adjusting macro.
∆y
y
7
LZ0P3641/3642/3645/3646
PIXEL STRUCTURE
OPTICAL BLACK
(2 PIXELS)
1 pin
OPTICAL BLACK
(2 PIXELS)
OPTICAL BLACK
(31 PIXELS)
659 (H) x 494 (V)
OPTICAL BLACK
(8 PIXELS)
COLOR FILTER ARRAY
(1, 494)
(659, 494)
G
B
G
B
G
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
G
B
G
B
G
R
G
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
R
G
R
(1, 1)
(659, 1)
8
LZ0P3641/3642/3645/3646
TIMING CHART
VERTICAL TRANSFER TIMING
525 1
HD
10
20
30
VD
ØV1
ØV2
ØV3A
ØV3B
ØOFD
492
494
OB2
OB1
D1
D3
D5
OB2
OB4
OB6
OB8
493
D2
D4
OB1 OB3
OB5
OB7
1
2
OS
HORIZONTAL TRANSFER TIMING
780,
1
78
HD
ØH1
ØH2
ØRS
35
107
OS
PRE SCAN (16)
OB (2)
πππππ659
OB (31)
OUTPUT (659) 1ππππππππππ
35
71
ØV1
ØV2
47
83
59
95
ØV3A
ØV3B
72
95
ØOFD
READOUT TIMING
HD
ØV1
ØV2
ØV3A
ØV3B
5.05 µs
39.8 µs (489 bits)
46.9 µs (576 bits)
63.5 µs (780 bits)
(62 bits)
9
LZ0P3641/3642/3645/3646
SYSTEM CONFIGURATION EXAMPLE
+
OS
OD
GND
OFD
NC
GND
PW
ØV3B
ØV3A
ØV1
ØRS
ØH1
ØV2
ØH2
+
POFD
VMb
VL
VOFDH
VH3BX
OFDX
V2X
V2
V4
V1X
NC
V3B
V3A
V1B
V1A
VMa
VH
VH1AX
V3X
VDD
+
GND
VH3AX
V4X
VH1BX
+
10
PACKAGES FOR CCD AND CMOS DEVICES
PACKAGE
(Unit : mm)
14 WLCC TYPE
+0
–0.2
+0
–0.05
0.8
18
14
Approx.12-13
5.0
±0.1
+0
1.27
0.64
–0.1
±0.1
3.0
±0.1
12
4-90˚
No.1 index
+0
–0.05
2-C0.2
+0
2-Ø0.8
+0
–0.05
–0.05
No.1 index
Height 0.5
±0.1
2.0
Ø11.0
Ø12.0
+0
–0.05
±0.05
11
¿Applicable models¡
LZ0P3611/12/15,
LZ0P3621/22/25,
LZ0P3641/42/45/46
±0.05
11.0
11
PRECAUTIONS FOR BUILT-IN LENS CCD AREA SENSORS
PRECAUTIONS FOR BUILT-IN LENS CCD
AREA SENSORS
1. Package Breakage
2. Electrostatic Damage
In order to prevent the package, the lens holder,
and the lens from being broken, follow the
instructions below :
As compared with general MOS-LSI, CCD has
lower ESD. Therefore, take the following anti-static
measures when handling the CCD :
1) The CCD is a precise optical component and
the package-base material is ceramic.
Therefore,
1) Always discharge static electricity by grounding
the human body and the instrument to be used.
To ground the human body, provide resistance
of about 1 M$ between the human body and
the ground to be on the safe side.
2) When directly handling the device with the
fingers, hold the lens holder and do not touch
the lead.
3) To avoid generating static electricity,
a. do not scrub the device with cloth or plastic.
b. do not attach any tape or labels.
c. do not clean the device with dust-cleaning
tape.
4) When storing or transporting the device, put it in
a container of conductive material.
øTake care not to drop the device when
mounting, handling, or transporting.
øAvoid giving a shock to the package.
Especially when leads are fixed to the socket
or the circuit board, a small shock could
break the package more easily than when the
package isn’t fixed.
2) When adjusting the focus, screw the lens holder
to the circuit board before soldering the leads.
At that time, make sure to use a circuit board
with plenty of strength, and to avoid the
package and the lens holder from being broken,
the following screw and clamp torque are
recommended.
3. Dust and Contamination
ø Recommended mounting screw :
Ø1.7 tapping screw (B-tight type),
Length, L = the thickness of the circuit board
+ 5 mm
Dust or contamination on the surface of the lens
and the inside of the lens holder could deteriorate
the output characteristics or cause a scar. In order
to minimize dust or contamination on the device,
take the following precautions :
1) Do not remove the lens from the body.
Especially when adjusting macro, be careful not
to remove the lens by turning it counter-
clockwise too much.
2) Do not touch the surface of the lens with the
fingers. If dust or contamination gets on the
surface of the lens, the following cleaning
method is recommended :
ø Recommended clamp torque : 0.012 N·m
[however, when the thickness of the circuit
board is thinner than t = 2.0 mm]
3) If any damage or breakage occurs on the
surface of the lens, its characteristics could
deteriorate.
Therefore,
ø Do not hit the lens.
ø Do not give a shock large enough to cause
distortion.
ø Do not scrub or scratch the surface of the
lens.
ø Handle the built-in lens CCD in a clean
environment such as a cleaned booth. (The
cleanliness level should be, if possible, class
1 000 at least.)
– Even a soft cloth or applicator, if dry, could
cause dust to scratch the lens.
12
PRECAUTIONS FOR BUILT-IN LENS CCD AREA SENSORS
ø Dust from static electricity should be blown
ø Make sure there is no dust or contamination
on the lens and screw it on the lens holder.
off with an ionized air blower. For anti-
electrostatic measures, however, ground all
the leads on the device before blowing off
the dust.
4. Other
1) Soldering should be manually performed under
the following conditions :
ø The contamination on the surface of the lens
should be wiped off with a clean applicator
soaked in isopropyl alcohol. Wipe slowly and
gently in one direction only.
– Frequently replace the applicator and do not
use the same applicator to clean more than
one device.
ø Use ESD-measured soldering iron
ø The conditions of the soldering time in which
the soldering iron touches the package,
differs by the shape and the temperature of
the iron end. Refer to the table below and
take great care in soldering.
THE SHAPE OF
THE TEMPERATURE OF
THE IRON END
SOLDERING TIME
THE IRON END
R0.5
Time touching the package should be less than 40 seconds
Below 350 ˚C
17
17
(Unit : mm)
(Unit : mm)
Time touching the package should be less than 25 seconds
Time touching the package should be less than 35 seconds
Below 300 ˚C
Below 275 ˚C
6.5
0.5
– In case where the soldering may exceed the
time mentioned above, resume the work
after the device returns to normal
temperature.
2) There is no guarantee of the performance of
the device which has been removed or
resoldered after being soldered once under the
conditions mentioned above.
ø Do not put too much force onto the lens and
the lens holder while soldering.
ø Be careful not to let the soldering iron touch
the lens holder.
– Soldering can be quickly/neatly done by
laying the soldering iron so it lightly touches
the border between the package and the
circuit board and sliding it in sideways.
– In case there seems to be an inferior device,
consult with our sales office before removing
it.
3) Avoid using or storing the CCD at high
temperature or high humidity as it is a precise
optical component. Do not give a mechanical
shock to the CCD.
4) Do not expose the device to strong light. For
the color device, long exposure to strong light
will fade the color of the color filters.
13
厂商 型号 描述 页数 下载

APITECH

LZ0402B105MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402B105MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y155MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y155MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y205MBNBB [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Y205MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0402Z824MBNBT [ Data Line Filter, 1 Function(s), 25V, 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 4 页

APITECH

LZ0603A103MCNAB [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

APITECH

LZ0603A103MCNAT [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

APITECH

LZ0603A104MCNAB [ Data Line Filter, 1 Function(s), 25V, 0.1A, EIA STD PACKAGE SIZE 0603, 2 PIN ] 4 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.210633s
