AZ764-1A-230A

型号：

AZ764-1A-230A

品牌：

ZETTLER[ ZETTLER ELECTRONICS ]

页数：

4 页

PDF大小：

99 K

下载PDF手册

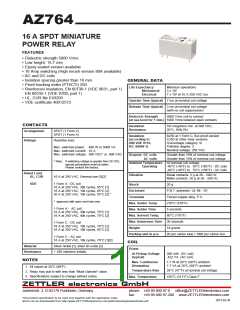

AZ764
16 A SPDT MINIATURE
POWER RELAY
FEATURES
• Dielectric strength 5000 Vrms
• Low height: 15.7 mm
• Epoxy sealed version available
• 16 Amp switching (High inrush version 80A available)
• AC and DC coils
• Isolation spacing greater than 10 mm
• Proof tracking index (PTI/CTI) 250
• Reinforced insulation, EN 60730-1 (VDE 0631, part 1)
EN 60335-1 (VDE 0700, part 1)
• UL, CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
3 x 107
7 x 104 at 16 A 250 VAC res.
Operate Time (typical) 7 ms at nominal coil voltage
• VDE certificate 40012572
Release Time (typical) 3 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms between open contacts
CONTACTS
Arrangement
Insulation
Resistance
105 megohms min. at 500 VDC,
20°C, 50% RH
SPDT (1 Form C)
SPST (1 Form A)
Insulation
B250 at 1 Form C, flux proof version
C250 at other relay versions
Overvoltage category: III
Pollution degree: 3
(according to
DIN VDE 0110,
IEC 60664-1)
Ratings
Resistive load:
Max. switched power: 480 W or 5000 VA
Max. switched current: 16 A
Nominal voltage: 250 VAC
Max. switched voltage: 300 VDC* or 400 VAC
Dropout DC coils
AC coils
Greater than 10% of nominal coil voltage
Greater than 15% of nominal coil voltage
* Note: If switching voltage is greater than 30 VDC,
special precautions must be taken.
Please contact the factory.
Ambient Temperature At nominal coil voltage
Operating -40°C (-40°F) to 85°C (185°F) - DC coils
-40°C (-40°F) to 70°C (158°F) - AC coils
Rated Load
UL, CUR
Vibration
Break contacts: 5 g at 20…500 Hz
Make contacts: 20 g at 30…500 Hz
16 A at 250 VAC, General use [1][2]
VDE
1 Form A - DC coil
Shock
20 g
16 A at 250 VAC, 30k cycles, 85°C [1]
16 A at 250 VAC, 10k cycles, 85°C [2]
20 A at 250 VAC, 10k cycles, 85°C [2] *
Enclosure
P.B.T. polyester, UL-94 : V0
Tinned copper alloy, P.C.
270°C (518°F)
Terminals
* approved with open vent hole only
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
1 Form A - AC coil
16 A at 250 VAC, 30k cycles, 70°C [1]
16 A at 250 VAC, 40k cycles, 70°C [2]
5 seconds
80°C (176°F)
Max. Immersion Time 30 seconds
1 Form C - DC coil
16 A at 250 VAC, 10k cycles, 70°C [1]
16 A at 250 VAC, 10k cylces, 85°C [2]
Weight
14 grams
Packing unit in pcs
20 per carton tube / 1000 per carton box
1 Form C - AC coil
16 A at 250 VAC, 10k cycles, 70°C [1][2]
COIL
Material
Silver nickel [1], silver tin oxide [2]
< 100 miliohms initially
Power
Resistance
At Pickup Voltage
(typical)
200 mW (DC coil)
.422 VA (AC coil)
NOTES
Max. Continuous
Dissipation
1.7 W at 20°C (68°F) ambient
1.7 VA at 20°C (68°F) ambient
1. All values at 20°C (68°F).
Temperature Rise
Max. Temperature
26°C (47°F) at nominal coil voltage
155°C (311°F) Class F
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
2013-02-26
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
AZ764
RELAY ORDERING DATA
COIL SPECIFICATIONS - DC COIL
ORDER NUMBER*
Nominal Coil
Must Operate
VDC
Max. Continuous
VDC
Coil Resistance
Ohm ± 10%
1 Form A
1 Form C
VDC
3
2.1
3.5
7.6
12.7
22
60
AZ764–1A–3D
AZ764–1A–5D
AZ764–1A–6D
AZ764–1A–9D
AZ764–1A–12D
AZ764–1A–18D
AZ764–1A–24D
AZ764–1A–36D
AZ764–1A–48D
AZ764–1A–60D
AZ764–1A–110D
AZ764–1C–3D
AZ764–1C–5D
AZ764–1C–6D
AZ764–1C–9D
AZ764–1C–12D
AZ764–1C–18D
AZ764–1C–24D
AZ764–1C–36D
AZ764–1C–48D
AZ764–1C–60D
AZ764–1C–110D
5
6
4.2
15.3
90
9
6.3
22.9
200
12
18
24
36
48
60
110
8.4
30.6
360
12.6
16.8
25.2
33.6
42.0
77.0
45.9
710
61.2
1,440
3,140
5,700
7,500
25,200
92.0
122.0
153.0
280.0
COIL SPECIFICATIONS - AC COIL
ORDER NUMBER*
Nominal Coil Must Operate Max. Continuous Nominal Current Coil Resistance
1 Form A
1 Form C
VAC
VAC
VAC
mA ± 10%
63.0
31.3
15.6
12.5
6.8
Ohm ± 10%
12
9.0
18.0
100
AZ764–1A–12A
AZ764–1A–24A
AZ764–1A–48A
AZ764–1A–60A
AZ764–1A–110A
AZ764–1A–115A
AZ764–1A–120A
AZ764–1A–220A
AZ764–1A–230A
AZ764–1A–240A
AZ764–1C–12A
AZ764–1C–24A
AZ764–1C–48A
AZ764–1C–60A
AZ764–1C–110A
AZ764–1C–115A
AZ764–1C–120A
AZ764–1C–220A
AZ764–1C–230A
AZ764–1C–240A
24
18.0
36.0
45.0
82.5
86.3
90.0
165.0
172.5
180.0
36.0
400
48
72.0
1,550
60
90.0
2,600
110
115
120
220
230
240
165.0
172.5
180.0
330.0
345.0
360.0
8,900
6.5
9,600
6.3
10,200
35,500
38,500
42,500
3.4
3.3
3.1
* “1A” or “1C” denote silver nickel contacts.
Substitute “1AE” or “1CE” in place of “1A” or “1C” for silver tin oxide contacts.
Substitute “1AT” in place of “1A” for high inrush 80A silver tin oxide contacts. (DC coils only)
Add suffix “E” at the end of order number for sealed version.
DC - Coil operating range
AC - Coil operating range
3,0
2,8
2,6
2,4
2,2
2,0
1,8
1,6
1,4
1,2
1,0
0,8
0,6
3,0
2,8
2,6
2,4
2,2
2,0
1,8
1,6
1,4
1,2
1,0
0,8
0,6
IN= 16 A
1
2
IN= 16 A
3
1
3
B
B
A
0
10
20
30
40
50
60
70
80
90 100
0
10
20
30
40
50
60
70
80
90 100
Ambient temperature [°C]
Ambient temperature [°C]
1 - no load on contacts
2 - half of rated load on contacts
3 - rated load on contacts
A - Cold coil ( Tcoil = Tambient)
1 - no load on contacts
3 - rated load on contacts
B - Hot coil (1,1 x UN), contact load = IN
B - Hot coil (1,1 x UN), contact load = IN
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax: +49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
2013-02-26
AZ764
MECHANICAL DATA
PC BOARD LAYOUT
.197
[5.0]
.60
Max.
1.142
[29.0]
0.500
[12.7]
Max.
[15.12]
.197
[5.0]
.098
[2.5]
*
.295
[7.5]
.618
[15.7]
Max.
*
2 x ø .040
[ø 1.0]
6 x ø .050
[ø 1.3]
* Not used on 1 Form A relay
.295
[7.5]
.154
[3.9]
Viewed toward terminals
WIRING DIAGRAMS
6 x .020
[0.5]
2 x ø .024
[ø 0.6]
1 Form C
1 Form A
4
3
2
4
2
5
5
.295
[7.5]
6 x .035
[0.9]
.098
[2.5]
.197
[5.0]
.60
[15.12]
.197
[5.0]
8
7
6
1
8
7
1
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
ACCESSORIES
For P.C.B. mount: Socket EC 50
For DIN rail mount: Socket ES 50
Retaining Clip MP 16 / MH 16
Retaining Clip MS 16
MECHANICAL DATA
EC 50
ES 50
MS 16
MP 16 / MH 16
h = 15 ... 16.5 mm
h = 15 ... 16.5 mm
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax: +49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
2013-02-26
AZ764
Electrical life at 250 VAC, resistive load
Electrical life reduction factor at inductive AC load
107
106
105
104
F
1,0
0,9
0,8
0,7
0,6
0,5
0,4
cos
0,2
0,3
1,0
0,9
0,8
0,7
0,6
0,5
0,4
0,3
Power factor
0
0,4 0,8 1,2 1,6 2,0 2,4 2,8 3,2 3,6 4,0
Breaking capacity [kVA]
N
cos N x F
Max. DC resistive load breaking capacity
50
16
10
5
2
1
0,5
0,1
10
20
30 40 50
100
200 300
DC voltage [V]
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
2013-02-26
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
