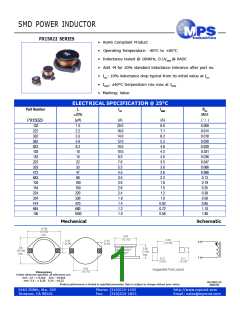

SMD POWER INDUCTOR
PX15022 SERIES
• RoHS Compliant Product
• Operating Temperature: -40°C to +85°C
• Inductance tested @ 100KHz, 0.1VRMS @ 0ADC
• Add -M for 20% standard inductance tolerance after part no.
• IDC: 10% inductance drop typical from its initial value at IDC
• IRMS: ∆40°C temperature rise max at IRMS
• Marking: Value
ELECTRICAL SPECIFICATION @ 25°C
Part Number
L
IDC
IRMS
RDC
±20%
(µH)
1.0
2.2
3.3
5.6
8.2
10
15
22
33
47
MAX
( W )
0.009
0.014
0.018
0.020
0.029
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.10
1.80
(A)
20.0
16.0
14.0
12.0
10.0
10.0
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
(A)
8.6
7.1
6.2
5.3
4.8
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
PX15022-
102
222
332
562
822
103
153
223
333
473
683
104
154
224
334
474
684
68
100
150
220
330
470
680
1000
105
Mechanical
Schematic
0.730
[18.50]
max.
0.50
[12.70]
0.49
[12.45]
0.10
0.10
S
F
[2.54]
[2.54]
0.6
[15.24]
max.
0.30
[7.62]
max.
0.12
[2.92]
0.11
[2.79]
0.50
[12.70]
Suggested Pad Layout
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.010
mm: X,X : ± 0,38 X,XX : ±0,25
PX15022-XX
0602JW
Product performance is limited to specified parameter. Data is subject to change without prior notice.
