NXA025A0X-LZ

型号：

NXA025A0X-LZ

品牌：

LINEAGEPOWER[ LINEAGE POWER CORPORATION ]

页数：

21 页

PDF大小：

1071 K

下载PDF手册

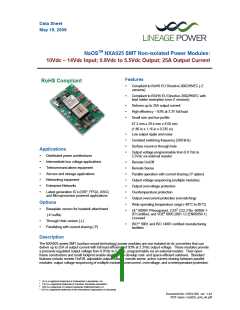

Data Sheet
May 19, 2009
NaOSTM NXA025 SMT Non-isolated Power Modules:
10Vdc – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A Output Current
Features
RoHS Compliant
ƒ
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
ƒ
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
ƒ
ƒ
ƒ
Delivers up to 25A output current
High efficiency – 93% at 3.3V full load
Small size and low profile:
47.2 mm x 29.4 mm x 8.50 mm
(1.86 in x 1.16 in x 0.335 in)
Low output ripple and noise
ƒ
ƒ
ƒ
ƒ
Constant switching frequency (500 kHz)
Surface mount or through hole
Applications
Output voltage programmable from 0.8 Vdc to
5.5Vdc via external resistor
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Remote On/Off
Remote Sense
Parallel operation with current sharing (-P option)
Output voltage sequencing (multiple modules)
Output overvoltage protection
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Overtemperature protection
Output overcurrent protection (non-latching)
Options
Wide operating temperature range (-40°C to 85°C)
UL* 60950-1Recognized, CSA† C22.2 No. 60950-1-
03 Certified, and VDE‡ 0805:2001-12 (EN60950-1)
Licensed
ƒ
Baseplate version for heatsink attachment
(-H suffix)
ƒ
ƒ
Through Hole version (-L)
Paralleling with current sharing (-P)
ƒ
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description
The NXA025 series SMT (surface-mount technology) power modules are non-isolated dc-dc converters that can
deliver up to 25A of output current with full load efficiency of 93% at 3.3Vdc output voltage. These modules provide
a precisely regulated output voltage from 0.8Vdc to 5.5Vdc, programmable via an external resistor. Their open-
frame construction and small footprint enable designers to develop cost- and space-efficient solutions. Standard
features include remote On/Off, adjustable output voltage, remote sense, active current sharing between parallel
modules, output voltage sequencing of multiple modules, overcurrent, overvoltage, and overtemperature protection.
*
UL is a registered trademark of Underwriters Laboratories, Inc.
CSA is a registered trademark of Canadian Standards Association.
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
†
‡
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-030 ver. 1.42
PDF name: nxa025_smt_ds.pdf
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are
absolute stress ratings only, functional operation of the device is not implied at these or any other conditions in
excess of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for
extended periods can adversely affect the device reliability.
Parameter
Device
Symbol
Min
Max
Unit
Input Voltage
All
VIN
-0.3
14
Vdc
Continuous
Operating Ambient Temperature
(see Thermal Considerations section)
Storage Temperature
All
All
TA
-40
-55
85
°C
°C
Tstg
125
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions.
Parameter
Device
All
Symbol
VIN
Min
Typ
Max
14.0
14
Unit
Vdc
Adc
Operating Input Voltage
Maximum Input Current
(VIN=10.0V to 14.0V, IO=IO, max
10.0
12.0
All
IIN,max
)
Inrush Transient
All
All
All
I2t
1
A2s
mAp-p
dB
Input Reflected Ripple Current, peak-to-peak
(5Hz to 20MHz, 1μH source impedance; VIN, min to
60
50
VIN, max, IO= IOmax ; See Test configuration section)
Input Ripple Rejection (120Hz)
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This power module can be used in a wide variety of applications, ranging from simple standalone operation to being
part of a complex power architecture. To preserve maximum flexibility, internal fusing is not included, however, to
achieve maximum safety and system protection, always use an input line fuse. The safety agencies require a fast-
acting fuse with a maximum rating of 30A (see Safety Considerations section). Based on the information provided in
this data sheet on inrush energy and maximum dc input current, the same type of fuse with a lower rating can be
used. Refer to the fuse manufacturer’s data sheet for further information.
LINEAGE POWER
2
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Electrical Specifications (continued)
Parameter
Device
Symbol
Min
Typ
Max
Unit
Output Voltage Set-point
All
VO, set
-1.2
+1.2
% VO, set
⎯
(VIN=VN, min, IO=IO, max, TA=25°C)
Output Voltage
All
All
VO, set
-3.0
+3.0
5.5
% VO, set
⎯
(Over all operating input voltage, resistive load,
and temperature conditions until end of life)
Adjustment Range
VO
0.7887
Vdc
Selected by an external resistor
Output Regulation
Line (VIN=VIN, min to VIN, max
Load (IO=IO, min to IO, max
Temperature (Tref=TA, min to TA, max
)
All
All
All
0.01
0.1
0.1
0.2
1
% VO, set
% VO, set
% VO, set
⎯
⎯
⎯
)
)
0.5
Output Ripple and Noise on nominal output
(VIN=VIN, nom and IO=IO, min to IO, max
Cout = 2 * 0.47μF ceramic capacitors)
RMS (5Hz to 20MHz bandwidth)
All
All
5
15
50
mVrms
⎯
⎯
Peak-to-Peak (5Hz to 20MHz bandwidth)
External Capacitance
15
mVpk-pk
ESR ≥ 1 mΩ
All
All
All
All
All
CO, max
CO, max
Io
1000
10,000
25
μF
μF
⎯
⎯
0
⎯
⎯
ESR ≥ 10 mΩ
Output Current
Adc
% Io
Adc
Output Current Limit Inception (Hiccup Mode )
Output Short-Circuit Current
(VO≤250mV) ( Hiccup Mode )
Efficiency
IO, lim
IO, s/c
125
1
150
⎯
⎯
⎯
VO,set = 0.8Vdc
VO, set = 1.2Vdc
VO,set = 1.5Vdc
VO,set = 1.8Vdc
VO,set = 2.0Vdc
VO,set = 2.5Vdc
VO,set = 3.3Vdc
VO,set = 5.5Vdc
All
η
η
79.0
84.7
87.3
88.9
89.7
91.4
93.1
95.1
500
%
%
VIN= VIN, nom, TA=25°C
IO=IO, max , VO= VO,set
η
%
η
%
η
%
η
%
η
%
η
%
Switching Frequency
fsw
kHz
⎯
⎯
⎯
Dynamic Load Response
All
Vpk
150
mV
(dIo/dt=5A/μs; VIN = VIN, nom; TA=25°C)
Load Change from Io= 50% to 100% of
Io,max; No external output capacitors
Peak Deviation
Settling Time (Vo<10% peak deviation)
All
All
ts
25
25
⎯
⎯
⎯
μs
Vpk
150
mV
(dIo/dt=5A/μs; VIN = VIN, nom; TA=25°C)
Load Change from Io= 100% to 50%of Io,max:
No external output capacitors
Peak Deviation
Settling Time (Vo<10% peak deviation)
All
ts
⎯
⎯
μs
LINEAGE POWER
3
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
General Specifications
Parameter
Min
Typ
Max
Unit
Calculated MTBF (IO=80% of IO, max, TA=25°C)
Weight
2,150,000
15.5 (0.55)
Hours
g (oz.)
⎯
⎯
Feature Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions. See Feature Descriptions for additional information.
Parameter
Device
Symbol
Min
Typ
Max
Unit
SEQ/ENA Signal Interface
(VIN=VIN, min to VIN, max ; open collector or equivalent,
Signal referenced to GND)
Logic High (SEQ/ENA pin open – Module Off)
SEQ/ENA Current
All
All
ISEQ/ENA
0.5
3.5
2.33
14
mA
V
⎯
⎯
SEQ/ENA Voltage:
VSEQ/ENA
Logic Low (Module ON)
SEQ/ENA Current:
All
All
All
All
ISEQ/ENA
VSEQ/ENA
Tdelay
Trise
200
1.2
―
μA
V
⎯
⎯
―
―
⎯
⎯
1
SEQ/ENA Voltage:
Turn-On Delay and Rise Times
(IO=IO, max , Vo to within 1% of steady state)
Output voltage overshoot – Startup
IO=80% of IO, max; VIN = 12Vdc, TA = 25 oC
Ouptut Overvoltage Protection (Latching)
Input Undervoltage Lockout
Turn-on Threshold
msec
msec
% VO, set
5
―
0.5
0.1
All
5.62
5.8
6.0
9.9
V
All
All
V
V
Turn-off Threshold
8.1
―
Remote Sense Range
―
0.5
V
Overtemperature Protection
All
All
Tref
125
°C
⎯
⎯
(See Thermal Consideration section)
Forced Load Share Accuracy
Number of units in Parallel
10
% Io
⎯
5
LINEAGE POWER
4
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Characteristic Curves
The following figures provide typical characteristics for the NXA025A0X –S at 25ºC.
88%
87%
86%
85%
84%
83%
82%
81%
94%
93%
92%
91%
Vin=13.2V
Vin=12.0V
Vin=10.8V
Vin=13.2V
Vin=12.0V
Vin=10.8V
90%
89%
88%
80%
0
5
10
15
2 0
2 5
0
5
10
15
2 0
2 5
OUTPUT CURRENT, IO (A)
OUTPUT CURRENT, IO (A)
Figure 1. Converter Efficiency versus Output Current Figure 4. Converter Efficiency versus Output Current
(Vout = 1.2Vdc).
(Vout = 2.5Vdc).
91%
90%
89%
88%
87%
86%
85%
84%
95%
94%
93%
92%
91%
Vin=13.2V
Vin=12.0V
Vin=10.8V
Vin=13.2V
Vin=12.0V
90%
89%
Vin=10.8V
83%
0
88%
0
5
10
15
2 0
2 5
5
10
15
2 0
2 5
OUTPUT CURRENT, IO (A)
OUTPUT CURRENT, IO (A)
Figure 2. Converter Efficiency versus Output Current Figure 5. Converter Efficiency versus Output Current
(Vout = 1.5Vdc).
(Vout = 3.3Vdc).
97%
96%
95%
94%
93%
92%
91%
92%
91%
90%
89%
88%
87%
86%
Vin=13.2V
Vin=12.0V
Vin=10.8V
Vin=13.2V
Vin=12.0V
Vin=10.8V
90%
89%
0
85%
0
5
10
15
2 0
2 5
5
10
15
2 0
2 5
OUTPUT CURRENT, IO (A)
OUTPUT CURRENT, IO (A)
Figure 3. Converter Efficiency versus Output Current Figure 6. Converter Efficiency versus Output Current
(Vout = 1.8Vdc).
(Vout = 5.0Vdc).
LINEAGE POWER
5
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Characteristic Curves (continued)
The following figures provide typical characteristics for the NXA025A0X –S at 25ºC.
TIME, t (1μs/div)
Figure 7. Typical Output Ripple and Noise (Vin = 12V
dc, Vo = 3.3 Vdc, Cout = 2x 0.47uF ceramic capacitor).
TIME, t (5 μs/div)
Figure 10. Transient Response to Dynamic Load
Change from 100% to 50% of full load (Vo = 3.3Vdc).
TIME, t (0.5ms/div)
TIME, t (1μs/div)
Figure 8. Typical Output Ripple and Noise (Vin = 12V
dc, Vo = 1.2Vdc, Cout = 2x 0.47uF ceramic capacitor).
Figure 11. Typical Start-Up with application of Vin (Vo
= 3.3Vdc).
TIME, t (0.5ms/div)
TIME, t (5μs/div)
Figure 9. Transient Response to Dynamic Load
Change from 50% to 100% of full load (Vo = 3.3Vdc).
Figure 12. Typical Start-Up Using Enable (Vo =
3.3Vdc).
LINEAGE POWER
6
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Characteristic Curves (continued)
The following figures provide typical characteristics for the NXA025A0X –S at 25oC.
TIME, t (1ms/div)
Figure 13. Synchronized Start-up of Output Voltage
when SEQ/ENA pins are tied together (Module #1 =
1.5Vdc, Module #2 = 3.3Vdc).
TIME, t (1ms/div)
Figure 14. Synchronized Shut-down of Output Voltage
when SEQ/ENA pins are tied together (Module #1 =
1.5Vdc, Module #2 = 3.3Vdc).
LINEAGE POWER
7
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Characteristic Curves (continued)
The following figures provide typical thermal derating curves for NXA025A0X –S (Figures 19 and 20 show derating
curves with base plate).
30
25
20
15
10
5
30
25
20
15
10
5
100LFM
200LFM
100LFM
200LFM
300LFM
300LFM
400LFM
400LFM
0
0
20
30
40
50
60
70
80
20
30
40
50
60
70
80
AMBIENT TEMPERATURE, TA OC
AMBIENT TEMPERATURE, TA OC
Figure 15. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=1.2Vdc).
Figure 18. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=5.0 Vdc).
30
30
25
20
15
25
100LFM
20
200LFM
15
300LFM
10
10
400LFM
100 LFM
200 LFM
30
5
5
0
0
20
30
40
50
60
70
80
20
40
50
60
70
80
AMBIENT TEMPERATURE, TA OC
AMBIENT TEMPERATURE, TA OC
Figure 16. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=1.8 Vdc).
Figure 19. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=3.3 Vdc) with baseplate.
30
30
25
20
25
100LFM
20
200LFM
15
100 LFM
15
300LFM
200 LFM
10
10
400LFM
300 LFM
5
5
400 LFM
30 40
0
0
20
30
40
50
60
70
80
20
50
60
70
80
AMBIENT TEMPERATURE, TA OC
AMBIENT TEMPERATURE, TA OC
Figure 17. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=3.3 Vdc).
Figure 20. Derating Output Current versus Local
Ambient Temperature and Airflow (Vin = 12Vdc,
Vo=5.0 Vdc) with baseplate.
LINEAGE POWER
8
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Test Configurations
Typical Application Circuit
CURRENT PROBE
VIN
TO OSCILLOSCOPE
CIN
Vin Vin
LTEST
Rx
VIN(+)
Share
Share
SEN+
1μH
Vout
Vout
Vout
4.99k
CIN
Min
Dx
CS 220μF
SEQ/ENA
SEN-
E.S.R.<0.1Ω
Cout
150μF
@ 20°C 100kHz
Qx
COM
NOTE: Measure input reflected ripple current with a simulated
source inductance (LTEST) of 1μH. Capacitor CS offsets
possible battery impedance. Measure current as shown
above.
1uF
Figure 21. Input Reflected Ripple Current Test Setup.
Figure 24. Application Schematic
COPPER STRIP
VO(+)
COM
RESISTIVE
LOAD
Design Considerations
1uF
.
10uF
SCOPE
Input Source Impedance
The power module should be connected to a
low-impedance source. Highly inductive source
impedance can affect the stability of the power module.
The input capacitor CIN should be located equal distance
from the two input pins of the module. CIN is
GROUND PLANE
NOTE: All voltage measurements to be taken at the module
terminals, as shown above. If sockets are used then
Kelvin connections are required at the module terminals
to avoid measurement errors due to socket contact
resistance.
recommended to be 150μF minimum. The ripple voltage
is 50mV RMS at 1MHz and the capacitor should be
chosen with an ESR and an RMS Current Rating for this
amount of ripple voltage. When using multiple modules
in parallel, a small inductor (0.2 –0.5μH) is recommended
at the input of each module to prevent interaction
between modules. Consult the factory for further
application guidelines.
Figure 22. Output Ripple and Noise Test Setup.
Rdistribution Rcontact
Rcontact Rdistribution
VIN(+)
VO
Safety Considerations
RLOAD
VO
VIN
For safety agency approval the power module must be
installed in compliance with the spacing and separation
requirements of the end-use safety agency standards,
i.e., UL 60950-1, CSA C22.2 No. 60950-1-03, and VDE
0850:2001-12 (EN60950-1) Licensed.
Rdistribution Rcontact
Rcontact Rdistribution
COM
COM
NOTE: All voltage measurements to be taken at the module
terminals, as shown above. If sockets are used then
Kelvin connections are required at the module terminals
to avoid measurement errors due to socket contact
resistance.
For the converter output to be considered meeting the
requirements of safety extra-low voltage (SELV), the
input must meet SELV requirements. The power module
has extra-low voltage (ELV) outputs when all inputs are
ELV.
Figure 23. Output Voltage and Efficiency Test Setup.
VO. IO
The input to these units is to be provided with a maximum
of 30 A fast-acting fuse in the ungrounded lead.
Efficiency
=
x
100 %
η
VIN. IIN
LINEAGE POWER
9
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
voltage at the point of load, connect SENSE (+) to Vo(+)
and Sense (-) to ground. The amount of power delivered
Feature Description
Remote On/Off using SEQ/ENA Pin
by the module is defined as the voltage at the output
terminals multiplied by the output current. When using
the remote sense, the output voltage of the module can
be increased, which at the same output current would
increase the power output of the module. Ensure that the
maximum output power of the module remains at or
The NXA025A0X-S SMT power modules feature an
SEQ/ENA pin for remote On/Off operation. If not using
the remote On/Off pin, leave the pin open (module will be
on). The SEQ/ENA signal (VSEQ/ENA) is referenced to
ground. Circuit configuration for remote On/Off operation
of the module using SEQ/ENA pin is shown in Figure 25.
below the maximum rated power (Po,max = Io,max x
Vo,max).
During Logic High on the SEQ/ENA pin (transistor Qx is
OFF), the module remains OFF. The external resistor
Rx should be chosen to maintain 3.5V minimum on the
SEQ/ENA pin to insure that the unit is OFF when
transistor Qx is in the OFF state. During Logic-Low
when Qx is turned ON, the module is turned ON. Note
that the external diode is required to make sure the
internal thermal shutdown (THERMAl_SD) and
undervoltage (UVLO) circuits are not disabled when Qx is
turned ON
Figure 26. Effective Circuit Configuration for Remote
sense operation
Overcurrent Protection
THERMAL_SD
To provide protection in a fault (output overload)
condition, the unit is equipped with internal
VIN
UVLO
current-limiting circuitry and can endure current limiting
continuously. At the point of current-limit inception, the
unit enters hiccup mode. The unit operates normally once
the output current is brought back into its specified range.
Rx
4.99k
Enable
SEQ/ENA
Pin
R1
The average output current during hiccup is 10% IO, max
.
Dx
1k
Input Undervoltage Lockout
R2
Qx
At input voltages below the input undervoltage lockout
4.99k
limit, module operation is disabled. The module will begin
to operate at an input voltage above the undervoltage
lockout turn-on threshold.
Figure 25. Remote On/Off Implementation.
Overtemperature Protection
The SEQ/ENA pin can also be used to synchronize the
output voltage start-up and shutdown of multiple modules
in parallel. By connecting SEQ/ENA pins of multiple
modules, the output start-up can be synchronized (please
refer to characterization curves). When SEQ/ENA pins
are connected together, all modules will shutdown if any
one of the modules gets disabled due to undervoltage
lockout or overtemperature protection.
To provide protection in a fault condition, the unit is
equipped with a thermal shutdown circuit. The unit will
shutdown if the thermal reference point Tref, exceeds
125oC (typical), but the thermal shutdown is not
intended as a guarantee that the unit will survive
temperatures beyond its rating. The module will
automatically restarts after it cools down.
Output Voltage Programming
Remote Sense
The output voltage of the NXA025A0X-S can be
Remote sense feature minimizes the effects of
programmed to any voltage from 0.8Vdc to 5.5Vdc by
inserting a series resistor (shown as Rtrim in figure 27) in
the Sense(+) pin of the module. Without an external
resistor in the Sense(+) pin (Sense (+) pin is shorted to
Vo(+)), the output voltage of the module will be 0.7887V.
With Sense(+) not connected to Vo(+), the output of the
module will reach overvoltage shutdown. A 1μF multi-
layer ceramic capacitor is required from Rtrim to Sense(-)
pin to minimize noise. To calculate the value of the
distribution losses by regulating the voltage at the remote
sense pins. The voltage between the remote sense pins
and the output terminals must not exceed the remote
sense range given in the Feature Specification table, i.e.:
[Vo(+) – Vo(GND)] –[SENSE(+) – SENSE(-)] < 0.5V
Remote sense configuration is shown in Figure 26. If not
using the remote sense feature to regulate the output
LINEAGE POWER
10
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Forced Load sharing (Parallel Operation)
Feature Descriptions (continued)
For additional power requirements, the power module can
be configured for parallel operation with forced load
sharing (See Figure 28). Good layout techniques should
be observed for noise immunity when using multiple units
in parallel. To implement forced load sharing, the
following connections should be made:
Output Voltage Programming (continued)
resistor Rtrim for a particular desired voltage Vo, use the
following equation:
Vo
⎡
⎤
Rtrim = 775*
−1 Ω
⎢
⎥
0.7887
⎣
⎦
•
The share pins of all units in parallel must be
connected together. The path of these connections
should be as direct as possible.
Where Vo is the desired output voltage
and Rtrim is the external resistor in ohms
•
All remote-sense pins should be connected to the
power bus at the same point, i.e., connect all the
SENSE(+) pins to the (+) side of the bus and all the
SENSE(-) pins to the GROUND of the power bus at
the same point. Close proximity and directness are
necessary for good noise immunity
For example, to program the output voltage of the
NXA025A0X-S module to 2.5Vdc, Rtrim is calculated as
follows:
2.5
⎡
⎤
Rtrim = 775*
−1
⎢
⎥
⎦
0.7887
⎣
The share bus is not designed for redundant operation
and the system will be non-functional upon failure of one
of the unit when multiple units are in parallel. The
maximum number of modules tied to share bus is 5.
When not using the parallel feature, leave the share pin
open.
Rtrim =1682Ω
VIN(+)
ENA
VO
Sense+
Rtrim
1µF
RLOAD
Share
Sense-
COM
COM
Figure 27. Circuit Configuration for Programming
Output voltage
Table 1 provides Rtrim values required for most common
output voltages. To achieve the output voltage tolerance
as specified in the electrical specifications over all
operating input voltage, resistive load and temperature
conditions, use 0.1% thick metal film resistor.
Table 1
Vo,set
Rtrim
Ω
(V)
0.8
11
Figure 28. Circuit Configuration for modules in
parallel.
1.0
208
1.2
404
1.5
699
1.8
994
2.0
1190
1682
2468
4138
Open
2.5
3.3
5.0
Overvoltage Shutdown
LINEAGE POWER
11
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
reliable operation this temperature should not exceed
105oC.
Thermal Considerations
Layout Considerations
The power modules operate in a variety of thermal
environments; however, sufficient cooling should be
provided to help ensure reliable operation.
The input capacitors should be located equal distance
from the two input pins of the module. Recommended
layout is shown in the mechanical section. In addition to
the input and output planes, a ground plane beneath the
module is recommended.
Considerations include ambient temperature, airflow,
module power dissipation, and the need for increased
reliability. A reduction in the operating temperature of the
module will result in an increase in reliability. The thermal
data presented here is based on physical measurements
taken in a wind tunnel.
The thermal reference point, Tref used in the
specifications is shown in Figure 29. For reliable
operation this temperature should not exceed 110oC.
Please refer to the Application Note “Thermal
Characterization Process For Open-Frame Board-
Mounted Power Modules” for a detailed discussion of
thermal aspects including maximum device temperatures.
Tref
Tref
Figure 29. T
Temperature measurement location.
ref
Heat Transfer via Convection
Increased airflow over the module enhances the heat
transfer via convection. Derating figures showing the
maximum output current that can be delivered by various
module versus local ambient temperature (TA) for natural
convection and up to 2m/s (400 ft./min) are shown in the
respective Characteristics Curves section.
Base-Plate option (-H)
The baseplate option (-H) power modules are constructed
with baseplate on topside of the open frame power
module. The baseplate includes two through-threaded,
M3 x 0.5 mounting hole pattern, which enable heat sinks
or cold plates to attach to the module. The mounting
torque must not exceed 0.56 N-m (5 in.-lb.) during heat
sink assembly. The baseplate option allows customers to
operate the module in an extreme thermal environment
with attachment of heatsink/cold-plate for proper cooling
of internal component to heighten reliable and consistent
operation. The thermal reference point for baseplate
option is center of the heat plate on the top-side. For
LINEAGE POWER
12
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Mechanical Outline for NXA025A0X-S
Dimensions are in millimeters and (inches).
Tolerances: x.x mm 0.5 mm (x.xx in. 0.02 in.) [unless otherwise indicated]
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
Top View
Side View
Bottom View
Pin #
Function
Ground
Vout
1
2
3
Ground
Vout
4
5
Ground
Vin
6
7
SHARE
Sen+
8
9
SEQ/ENA
Sen-
10
11
Vin
LINEAGE POWER
13
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Mechanical Outline for NXA025A0X-HS
Dimensions are in millimeters and (inches).
Tolerances: x.x mm 0.5 mm (x.xx in. 0.02 in.) [unless otherwise indicated]
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
Top View
For additional heat sink Attachment:
Accepts M3x0.5 carbon steel screws
Insertion into baseplate not to exceed
4.55 mm [0.175 in].
Max Torque = 5 IN-LBS
Side View
Bottom View
Pin #
Function
Ground
Vout
1
2
3
Ground
Vout
4
5
Ground
Vin
6
7
SHARE
Sen+
8
9
SEQ/ENA
Sen-
10
11
Vin
LINEAGE POWER
14
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Recommended Pad Layout
Dimensions are in millimeters and inches.
Tolerances: x.x mm 0.5 mm (x.xx in. 0.02 in.) [unless otherwise indicated]
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
Layout Guidelines
LINEAGE POWER
15
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Mechanical Outline for NXA025A0X-L
Dimensions are in millimeters and (inches).
Tolerances: x.x mm 0.5 mm (x.xx in. 0.02 in.) [unless otherwise indicated]
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
Top View
Side View
Bottom View
Pin #
Function
Ground
Vout
1
2
3
Ground
Vout
4
5
Ground
Vin
6
7
SHARE
Sen+
8
9
SEQ/ENA
Sen-
10
11
Vin
LINEAGE POWER
16
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Recommended Pad Layout for NXA025A0X-L (Through Hole Version)
Dimensions are in millimeters and (inches).
Tolerances: x.x mm 0.5 mm (x.xx in. 0.02 in.) [unless otherwise indicated]
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
x.xx mm 0.25 mm (x.xxx in 0.010 in.)
LINEAGE POWER
17
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Surface Mount Information
Packaging Details
Pick and Place
The surface mount versions of the NXA025-S series
modules are supplied as standard in the plastic tray
shown in Figure 30. The tray has external
dimensions of 136mm (W) x 322.6mm (L) x 18.4mm
(H) or 5.35in (W) x 12.7in (L) x 0.72in (H).
The NXA025-S series of DC-to-DC power modules
use an open-frame construction and are designed for
surface mount assembly within a fully automated
manufacturing process.
The NXA025-S series modules are fitted with two
Kapton labels designed to provide a large flat surface
for pick and placing. The labels are located covering
the Center of Gravity of the power module. The labels
meets all the requirements for surface-mount
processing, as well as meeting UL safety agency
standards. The labels will withstand reflow
temperatures up to 300°C. The labels also carry
product information such as product code, date and
location of manufacture. One of the two labels may
be used as a pick-and-place location.
Figure 31. Pick and Place Location.
Nozzle Recommendations
The module weight has been kept to a minimum by
using open frame construction. Even so, they have a
relatively large mass when compared with
conventional SMT components. Variables such as
nozzle size, tip style, vacuum pressure and placement
speed should be considered to optimize this process.
The minimum recommended nozzle diameter for
reliable operation is 6mm. The maximum nozzle outer
diameter, which will safely fit within the allowable
component spacing, is 9 mm.
Figure 30. Surface Mount Packaging Tray
Tray Specification
Material
Antistatic coated PVC
65oC
Max temperature
Max surface resistivity
Color
1012Ω/sq
Clear
Oblong or oval nozzles up to 11 x 9 mm may also be
used within the space available.
Capacity
15 power modules
45 pcs (1box of 3 full trays)
Min order quantity
For further information please contact your local
Lineage Power technical representative.
Each tray contains a total of 15 power modules. The
trays are self-stacking and each shipping box will
contain 3 full trays plus one empty hold down tray
giving a total number of 45 power modules.
LINEAGE POWER
18
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
300
Surface Mount Information (continued)
Peak Temp 235oC
250
200
150
10 0
50
Reflow Soldering Information
Cooling
zone
Heat zone
max 4oCs-1
These NXA025series power modules are large mass,
low thermal resistance devices and typically heat up
slower than other SMT components. It is
recommended that the customer review data sheets
in order to customize the solder reflow profile for each
application board assembly.
1- 4 oCs-1
Soak zone
30-240s
T
lim above
205oC
The following instructions must be observed when
SMT soldering these units. Failure to observe these
instructions may result in the failure of or cause
damage to the modules, and can adversely affect
long-term reliability.
Preheat zone
max 4oCs-1
0
REFLOW TIME (S)
These surface mountable modules use our newest
SMT technology called “Column Pin” (CP) connectors.
Fig 32 shows the new CP connector before and after
reflow soldering onto the end-board assembly.
Figure 32. Recommended Reflow Profile.
240
235
230
225
220
215
210
205
200
NXA Board
Insulator
Solder Ball
End assembly PCB
0
10
20
30
40
50
60
Figure 32. Column Pin Connector Before and After
Reflow Soldering.
TIME LIMIT (S)
Figure 33. Time Limit Curve Above 205oC Reflow.
The CP is constructed from a solid copper pin with an
integral solder ball attached, which is composed of
tin/lead (Sn/Pb) solder. The CP connector design is
able to compensate for large amounts of co-planarity
and still ensure a reliable SMT solder joint.
Typically, the eutectic solder melts at 183oC, wets the
land, and subsequently wicks the device connection.
Sufficient time must be allowed to fuse the plating on
the connection to ensure a reliable solder joint. There
are several types of SMT reflow technologies
currently used in the industry. These surface mount
power modules can be reliably soldered using natural
forced convection, IR (radiant infrared), or a
combination of convection/IR. For reliable soldering
the solder reflow profile should be established by
accurately measuring the modules CP connector
temperatures.
LINEAGE POWER
19
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Surface Mount Information (continued)
Lead Free Soldering
300
250
200
150
100
50
Per J-STD-020 Rev. C
Peak Temp 260°C
The –Z version Naos SMT modules are lead-free (Pb-
free) and RoHS compliant and are both forward and
backward compatible in a Pb-free and a SnPb
soldering process. Failure to observe the instructions
below may result in the failure of or cause damage to
the modules and can adversely affect long-term
reliability.
Cooling
Zone
* Min. Time Above 235°C
15 Seconds
Heating Zone
1°C/Second
*Time Above 217°C
60 Seconds
0
Pb-free Reflow Profile
Reflow Time (Seconds)
Power Systems will comply with J-STD-020 Rev. C
(Moisture/Reflow Sensitivity Classification for
Nonhermetic Solid State Surface Mount Devices) for
both Pb-free solder profiles and MSL classification
procedures. This standard provides a recommended
forced-air-convection reflow profile based on the
volume and thickness of the package (table 4-2). The
suggested Pb-free solder paste is Sn/Ag/Cu (SAC).
The recommended linear reflow profile using
Sn/Ag/Cu solder is shown in Fig. 34.
Figure 34. Recommended linear reflow profile
using Sn/Ag/Cu solder.
MSL Rating
The Naos SMT modules have a MSL rating of 3.
Storage and Handling
The recommended storage environment and handling
procedures for moisture-sensitive surface mount
packages is detailed in J-STD-033 Rev. A (Handling,
Packing, Shipping and Use of Moisture/Reflow
Sensitive Surface Mount Devices). Moisture barrier
bags (MBB) with desiccant are required for MSL
ratings of 2 or greater. These sealed packages
should not be broken until time of use. Once the
original package is broken, the floor life of the product
at conditions of ≤ 30°C and 60% relative humidity
varies according to the MSL rating (see J-STD-033A).
The shelf life for dry packed SMT packages will be a
minimum of 12 months from the bag seal date, when
stored at the following conditions: < 40° C, < 90%
relative humidity.
Post Solder Cleaning and Drying
Considerations
Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The
result of inadequate cleaning and drying can affect
both the reliability of a power module and the
testability of the finished circuit-board assembly. For
guidance on appropriate soldering, cleaning and
drying procedures, refer to Board Mounted Power
Modules: Soldering and Cleaning Application Note
(AP01-056EPS).
LINEAGE POWER
20
Data Sheet
NaosTM NXA025 SMT Non-isolated Power Modules:
May 19, 2009
10 – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A output current
Ordering Information
Please contact your Lineage Power Sales Representative for pricing, availability and optional features.
Table 2. Device Codes
Input
Voltage
Output
Current 3.3V @ 25A
Efficiency
Connector
Type
Product codes
Output Voltage
Comcodes
NXA025A0X-S
10 – 14 Vdc
0.8Vdc – 5.5Vdc
25 A
93 %
SMT
108975053
NXA025A0X-HS
NXA025A0X-L
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
10 – 14 Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
0.8Vdc – 5.5Vdc
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
93 %
93 %
93 %
93 %
93 %
93 %
93 %
93 %
93 %
SMT
TH
108975061
108988515
NXA025A0X-LP
NXA025A0X-SP
NXA025A0X-LPZ
NXA025A0X-SZ
NXA025A0X-HSZ
NXA025A0X-LZ
NXA025A0X-SPZ
TH
CC109101350
CC109101342
CC109106746
109100402
SMT
TH
SMT
SMT
TH
109100393
CC109107174
CC109133682
SMT
-Z refers to RoHS-compliant versions.
Asia-Pacific Headquarters
Tel: +65 6416 4283
Europe, Middle-East and Africa Headquarters
World Wide Headquarters
Lineage Power Corporation
Tel: +49 89 6089 286
3000 Skyline Drive, Mesquite, TX 75149, USA
+1-800-526-7819
India Headquarters
(Outside U.S.A.: +1-972-284-2626)
www.lineagepower.com
Tel: +91 80 28411633
e-mail: techsupport1@lineagepower.com
Lineage Power reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or
application. No rights under any patent accompany the sale of any such product(s) or information.
© 2008 Lineage Power Corporation, (Mesquite, Texas) All International Rights Reserved.
LINEAGE POWER
21
Document No: DS03-030 ver. 1.42
PDF name: nxa025_smt_ds.pdf
厂商 型号 描述 页数 下载

RUBYCON

 		NXA 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 2 页

LINEAGEPOWER

 		NXA025A0X NaOSTM NXA025 SIP的非隔离电源模块[ NaOSTM NXA025 SIP Non-isolated Power Modules ] 16 页

LINEAGEPOWER

 		NXA025A0X-HS [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

LINEAGEPOWER

 		NXA025A0X-HSZ [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

LINEAGEPOWER

 		NXA025A0X-L [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

LINEAGEPOWER

 		NXA025A0X-LP [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

LINEAGEPOWER

 		NXA025A0X-LPZ [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

LINEAGEPOWER

 		NXA025A0X-P NaOSTM NXA025 SIP的非隔离电源模块[ NaOSTM NXA025 SIP Non-isolated Power Modules ] 16 页

LINEAGEPOWER

 		NXA025A0X-PZ NaOSTM NXA025 SIP的非隔离电源模块[ NaOSTM NXA025 SIP Non-isolated Power Modules ] 16 页

LINEAGEPOWER

 		NXA025A0X-S [ 10Vdc – 14Vdc Input 0.8Vdc to 5.5Vdc Output; 25A Output Current ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.178162s
