RWS1000B-36-ME

型号：

RWS1000B-36-ME

品牌：

TDK[ TDK ELECTRONICS ]

页数：

1 页

PDF大小：

150 K

下载PDF手册
1 of 1

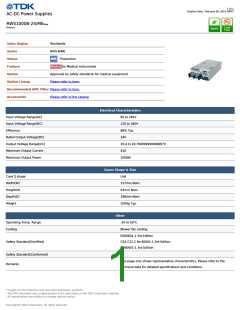

Creation Date : February 08, 2019 (GMT)
AC-DC Power Supplies
RWS1000B-24/MENew
Product
Sales Region
Series
Worldwide
RWS-B/ME
Production
Status
Feature
Medical for Medical instruments
Option
Approved by safety standards for medical equipment
Please refer to here.
Option Lineup
Recommended EMC Filter Please refer to here.
Accessories
Please refer to the catalog
Electrical Characteristics
85 to 265V
Input Voltage Range[AC]
Input Voltage Range[DC]
Efficiency
120 to 340V
88% Typ.
Rated Output Voltage[DC]
Output Voltage Range[DC]
Maximum Output Current
Maximum Output Power
24V
20.4 to 28.799999999999997V
42A
1008W
Cases Shape & Size
Unit
Case’ shape
Width(W)
Height(H)
Depth(D)
Weight
127mm Nom.
63mm Nom.
198mm Nom.
2000g Typ.
Other
Operating Temp. Range
Cooling
-20 to 60°C
Blower fan cooling
ES60601-1 3rd Edition
Safety Standard(Certified)
CSA C22.2 No.60601-1 3rd Edition
EN60601-1 3rd Edition
Safety Standard(Conformed)
Remarks
This page only shows representative characteristics. Please refer to the
technical data for detailed specifications and conditions.
! Images are for reference only and show exemplary products.
! This PDF document was created based on the data listed on the TDK Corporation website.
! All specifications are subject to change without notice.
Copyright(c) TDK Corporation. All rights reserved.
