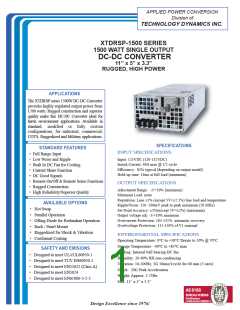

APPLIED POWER CONVERSION
Division of
TECHNOLOGY DYNAMICS INC.
XTDRSP-1500 SERIES
1500 WATT SINGLE OUTPUT
RUGGED, HIGH POWER
APPLICATIONS
The XTDRSP series 1500W DC-DC Converter
provides highly regulated output power from
1500 watts. Rugged construction and superior
quality make this DC-DC Converter ideal for
harsh environment applications. Available in
standard, modified or fully custom
configurations, for industrial, commercial,
COTS, Ruggedized and Military applications.
STANDARD FEATURES
• Full Range Input
INPUT SPECIFICATTIIOONNSS::
• Low Noise and Ripple
Input: 125VDC (120-132VDC)
Inrush Current: 40A max @ 1/2 cycle
Efficiency: 85% typical (depending on output model)
Hold-up time: 16ms at full load (minimum)
• Built In DC Fan for Cooling
• Current Share Function
• DC Good Signals
• Remote On/Off & Remote Sense Functions
• Rugged Construction
• High Reliability/Superior Quality
OUTPUT SPECIFICATIONS
Adjustment Range: -5/+10% (minimum)
Minimum Load: none
Regulation: Line ±1% (except 5V=±2.5%) line load and temperature
Ripple/Noise: 150 -200mV peak to peak maximum (20 MHz)
Set Point Accuracy: ±1%(except 5V=±2%) (maximum)
Output voltage adj: -5/+10% minimum
AVAILABLE OPTIONS
• Hot Swap
• Parallel Operation
Overcurrent Protection: 105-135% automatic recovery
Overlvoltage Protection: 115-150% of V1 nominal
• ORing Diode for Redundant Operation
• Rack / Panel Mount
• Ruggedized for Shock & Vibration
• Conformal Coating
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +50°C Derate to 50% @ 70°C
Storage Temperature: -40°C to +85°C max
Cooling: Internal ball bearing DC fan
Humidity: 20-90% RH non condensing
Vibration: 10-500Hz, 2G 10min/1cycle for 60 min (3 axes)
Shock: 20G Peak Acceleration
SAFETY AND EMISIONS
• Designed to meet UL/cUL60950-1
• Designed to meet TUV EN60950-1
• Designed to meet EN55022 (Class A)
• Designed to meet EN5024
Weight: Approx: 5.73lbs
• Designed to meet EN61000-3-2-3
Size: 11” x 5” x 3.3”
AS9100
Certificate No: US008267-1
Design Excellence since 1976!
