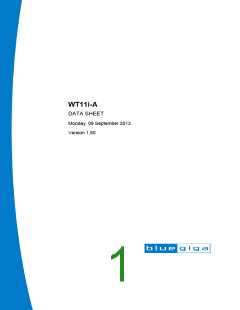

WT11i-A

DATA SHEET

Monday, 09 September 2013

Version 1.60

Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual.

Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications

detailed here at any time without notice and does not make any commitment to update the information

contained here. Bluegiga’s products are not authorized for use as critical components in life support devices

or systems.

The WRAP is a registered trademark of Bluegiga Technologies

The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies.

All other trademarks listed herein are owned by their respective owners.

Bluegiga Technologies Oy

VERSION HISTORY

Version

1.0

Comment

Release

1.1

FCC radiation exposure statement updated

FCC and IC statements updated, physical dimensions added

WT11i description updated

WT11i-E removed

1.2

1.3

1.4

1.41

1.42

1.43

IC statement in French added

Table 1: reset description corrected

Contact details updated

Terminal descriptions corrected, recommended PCB land pattern added,

layout recommendations updated

1.44

1.45

1.46

1.47

1.48

1.49

1.5

Current consumption, antenna characteristics

Package dimensions added

Tolerance for the external dimensions

Figure 9. Tolerances updated.

Page 38: Reset is active high

Current consumption corrected

1.51

1.52

1.53

1.54

1.55

1.56

1.57

TX power vs supply voltage and power control steps added

FCC certification notice updated

External dimensions

Pin No. 1 indicator in the PCN land pattern

Peak current consumption corrected from 170 mA to 180 mA

MIC Japan information updated

FCC/IC SAR requirement

Bluegiga Technologies Oy

1.58

1.59

MIC Japan ID corrected

Minor updates to the SPI interface description

Bluegiga Technologies Oy

TABLE OF CONTENTS

1

2

3

ORDERING INFORMATION.........................................................................................................................8

Pinout and Terminal Description ...................................................................................................................9

Electrical Characteristics ............................................................................................................................ 12

3.1

Absolute Maximum Ratings ................................................................................................................ 12

Recommended Operating Conditions................................................................................................. 12

Current Consumption .......................................................................................................................... 12

PIO Current Sink and Source Capability............................................................................................. 13

Radio Characteristics .......................................................................................................................... 13

Antenna Specification ......................................................................................................................... 15

3.2

3.3

3.4

3.5

3.6

4

Physical Dimensions .................................................................................................................................. 18

4.1

Package Drawings .............................................................................................................................. 19

Layout Guidelines....................................................................................................................................... 21

UART Interface........................................................................................................................................... 24

5

6

6.1

UART Bypass...................................................................................................................................... 26

UART Configuration While Reset is Active ......................................................................................... 26

UART Bypass Mode............................................................................................................................ 26

6.2

6.3

7

USB Interface ............................................................................................................................................. 27

7.1

USB Data Connections ....................................................................................................................... 27

USB Pull-Up resistor ........................................................................................................................... 27

USB Power Supply.............................................................................................................................. 27

Self-Powered Mode............................................................................................................................. 27

Bus-Powered Mode............................................................................................................................. 28

USB Suspend Current......................................................................................................................... 29

USB Detach and Wake-Up Signaling.................................................................................................. 29

USB Driver .......................................................................................................................................... 30

USB v2.0 Compliance and Compatibility ............................................................................................ 30

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

8

9

Serial Peripheral Interface (SPI)................................................................................................................. 31

PCM Codec Interface ................................................................................................................................. 32

9.1

PCM Interface Master/Slave ............................................................................................................... 32

Long Frame Sync................................................................................................................................ 33

Short Frame Sync ............................................................................................................................... 33

Multi-slot Operation ............................................................................................................................. 34

GCI Interface....................................................................................................................................... 34

Slots and Sample Formats.................................................................................................................. 35

Additional Features ............................................................................................................................. 36

PCM_CLK and PCM_SYNC Generation ............................................................................................ 36

PCM Configuration.............................................................................................................................. 37

9.2

9.3

9.4

9.5

9.6

9.7

9.8

9.9

Bluegiga Technologies Oy

10

10.1

11

11.1

12

12.1

12.2

I/O Parallel Ports..................................................................................................................................... 39

PIO Defaults................................................................................................................................. 39

Reset....................................................................................................................................................... 40

Pin States on Reset ..................................................................................................................... 40

Certifications ........................................................................................................................................... 41

Bluetooth...................................................................................................................................... 41

FCC and IC .................................................................................................................................. 41

12.2.1 FCC et IC ..................................................................................................................................... 43

12.3

12.4

13

CE ................................................................................................................................................ 45

MIC Japan.................................................................................................................................... 45

Contact Information................................................................................................................................. 46

Bluegiga Technologies Oy

1 ORDERING INFORMATION

U.FL Connector

Internal chip antenna

WT11i-A-AI5

iWRAP 5.0 firmware

iWRAP 4.0 firmware

iWRAP 3.0 firmware

HCI firmware, BT2.1 + EDR

Custom firmware

WT11i-E-AI5

WT11i-E-AI4

WT11i-E-AI3

WT11i-E-HCI21

WT11i-E-C (*

WT11i-A-AI4

WT11i-A-AI3

WT11i-A-HCI21

WT11i-A-C (*

Table 1: Ordering information

*) Custom firmware means any standard firmware with custom parameters (like UART baud rate), custom firmware developer by

customer or custom firmware developed by Bluegiga for the customer.

To order custom firmware you must have a properly filled Custom Firmware Order From and unique ordering code issued by Bluegiga.

Contact sales@bluegiga.com for more information.

Bluegiga Technologies Oy

Page 8 of 46

2

Pinout and Terminal Description

WT11i

GND

AIO

28

27

26

25

24

23

22

21

20

19

18

17

16

15

1

VDD_PA

PIO2

2

UART_TX

PIO5

3

PIO3

4

UART_RTS#

UART_RX

PCM_OUT

USB+

SPI_MOSI

SPI_MISO

SPI_CLK

SPI_CS#

PIO4

5

6

7

8

USB-

9

UART_CTS#

PCM_IN

PCM_CLK

PCM_SYNC

GND

PIO7

10

11

12

13

14

PIO6

RESET

VDD

GND

Figure 1: WT11i connection diagram

NUMBER

PAD TYPE

DESCRIPTION

Input, internal 220kohm

pull-down, internal start

up reset circuitry

Active high reset. Keep high for >5 ms

to cause a reset

RESET

17

1, 14, 15,

28

GND

VDD_PA

VDD

2

Supply voltage

Supply voltage for the RF power amplifier

Supply voltage for BC4 and the flash

memory

16

Table 2: Supply and RF Terminal Descriptions

Bluegiga Technologies Oy

Page 9 of 46

NUMBER

PIO PORT

PAD TYPE

DESCRIPTION

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

PIO[2]

PIO[3]

PIO[4]

PIO[5]

PIO[6]

3

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

4

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

20

25

18

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

Bi-directional, programmamble

strength internal pull-down/pull-up line

Programmamble input/output

PIO[7]

AIO[1]

19

27

Programmamble analog

input/output line

Table 3: GPIO Terminal Descriptions

Bi-directional

SPI

INTERFACE

NUMBER

PAD TYPE

DESCRIPTION

CMOS output, tri-state,

weak internal pull-down

PCM_OUT

7

Synchronous data output

Synchronous data input

Synchronous data sync

Synchronous data clock

CMOS input, weak

internal pull-down

PCM_IN

11

13

12

Bi-directional, weak

internal pull-down

PCM_SYNC

PCM_CLK

Bi-directional, weak

internal pull-down

Table 4: PCM Terminal Descriptions

UART

Interfaces

NUMBER

PAD TYPE

DESCRIPTION

CMOS output, tri-

state, with weak

internal pull-up

CMOS output, tri-

state, with weak

internal pull-up

CMOS input, tri-

state, with weak

internal pull-down

CMOS input, tri-

state, with weak

internal pull-down

UART_TX

26

UART data output, active high

UART_RTS#

UART_RX

5

6

UART request to send, active low

UART data input, active high

UART clear to send, active low

UART_CTS#

10

Table 5: UART Terminal Descriptions

Bluegiga Technologies Oy

Page 10 of 46

NUMBER

USB Interfaces

PAD TYPE

DESCRIPTION

USB data plus with selectable internal 1.5k

pull-up resistor

USB data minus

USB+

USB-

8

9

Bidirectional

Table 6: USB Terminal Descriptions

SPI

INTERFACE

NUMBER

PAD TYPE

DESCRIPTION

SPI data input

CMOS input with weak

internal pull-down

SPI_MOSI

24

CMOS input with weak Chip select for Serial Peripheral

SPI_CS#

21

internal pull-up

Interface, active low

CMOS input with weak

internal pull-down

CMOS output, tristate,

with weak internal pull

down

SPI_CLK

22

23

SPI clock

SPI_MISO

SPI data output

Table 7: Terminal Descriptions

Bluegiga Technologies Oy

Page 11 of 46

3

Electrical Characteristics

3.1 Absolute Maximum Ratings

Rating

Min

Max

Unit

Storage Temperature

-40

85

°C

VDD_PA, VDD

-0.4

3.6

V

Other Terminal Voltages

VSS-0.4

VDD+0.4

Table 8: Absolute Maximum Ratings

3.2 Recommended Operating Conditions

Rating

Min

-40

3.0

Max

85

3.6

Unit

°C

V

Operating Temperature Range

VDD_PA, VDD ^*)

*) VDD_PA has an effect on the RF output power.

Table 9: Recommended Operating Conditions

3.3 Current Consumption

Packet type

Power level

17 dBm

12 dm

17 dBm

12 dm

-

MAX

180

110

170

110

120

-

AVG

72

54

128

84

93

39

50

59

Unit

DH1

TX

DH5

mA

2DH5

3DH5

RX

Sleep

Inquiry

-

µA

mA

17 dBm

Table 10: WT11i Current Consumption

Bluegiga Technologies Oy

Page 12 of 46

3.4 PIO Current Sink and Source Capability

Figure 2: WT11i PIO Current Drive Capability

3.5 Radio Characteristics

Figure 3: WT11i-A TX Power vs VDD_PA Supply Voltage

Bluegiga Technologies Oy

Page 13 of 46

Figure 4: Power Control Steps Of WT11i-A

Bluegiga Technologies Oy

Page 14 of 46

3.6 Antenna Specification

WT11i uses a monopole type on a chip antenna with maximum gain of 0.5 dBi. The radiation pattern and the

total radiated efficiency are dependent on the layout and any metal around the antenna has an effect on the

radiation characteristics. Typically the efficiency is 30 … 50%.

WT11i-A

Figure 5: Antenna radiation pattern in a USB dongle layout

Figure 6: Antenna radiation pattern in a USB dongle layout

Bluegiga Technologies Oy

Page 15 of 46

Figure 7: Antenna radiation pattern in a USB dongle layout

Figure 8: Antenna radiation pattern in the WT11 evaluation kit

Figure 9: Antenna radiation pattern in the WT11 evaluation kit

Bluegiga Technologies Oy

Page 16 of 46

Figure 10: Antenna radiation pattern in the WT11 evaluation kit

Bluegiga Technologies Oy

Page 17 of 46

4 Physical Dimensions

Figure 11: Physical dimensions (top view)

11.4mm

2.1mm

2.6mm

35.75mm (+/-0.2mm)

10.0mm

6.3mm

Tolerance for the thickness is +/-10%

Figure 12: Dimensions of WT11i

Bluegiga Technologies Oy

Page 18 of 46

4.1 Package Drawings

Figure 13: WT11i taping

Bluegiga Technologies Oy

Page 19 of 46

Figure 14: WT11i orientation in the reel

Bluegiga Technologies Oy

Page 20 of 46

5 Layout Guidelines

WT11i is pin compatible with WT11 despite of slightly different external dimensions. For new design it

recommended to follow the land pattern shown in the figure below.

Figure 15: Recommended PCB land pattern for WT11i

Do not place any copper under the antenna. The minimum recommended keep out area is shown in the figure

16. Any dielectric material in close proximity to the antenna will effect on the impedance matching of the

antenna by lowering the resonance frequency. Figure 17 shows how different FR4 thickness under the

antenna effect on the resonance frequency. Recommended PCB thickness for the PCB is 1.6 mm – 2.8 mm.

Avoid placing plastic cover closer than 3 mm from the antenna as this will also tune the resonance frequency

downwards.

Bluegiga Technologies Oy

Page 21 of 46

Edge of the PCB

Do not place

copper or any

metal within

the area

marked with

cross lines

GND area with

stitching vias

Figure 16: Recommended metal keep put area for WT11i

Effect of PCB thickness to the antenna impedance matching

0

-5

-10

-15

-20

-25

-30

-35

-40

1 mm

2 mm

3 mm

BT Band

2300

2350

2400

2450

2500

2550

2600

Freq (MHz)

Figure 17: Effect of FR4 under the antenna to the resonant frequency

Use good layout practices to avoid excessive noise coupling to supply voltage traces or sensitive analog

signal traces, such as analog audio signals. If using overlapping ground planes use stitching vias separated

by max 3 mm to avoid emission from the edges of the PCB. Connect all the GND pins directly to a solid GND

plane and make sure that there is a low impedance path for the return current following the signal and supply

traces all the way from start to the end.

Bluegiga Technologies Oy

Page 22 of 46

A good practice is to dedicate one of the inner layers to a solid GND plane and one of the inner layers to

supply voltage planes and traces and route all the signals on top and bottom layers of the PCB. This

arrangement will make sure that any return current follows the forward current as close as possible and any

loops are minimized.

Signals

GND

Power

Signals

Figure 18: Typical 4-layer PCB construction

Overlapping GND layers without

GND stitching vias

Overlapping GND layers with

GND stitching vias shielding the

RF energy

Figure 19: Use of stitching vias to avoid emissions from the edges of the PCB

Bluegiga Technologies Oy

Page 23 of 46

6 UART Interface

This is a standard UART interface for communicating with other serial devices.WT11i UART interface provides

a simple mechanism for communicating with other serial devices using the RS232 protocol.

Four signals are used to implement the UART function. When WT11i is connected to another digital device,

UART_RX and UART_TX transfer data between the two devices. The remaining two signals, UART_CTS and

UART_RTS, can be used to implement RS232 hardware flow control where both are active low indicators. All

UART connections are implemented using CMOS technology and have signalling levels of 0V and VDD.

UART configuration parameters, such as data rate and packet format, are set using WT11i software.

Note:

In order to communicate with the UART at its maximum data rate using a standard PC, an accelerated serial

port adapter card is required for the PC.

Table 11: Possible UART Settings

The UART interface is capable of resetting WT11i upon reception of a break signal. A break is identified by a

continuous logic low (0V) on the UART_RX terminal, as shown in Figure 9. If tBRK is longer than the value,

defined by PSKEY_HOST_IO_UART_RESET_TIMEOUT, (0x1a4), a reset will occur. This feature allows a

host to initialise the system to a known state. Also, WT11i can emit a break character that may be used to

wake the host.

Figure 20: Break Signal

Table 11 shows

a

list of commonly used data rates and their associated values for

PSKEY_UART_BAUD_RATE (0x204). There is no requirement to use these standard values. Any data rate

within the supported range can be set in the PS Key according to the formula in Equation 1

Bluegiga Technologies Oy

Page 24 of 46

Equation 1: Data Rate

Table 12: Standard Data Rates

Bluegiga Technologies Oy

Page 25 of 46

6.1 UART Bypass

Figure 21: UART Bypass Architecture

6.2 UART Configuration While Reset is Active

The UART interface for WT11i while the chip is being held in reset is tristate. This will allow the user to daisy

chain devices onto the physical UART bus. The constraint on this method is that any devices connected to

this bus must tristate when WT11i reset is de-asserted and the firmware begins to run.

6.3 UART Bypass Mode

Alternatively, for devices that do not tristate the UART bus, the UART bypass mode on BlueCore4-External

can be used. The default state of BlueCore4-External after reset is de-asserted; this is for the host UART bus

to be connected to the BlueCore4-External UART, thereby allowing communication to BlueCore4-External via

the UART. All UART bypass mode connections are implemented using CMOS technology and have signalling

levels of 0V and VDD.

In order to apply the UART bypass mode, a BCCMD command will be issued to BlueCore4-External. Upon

this issue, it will switch the bypass to PIO[7:4] as Figure 21 indicates. Once the bypass mode has been

invoked, WT11i will enter the Deep Sleep state indefinitely.

In order to re-establish communication with WT11i, the chip must be reset so that the default configuration

takes effect.

It is important for the host to ensure a clean Bluetooth disconnection of any active links before the bypass

mode is invoked. Therefore, it is not possible to have active Bluetooth links while operating the bypass mode.

The current consumption for a device in UART bypass mode is equal to the values quoted for a device in

standby mode.

Bluegiga Technologies Oy

Page 26 of 46

7 USB Interface

This is a full speed (12Mbits/s) USB interface for communicating with other compatible digital devices. WT11i

acts as a USB peripheral, responding to requests from a master host controller such as a PC.

The USB interface is capable of driving a USB cable directly. No external USB transceiver is required. The

device operates as a USB peripheral, responding to requests from a master host controller such as a PC.

Both the OHCI and the UHCI standards are supported. The set of USB endpoints implemented can behave as

specified in the USB section of the Bluetooth v2.1 + EDR specification or alternatively can appear as a set of

endpoints appropriate to USB audio devices such as speakers.

As USB is a master/slave oriented system (in common with other USB peripherals), WT11i only supports USB

Slave operation.

7.1 USB Data Connections

The USB data lines emerge as pins USB_DP and USB_DN. These terminals are connected to the internal

USB I/O buffers of the BlueCore4-External, therefore, have a low output impedance. To match the connection

to the characteristic impedance of the USB cable, resistors must be placed in series with USB_DP/USB_DN

and the cable.

7.2 USB Pull-Up resistor

WT11i features an internal USB pull-up resistor. This pulls the USB_DP pin weakly high when WT11i is ready

to enumerate. It signals to the PC that it is a full speed (12Mbits/s) USB device.

The USB internal pull-up is implemented as a current source, and is compliant with section 7.1.5 of the USB

specification v1.2. The internal pull-up pulls USB_DP high to at least 2.8V when loaded with a 15k 5% pull-

down resistor (in the hub/host) when VDD_PADS = 3.1V. This presents a Thevenin resistance to the host of

at least 900. Alternatively, an external 1.5k pull-up resistor can be placed between a PIO line and D+ on the

USB cable. The firmware must be alerted to which mode is used by setting PSKEY_USB_PIO_PULLUP

appropriately. The default setting uses the internal pull-up resistor.

7.3 USB Power Supply

The USB specification dictates that the minimum output high voltage for USB data lines is 2.8V. To safely

meet the USB specification, the voltage on the VDD supply terminal must be an absolute minimum of 3.1V.

Bluegiga recommends 3.3V for optimal USB signal quality.

7.4 Self-Powered Mode

In self-powered mode, the circuit is powered from its own power supply and not from the VBUS (5V) line of the

USB cable. It draws only a small leakage current (below 0.5mA) from VBUS on the USB cable. This is the

easier mode for which to design, as the design is not limited by the power that can be drawn from the USB

hub or root port. However, it requires that VBUS be connected to WT11i via a resistor network (Rvb1 and

Rvb2), so WT11i can detect when VBUS is powered up. BlueCore4-External will not pull USB_DP high when

VBUS is off.

Self-powered USB designs (powered from a battery or PSU) must ensure that a PIO line is allocated for USB

pullup purposes. A 1.5k 5% pull-up resistor between USB_DP and the selected PIO line should be fitted to the

design. Failure to fit this resistor may result in the design failing to be USB compliant in self-powered mode.

The internal pull-up in BlueCore is only suitable for bus-powered USB devices, e.g., dongles.

Bluegiga Technologies Oy

Page 27 of 46

Figure 22: USB Connections for Self-Powered Mode

The terminal marked USB_ON can be any free PIO pin. The PIO pin selected must be registered by setting

PSKEY_USB_PIO_VBUS to the corresponding pin number.

Identifier

Value

Function

R_S

0 to 10 (to be matched per design)**

Impedance matching to USB cable

R_vb1

R_vb2

22k 5%

47k 5%

VBUS ON sense divider

Figure 23: USB Interface Component Values

**) WT11i has internal 22 ohm series resistors at the USB lines.

7.5 Bus-Powered Mode

In bus-powered mode, the application circuit draws its current from the 5V VBUS supply on the USB cable.

WT11i negotiates with the PC during the USB enumeration stage about how much current it is allowed to

consume. On power-up the device must not draw more than 100 mA but after being configured it can draw up

to 500 mA.

For WT11i, the USB power descriptor should be altered to reflect the amount of power required. This is

accomplished by setting PSKEY_USB_MAX_POWER (0x2c6). This is higher than for a Class 2 application

due to the extra current drawn by the Transmit RF PA. By default for WT11i the setting is 300 mA.

When selecting a regulator, be aware that VBUS may go as low as 4.4V. The inrush current (when charging

reservoir and supply decoupling capacitors) is limited by the USB specification. See the USB Specification.

Some applications may require soft start circuitry to limit inrush current if more than 10uF is present between

VBUS and GND. The 5V VBUS line emerging from a PC is often electrically noisy. As well as regulation down

to 3.3V and 1.8V, applications should include careful filtering of the 5V line to attenuate noise that is above the

voltage regulator bandwidth. Excessive noise on WT11i supply pins will result in reduced receiver sensitivity

and a distorted RF transmit signal.

Bluegiga Technologies Oy

Page 28 of 46

Figure 24: USB Connections for Bus-Powered Mode

7.6 USB Suspend Current

All USB devices must permit the USB controller to place them in a USB suspend mode. While in USB

Suspend, bus-powered devices must not draw more than 2.5mA from USB VBUS (self-powered devices may

draw more than 2.5mA from their own supply). This current draw requirement prevents operation of the radio

by bus-powered devices during USB Suspend.

When computing suspend current, the current from VBUS through the bus pull-up and pull-down resistors

must be included. The pull-up resistor at the device is 1.5 k. (nominal). The pull-down resistor at the hub is

14.25k. to 24.80k. The pull-up voltage is nominally 3.3V, which means that holding one of the signal lines high

takes approximately 200uA, leaving only 2.3mA available from a 2.5mA budget. Ensure that external LEDs

and/or amplifiers can be turned off by BlueCore4-External. The entire circuit must be able to enter the

suspend mode.

7.7 USB Detach and Wake-Up Signaling

WT11i can provide out-of-band signaling to a host controller by using the control lines called USB_DETACH

and USB_WAKE_UP. These are outside the USB specification (no wires exist for them inside the USB cable),

but can be useful when embedding WT11i into a circuit where no external USB is visible to the user. Both

control lines are shared with PIO pins and can be assigned to any PIO pin by setting

PSKEY_USB_PIO_DETACH and PSKEY_USB_PIO_WAKEUP to the selected PIO number.

USB_DETACH is an input which, when asserted high, causes WT11i to put USB_DN and USB_DP in high

impedance state and turns off the pull-up resistor on DP. This detaches the device from the bus and is

logically equivalent to unplugging the device. When USB_DETACH is taken low, WT11i will connect back to

USB and await enumeration by the USB host.

USB_WAKE_UP is an active high output (used only when USB_DETACH is active) to wake up the host and

allow USB communication to recommence. It replaces the function of the software USB WAKE_UP message

(which runs over the USB cable) and cannot be sent while BlueCore4-External is effectively disconnected

from the bus.

Bluegiga Technologies Oy

Page 29 of 46

Figure 25: USB_Detach and USB_Wake_Up Signals

7.8 USB Driver

A USB Bluetooth device driver is required to provide a software interface between BlueCore4-External and

Bluetooth software running on the host computer. Please, contact support@bluegiga.com for suitable drivers.

7.9 USB v2.0 Compliance and Compatibility

Although WT11i meets the USB specification, CSR cannot guarantee that an application circuit designed

around the module is USB compliant. The choice of application circuit, component choice and PCB layout all

affect USB signal quality and electrical characteristics. The information in this document is intended as a guide

and should be read in association with the USB specification, with particular attention being given to Chapter

7. Independent USB qualification must be sought before an application is deemed USB compliant and can

bear the USB logo. Such qualification can be obtained from a USB plugfest or from an independent USB test

house.

Terminals USB_DP and USB_DN adhere to the USB Specification v2.0 (Chapter 7) electrical requirements.

BlueCore4-External is compatible with USB v2.0 host controllers; under these circumstances the two ends

agree the mutually acceptable rate of 12Mbits/s according to the USB v2.0 specification.

Bluegiga Technologies Oy

Page 30 of 46

8 Serial Peripheral Interface (SPI)

The SPI port can be used for system debugging. It can also be used for programming the Flash memory and

setting the PSKEY configurations. WT11i uses 16-bit data and 16-bit address serial peripheral interface, where

transactions may occur when the internal processor is running or is stopped. SPI interface is connected using

the MOSI, MISO, CSB and CLK pins.

SPI interface cannot be used for application purposes.

Bluegiga Technologies Oy

Page 31 of 46

9 PCM Codec Interface

PCM is a standard method used to digitize audio (particularly voice) for transmission over digital

communication channels. Through its PCM interface, WT11i has hardware support for continual transmission

and reception of PCM data, thus reducing processor overhead for wireless headset applications. WT11i offers

a bidirectional digital audio interface that routes directly into the baseband layer of the on-chip firmware. It

does not pass through the HCI protocol layer.

Hardware on WT11i allows the data to be sent to and received from a SCO connection. Up to three SCO

connections can be supported by the PCM interface at any one time.

WT11i can operate as the PCM interface master generating an output clock of 128, 256 or 512kHz. When

configured as PCM interface slave, it can operate with an input clock up to 2048kHz. WT11i is compatible with

a variety of clock formats, including Long Frame Sync, Short Frame Sync and GCI timing environments.

It supports 13-bit or 16-bit linear, 8-bit µ-law or A-law companded sample formats at 8ksamples/s and can

receive and transmit on any selection of three of the first four slots following PCM_SYNC. The PCM

configuration options are enabled by setting PSKEY_PCM_CONFIG32.

WT11i interfaces directly to PCM audio devices.

NOTE: Analog audio lines are very sensitive to RF disturbance. Use good layout practices to ensure noise

less audio. Make sure that the return path for the audio signals follows the forward current all the way as close

as possible and use fully differential signals when possible. Do not compromise audio routing.

9.1 PCM Interface Master/Slave

When configured as the master of the PCM interface, WT11i generates PCM_CLK and PCM_SYNC.

Figure 26: PCM Interface Master

When configured as the Slave of the PCM interface, WT11i accepts PCM_CLK rates up to 2048kHz.

Bluegiga Technologies Oy

Page 32 of 46

Figure 27: PCM Interface Slave

9.2 Long Frame Sync

Long Frame Sync is the name given to a clocking format that controls the transfer of PCM data words or

samples. In Long Frame Sync, the rising edge of PCM_SYNC indicates the start of the PCM word. When

WT11i is configured as PCM master, generating PCM_SYNC and PCM_CLK, then PCM_SYNC is 8-bits long.

When WT11i is configured as PCM Slave, PCM_SYNC may be from two consecutive falling edges of

PCM_CLK to half the PCM_SYNC rate, i.e., 62.5s long.

Figure 28: Long Frame Sync (Shown with 8-bit Companded Sample)

WT11i samples PCM_IN on the falling edge of PCM_CLK and transmits PCM_OUT on the rising edge.

PCM_OUT may be configured to be high impedance on the falling edge of PCM_CLK in the LSB position or

on the rising edge.

9.3 Short Frame Sync

In Short Frame Sync, the falling edge of PCM_SYNC indicates the start of the PCM word. PCM_SYNC is

always one clock cycle long.

Bluegiga Technologies Oy

Page 33 of 46

Figure 29: Short Frame Sync (Shown with 16-bit Sample)

As with Long Frame Sync, WT11i samples PCM_IN on the falling edge of PCM_CLK and transmits

PCM_OUT on the rising edge. PCM_OUT may be configured to be high impedance on the falling edge of

PCM_CLK in the LSB position or on the rising edge.

9.4 Multi-slot Operation

More than one SCO connection over the PCM interface is supported using multiple slots. Up to three SCO

connections can be carried over any of the first four slots.

Figure 30: Multi-slot Operation with Two Slots and 8-bit Companded Samples

9.5 GCI Interface

WT11i is compatible with the GCI, a standard synchronous 2B+D ISDN timing interface. The two 64kbits/s B

channels can be accessed when this mode is configured.

Bluegiga Technologies Oy

Page 34 of 46

Figure 31: GCI Interface

The start of frame is indicated by the rising edge of PCM_SYNC and runs at 8kHz. With WT11i in Slave mode,

the frequency of PCM_CLK can be up to 4.096MHz.

9.6 Slots and Sample Formats

WT11i can receive and transmit on any selection of the first four slots following each sync pulse. Slot

durations can be either 8 or 16 clock cycles. Durations of 8 clock cycles may only be used with 8-bit sample

formats. Durations of 16 clocks may be used with 8-bit, 13-bit or 16-bit sample formats.

WT11i supports 13-bit linear, 16-bit linear and 8-bit -law or A-law sample formats. The sample rate is

8ksamples/s. The bit order may be little or big endian. When 16-bit slots are used, the 3 or 8 unused bits in

each slot may be filled with sign extension, padded with zeros or a programmable 3-bit audio attenuation

compatible with some Motorola codecs.

Bluegiga Technologies Oy

Page 35 of 46

Figure 32: 16-bit Slot Length and Sample Formats

9.7 Additional Features

WT11i has a mute facility that forces PCM_OUT to be 0. In master mode, PCM_SYNC may also be forced to

0 while keeping PCM_CLK running which some codecs use to control power down.

9.8 PCM_CLK and PCM_SYNC Generation

WT11i has two methods of generating PCM_CLK and PCM_SYNC in master mode. The first is generating

these signals by DDS from BlueCore4-External internal 4MHz clock. Using this mode limits PCM_CLK to 128,

256 or 512kHz and PCM_SYNC to 8kHz. The second is generating PCM_CLK and PCM_SYNC by DDS from

an internal 48MHz clock (which allows a greater range of frequencies to be generated with low jitter but

consumes more power). This second method is selected by setting bit 48M_PCM_CLK_GEN_EN in

PSKEY_PCM_CONFIG32. When in this mode and with long frame sync, the length of PCM_SYNC can be

either 8 or 16 cycles of PCM_CLK, determined by LONG_LENGTH_SYNC_EN in PSKEY_PCM_CONFIG32.

The Equation XXX describes PCM_CLK frequency when being generated using the internal 48MHz clock:

Bluegiga Technologies Oy

Page 36 of 46

Equation 2: PCM_CLK Frequency When Being Generated Using the Internal 48MHz Clock

The frequency of PCM_SYNC relative to PCM_CLK can be set using Equation XXX:

Equation 3: PCM_SYNC Frequency Relative to PCM_CLK

CNT_RATE, CNT_LIMIT and SYNC_LIMIT are set using PSKEY_PCM_LOW_JITTER_CONFIG. As an

example,

to

generate

PCM_CLK

at

512kHz

with

PCM_SYNC

at

8kHz,

set

PSKEY_PCM_LOW_JITTER_CONFIG to 0x08080177.

9.9 PCM Configuration

The PCM configuration is set using two PS Keys, PSKEY_PCM_CONFIG32 detailed in Table 12 and

PSKEY_PCM_LOW_JITTER_CONFIG in Table 13. The default for PSKEY_PCM_CONFIG32 is 0x00800000,

i.e., first slot following sync is active, 13-bit linear voice format, long frame sync and interface master

generating 256kHz PCM_CLK from 4MHz internal clock with no tri-state of PCM_OUT.

Bluegiga Technologies Oy

Page 37 of 46

Name

Bit position

Description

0

Set to 0

-

0 selects Master mode with internal generation of PCM_CLK and

PCM_SYNC. 1 selects Slave mode requiring externally generated

PCM_CLK and PCM_SYNC. This should be set to 1 if

48M_PCM_CLK_GEN_EN (bit 11) is set.

SLAVE MODE EN

1

0 selects long frame sync (rising edge indicates start of frame), 1

selects short frame sync (falling edge indicates start of frame).

SHORT SYNC EN

-

2

3

Set to 0

0 selects padding of 8 or 13-bit voice sample into a 16- bit slot by

inserting extra LSBs, 1 selects sign extension. When padding is

selected with 3-bit voice sample, the 3 padding bits are the audio gain

setting; with 8-bit samples the 8 padding bits are zeroes.

0 transmits and receives voice samples MSB first, 1 uses LSB first.

SIGN EXTENDED

EN

4

LSB FIRST EN

5

6

0 drives PCM_OUT continuously, 1 tri-states PCM_OUT immediately

after the falling edge of PCM_CLK in the last bit of an active slot,

assuming the next slot is not active.

TX TRISTATE EN

0 tristates PCM_OUT immediately after the falling edge of PCM_CLK

in the last bit of an active slot, assuming the next slot is also not active.

1 tristates PCM_OUT after the rising edge of PCM_CLK.

TX TRISTATE

RISING EDGE EN

7

8

0 enables PCM_SYNC output when master, 1 suppresses PCM_SYNC

whilst keeping PCM_CLK running. Some CODECS utilize this to enter

a low power state.

SYNC SUPPRESS

EN

GCI MODE EN

MUTE EN

9

10

1 enables GCI mode.

1 forces PCM_OUT to 0.

0 sets PCM_CLK and PCM_SYNC generation via DDS from internal 4

MHz clock, as for BlueCore4-External. 1 sets PCM_CLK and

PCM_SYNC generation via DDS from internal 48 MHz clock.

48M PCM CLK GEN

EN

11

12

0 sets PCM_SYNC length to 8 PCM_CLK cycles and 1 sets length to

16 PCM_CLK cycles. Only applies for long frame sync and with

48M_PCM_CLK_GEN_EN set to 1.

LONG LENGTH

SYNC EN

-

[20:16]

[22:21]

Set to 0b00000.

Selects 128 (0b01), 256 (0b00), 512 (0b10) kHz PCM_CLK frequency

when master and 48M_PCM_CLK_GEN_EN (bit 11) is low.

MASTER CLK RATE

ACTIVE SLOT

[26:23]

[28:27]

Default is 0001. Ignored by firmaware

Selects between 13 (0b00), 16 (0b01), 8 (0b10) bit sample with 16

cycle slot duration 8 (0b11) bit sample 8 cycle slot duration.

SAMPLE_FORMAT

Table 13: PSKEY_PCM_CONFIG32 description

Name

Bit position

Description

CNT LIMIT

CNT RATE

SYNC LIMIT

[12:0]

[23:16]

[31:24]

Sets PCM_CLK counter limit

Sets PCM_CLK count rate.

Sets PCM_SYNC division relative to PCM_CLK.

Table 14: PSKEY_PCM_LOW_JITTER_CONFIG Description

Bluegiga Technologies Oy

Page 38 of 46

10 I/O Parallel Ports

Six lines of programmable bidirectional input/outputs (I/O) are provided. All the PIO lines are power from VDD.

PIO lines can be configured through software to have either weak or strong pull-ups or pull-downs. All PIO

lines are configured as inputs with weak pull-downs at reset. Any of the PIO lines can be configured as

interrupt request lines or as wake-up lines from sleep modes.

WT11i has a general purpose analogue interface pin AIO[1]. This is used to access internal circuitry and

control signals. It may be configured to provide additional functionality.

Auxiliary functions available via AIO[1] include an 8-bit ADC and an 8-bit DAC. Typically the ADC is used for

battery voltage measurement. Signals selectable at this pin include the band gap reference voltage and a

variety of clock signals: 48, 24, 16, 8MHz and the XTAL clock frequency. When used with analogue signals,

the voltage range is constrained by the analogue supply voltage internally to the module (1.8V). When

configured to drive out digital level signals (e.g., clocks), the output voltage level is determined by VDD.

10.1PIO Defaults

Bluegiga cannot guarantee that these terminal functions remain the same. Refer to the software release note

for the implementation of these PIO lines, as they are firmware build-specific.

Bluegiga Technologies Oy

Page 39 of 46

11 Reset

WT11i may be reset from several sources: RESET pin, power on reset, a UART break character or via

software configured watchdog timer. The RESET pin is an active high reset and is internally filtered using the

internal low frequency clock oscillator. A reset will be performed between 1.5 and 4.0ms following RESETB

being active. It is recommended that RESET be applied for a period greater than 5ms.

The power on reset occurs when the VDD_CORE supply internally to the module falls below typically 1.5V

and is released when VDD_CORE rises above typically 1.6V. At reset the digital I/O pins are set to inputs for

bidirectional pins and outputs are tri-state.

WT11i has an internal power on reset circuit which holds the module in reset until all the supply voltages have

stabilized. The reset pin must be either floating or connected to high impedance during power on in order for

the power on reset circuit to work properly. If the reset pin is not connected to high impedance during power

on, then one must ensure that the reset is kept active until all the supply voltages have stabilized to prevent

the flash memory getting corrupted.

11.1Pin States on Reset

PIN NAME

PIO[7:2]

PCM_OUT

PCM_IN

PCM_SYNC

PCM_CLK

UART_TX

UART_RX

UART_RTS

UART_CTS

USB+

STATE

Input with weak pull-down

Tri-staed with weak pull-down

Input with weak pull-down

Output tristated with weak pull-up

Input with weak pull-down

Output tristated with weak pull-up

Input with weak pull-down

Output tristated with weak pull-down

Output, driving low

USB-

SPI_CSB

SPI_CLK

SPI_MOSI

SPI_MISO

AIO[1]

Table 15: Pin States on Reset

Bluegiga Technologies Oy

Page 40 of 46

12 Certifications

WT11i-A is compliant to the following specifications.

12.1Bluetooth

WT11i-A module is Bluetooth qualified and listed as a controller subsystem and it is Bluetooth compliant to the

following profiles of the core spec version 2.1/2.1+EDR.



Baseband

HCI

Link Manager

Radio

12.2 FCC and IC

For FCC, if the TX power of a Bluetooth module is higher than 13.9 dBm and the end product is used closer

than 20 cm from a human body, RF exposure has to be evaluated in the end product. For IC there is a similar

requirement except the power limit is 12 dBm. This might require either an own FCC ID for the end product, or

Class 2 Permissive Change to the grant of WT11i. WT11i is certified with both 12 dBm (FCC ID:

QOQWT11IA) and 17 dBm (FCC ID: QOQWT11I) TX power. When using QOQWT11IA, RF exposure

evaluation is not needed, but the TX power must be limited to 12 dBm.

WT11i complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End

users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter

must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance

with FCC test procedures. This transmitter is considered as mobile device. If TX power is set to 17 dBm, class

2 permissive change is required to allow portable use in a known host. Please contact support@bluegiga.com

for detailed information.

Bluegiga Technologies Oy

Page 41 of 46

IC Statements:

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and

maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio

interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically

radiated power (e.i.r.p.) is not more than that necessary for successful communication.

OEM Responsibilities to comply with FCC and Industry Canada Regulations

The WT11i-A module has been certified for integration into products only by OEM integrators under the

following conditions:



The antenna(s) must be installed such that a minimum separation distance of 20cm is maintained

between the radiator (antenna) and all persons at all times.



The transmitter module must not be co-located or operating in conjunction with any other antenna or

transmitter.

As long as the two conditions above are met, further transmitter testing will not be required. However, the

OEM integrator is still responsible for testing their end-product for any additional compliance requirements

required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).

IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-

location with another transmitter), then the FCC and Industry Canada authorizations are no longer considered

valid and the FCC ID and IC Certification Number can not be used on the final product. In these

circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the

transmitter) and obtaining a separate FCC and Industry Canada authorization.

End Product Labeling

The WT11i-A Module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC

Certification Number are not visible when the module is installed inside another device, then the outside of the

device into which the module is installed must also display a label referring to the enclosed module. In that

case, the final end product must be labeled in a visible area with the following:

“Contains Transmitter Module FCC ID: QOQWT11IA”

“Contains Transmitter Module IC: 5123A-BGTWT11IA”

or

“Contains FCC ID: QOQWT11IA

“Contains IC: 5123A-BGTWT11IA”

The OEM of the WT11i-A module must only use the approved antenna.

The OEM integrator has to be aware not to provide information to the end user regarding how to install or

remove this RF module or change RF related parameters in the user manual of the end product.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, the

antenna(s) used for this transmitter must be installed such that a minimum separation distance of

20cm is maintained between the radiator (antenna) and all persons at all times and must not be co-

located or operating in conjunction with any other antenna or transmitter.

Bluegiga Technologies Oy

Page 42 of 46

12.2.1 FCC et IC

Cet appareil est conforme à l’alinéa 15 des règles de la FCC. Deux conditions sont à respecter lors de

son utilisation :

(1) cet appareil ne doit pas créer d’interférence susceptible de causer un quelconque dommage et,

(2) cet appareil doit accepter toute interférence, quelle qu’elle soit, y compris les interférences

susceptibles d’entraîner un fonctionnement non requis.

Déclaration de conformité FCC d’exposition aux radiofréquences (RF):

Ce matériel respecte les limites d’exposition aux radiofréquences fixées par la FCC dans un environnement

non contrôlé. Les utilisateurs finaux doivent se conformer aux instructions d’utilisation spécifiées afin de

satisfaire aux normes d’exposition en matière de radiofréquence. Ce transmetteur ne doit pas être installé ni

utilisé en concomitance avec une autre antenne ou un autre transmetteur. Ce transmetteur est assimilé à un

appareil mobile et ne doit pas être utilisé à moins de 20 cm du corps humain. Afin de permettre un usage

mobile dans le cadre d’un matériel de catégorie 2, il est nécessaire de procéder à quelques adaptations. Pour

des informations détaillées, veuillez contacter le support technique Bluegiga : support@bluegiga.com.

Déclaration de conformité IC :

Ce matériel respecte les standards RSS exempt de licence d’Industrie Canada. Son utilisation est soumise

aux deux conditions suivantes :

(1) l’appareil ne doit causer aucune interférence, et

(2) l’appareil doit accepter toute interférence, quelle qu’elle soit, y compris les interférences

susceptibles d’entraîner un fonctionnement non requis de l’appareil.

Selon la réglementation d’Industrie Canada, ce radio-transmetteur ne peut utiliser qu’un seul type d’antenne

et ne doit pas dépasser la limite de gain autorisée par Industrie Canada pour les transmetteurs. Afin de

réduire les interférences potentielles avec d’autres utilisateurs, le type d’antenne et son gain devront être

définis de telle façon que la puissance isotrope rayonnante équivalente (EIRP) soit juste suffisante pour

permettre une bonne communication.

Les responsabilités de l’intégrateur afin de satisfaire aux réglementations de la FCC et d’Industrie

Canada :

Les modules WT11i ont été certifiés pour entrer dans la fabrication de produits exclusivement réalisés par des

intégrateurs dans les conditions suivantes :



L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance

minimum de 20cm entre la source de radiation (l’antenne) et toute personne physique.

Le module transmetteur ne doit pas être installé ou utilisé en concomitance avec une autre antenne

ou un autre transmetteur.



Bluegiga Technologies Oy

Page 43 of 46

Tant que ces deux conditions sont réunies, il n’est pas nécessaire de procéder à des tests supplémentaires

sur le transmetteur. Cependant, l’intégrateur est responsable des tests effectués sur le produit final afin de se

mettre en conformité avec d’éventuelles exigences complémentaires lorsque le module est installé (exemple :

émissions provenant d’appareils numériques, exigences vis-à-vis de périphériques informatiques, etc.) ;

IMPORTANT : Dans le cas où ces conditions ne peuvent être satisfaites (pour certaines configurations ou

installation avec un autre transmetteur), les autorisations fournies par la FCC et Industrie Canada ne sont plus

valables et les numéros d’identification de la FCC et de certification d’Industrie Canada ne peuvent servir pour

le produit final. Dans ces circonstances, il incombera à l’intégrateur de faire réévaluer le produit final

(comprenant le transmetteur) et d’obtenir une autorisation séparée de la part de la FCC et d’Industrie Canada.

Etiquetage du produit final

Chaque module WT11i possède sa propre identification FCC et son propre numéro de certification IC. Si

l’identification FCC et le numéro de certification IC ne sont pas visibles lorsqu’un module est installé à

l’intérieur d’un autre appareil, alors l’appareil en question devra lui aussi présenter une étiquette faisant

référence au module inclus. Dans ce cas, le produit final doit comporter une étiquette placée de façon visible

affichant les mentions suivantes :

« Contient un module transmetteur certifié FCC QOQWT11I »

« Contient un module transmetteur certifié IC 5123A-BGTWT11I »

ou

« Inclut la certification FCC QOQWT11I »

« Inclut la certification IC 5123A-BGTWT11I »

L’intégrateur du module WT11i ne doit utiliser que les antennes répertoriées dans le tableau 21 certifiées pour

ce module.

L’intégrateur est tenu de ne fournir aucune information à l’utilisateur final autorisant ce dernier à installer ou

retirer le module RF, ou bien changer les paramètres RF du module, dans le manuel d’utilisation du produit

final.

Afin de se conformer aux limites de radiation imposées par la FCC et Industry Canada, l’antenne (ou

les antennes) utilisée pour ce transmetteur doit être installée de telle sorte à maintenir une distance

minimum de 20cm à tout instant entre la source de radiation (l’antenne) et les personnes physiques.

En outre, cette antenne ne devra en aucun cas être installée ou utilisée en concomitance avec une

autre antenne ou un autre transmetteur.

Bluegiga Technologies Oy

Page 44 of 46

12.3CE

WT11i meets the requirements of the standards below and hence fulfills the requirements of EMC Directive

89/336/EEC as amended by Directives 92/31/EEC and 93/68/EEC within CE marking requirement.



EMC (immunity only) EN 301 489-17 V.1.3.3 in accordance with EN 301 489-1 V1.8.1

Radiated emissions EN 300 328 V1.7.1

12.4 MIC Japan

WT11i has type approval in Japan with identification code R 209- J00053

Bluegiga Technologies Oy

Page 45 of 46

13 Contact Information

Sales:

sales@bluegiga.com

Technical support:

Orders:

http://techforum.bluegiga.com

orders@bluegiga.com

WWW:

www.bluegiga.com

www.bluegiga.hk

Head Office / Finland:

Phone: +358-9-4355 060

Fax: +358-9-4355 0660

Sinikalliontie 5A

02630 ESPOO

FINLAND

Postal address / Finland:

Sales Office / USA:

P.O. BOX 120

02631 ESPOO

FINLAND

Phone: +1 770 291 2181

Fax: +1 770 291 2183

Bluegiga Technologies, Inc.

3235 Satellite Boulevard, Building 400, Suite 300

Duluth, GA, 30096, USA

Sales Office / Hong-Kong:

Phone: +852 3182 7321

Fax: +852 3972 5777

Bluegiga Technologies, Inc.

19/F Silver Fortune Plaza, 1 Wellington Street,

Central Hong Kong

Bluegiga Technologies Oy

Page 46 of 46

厂商	型号	描述	页数
SICK	WT100-2N1419	[ Photoelectric proximity sensor ]	7 页
SICK	WT100-2P1419	[ Photoelectric proximity sensor ]	7 页
ETC	WT101	模拟IC\n[ Analog IC ]	2 页
ETC	WT102	模拟IC\n[ Analog IC ]	2 页
ETC	WT103	模拟IC\n[ Analog IC ]	2 页
WEITRON	WT1117A	1.0A低压差精密线性稳压器[ 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ]	11 页
WEITRON	WT1117AD-15	1.0A低压差精密线性稳压器[ 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ]	11 页
WEITRON	WT1117AD-18	1.0A低压差精密线性稳压器[ 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ]	11 页
WEITRON	WT1117AD-25	1.0A低压差精密线性稳压器[ 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ]	11 页
WEITRON	WT1117AD-285	1.0A低压差精密线性稳压器[ 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ]	11 页
