QTHA-1FB0

型号:

QTHA-1FB0

品牌:

RALSTON[ RALSTON INSTRUMENTS. ]

页数:

1 页

PDF大小:

503 K

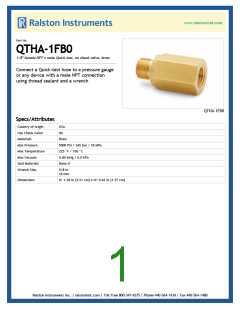

Part No.
QTHA-1FB0
1/8" female NPT x male Quick-test, no check-valve, brass
Connect a Quick-test hose to a pressure gauge
or any device with a male NPT connection
using thread sealant and a wrench
QTHA-1FB0
Specs/Attributes
Country of origin
Has Check Valve
Materials
USA
No
Brass
Max Pressure
Max Temperature
Max Vacuum
5000 PSI / 345 bar / 35 MPa
225 °F / 105 °C
0.00 InHg / 0.0 kPa
Buna-N
Seal Materials
Wrench Size
5/8 In
16 mm
Dimensions
H: 1.38 in (3.51 cm) x W: 0.62 in (1.57 cm)
Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
