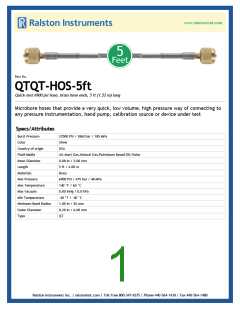

QTQT-HOS-5FT_19

型号:

QTQT-HOS-5FT_19

品牌:

RALSTON[ RALSTON INSTRUMENTS. ]

页数:

1 页

PDF大小:

334 K

5
Feet
Part No.
QTQT-HOS-5ft
Quick-test 6900 psi hose, brass hose ends, 5 ft (1.52 m) long
Microbore hoses that provide a very quick, low volume, high pressure way of connecting to
any pressure instrumentation, hand pump, calibration source or device under test
Specs/Attributes
Burst Pressure
27000 PSI / 1860 bar / 185 MPa
Color
Silver
Country of origin
Fluid Media
USA
Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Inner Diameter
Length
0.08 In / 3.00 mm
5 ft / 2.00 m
Materials
Brass
Max Pressure
Max Temperature
Max Vacuum
Min Temperature
Minimum Bend Radius
Outer Diameter
Type
6900 PSI / 475 bar / 48 MPa
140 °F / 60 °C
0.00 InHg / 0.0 kPa
-40 °F / -40 °C
1.00 In / 26 mm
0.20 In / 6.00 mm
QT
Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
