QTHA-1FS1

型号:

QTHA-1FS1

品牌:

RALSTON[ RALSTON INSTRUMENTS. ]

页数:

1 页

PDF大小:

322 K

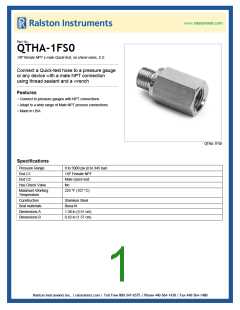

Part No.
QTHA-1FS0
1/8" female NPT x male Quick-test, no check-valve, S.S.
Connect a Quick-test hose to a pressure gauge
or any device with a male NPT connection
using thread sealant and a wrench
Features
Connect to pressure gauges with NPT connections
Adapt to a wide range of Male NPT process connections
Made in USA
QTHA-1FS0
Specifications
Pressure Range
End C1
0 to 5000 psi (0 to 345 bar)
1/8" Female NPT
Male Quick-test
No
End C2
Has Check Valve
Maximum Working
Temperature
225 °F (107 °C)
Construction
Seal materials
Dimensions A
Dimensions B
Stainless Steel
Buna-N
1.38 in (3.51 cm)
0.62 in (1.57 cm)
Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
