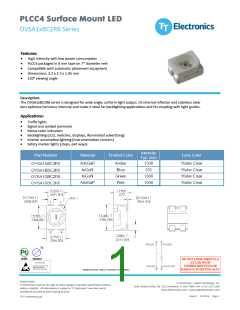

OVSA1xBC2R8 Series
Features:
High intensity with low power consumpꢁon
PLCC4 packaged in 8 mm tape on 7” diameter reel
Compaꢁble with automaꢁc placement equipment
Dimensions: 3.2 x 2.7 x 1.95 mm
120° viewing angle
Descripꢀon:
The OVSA1xBC2R8 series is designed for wide angle, uniform light output. Its internal reflector and colorless clear
lens opꢁmize luminous intensity and make it ideal for backlighꢁng applicaꢁons and for coupling with light guides.
Applicaꢀons:
Traffic lights
Signal and symbol luminaire
Mono-color indicators
Backlighꢁng (LCD, switches, displays, illuminated adverꢁsing)
Interior automoꢁve lighꢁng (instrumentaꢁon clusters)
Safety marker lights (steps, exit ways)
5a
Moisture
RoHS
DO NOT LOOK DIRECTLY
AT LED WITH
UNSHIELDED EYES OR
DAMAGE TO RETINA MAY
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
www.ꢀelectronics.com | sensors@ꢀelectronics.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue B 11/2016 Page 1
© TT electronics plc
