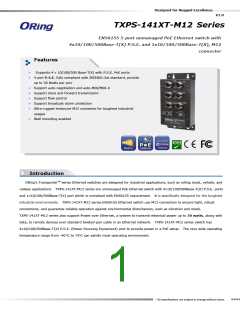

Designed for Rugged Excellence
V1.0
Specifications
TXPS-141XT-M12
TXPS-141XT-M12-24V
TXPS-141XT-M12-MV
ORing Switch Model
Physical Ports
10/100/500Base-T(X) with P.S.E.
Ports in M12 Auto MDI/MDIX
4 x M12 connector (4-pin M12 D-coding)
1 x M12 connector (4-pin M12 D-coding)
10/100/500Base-T(X) Port in M12
Auto MDI/MDIX
Technology
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
Ethernet Standards
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Store-and-Forward
Processing
LED indicators
Power indicator
Green : Power LED x 1
Top Green for port Link/Act at 10/100Mbps
Middle Green for port Link/Act at 500Mbps
Bottom Blue for PoE indicator
10/100/500Base-T(X) M12 port with
P.S.E. indicator
10/100/500Base-T(X)
indicator
M12
port
Top Green for port Link/Act at 10/100Mbps
Bottom Green for port Link/Act at 500Mbps
Power
50 ~ 57VDC power input on M12
connector (5-pin M12 A-coding)
12~57VDC power input on M12
connector (5-pin M12 A-coding)
72~110VDC power input on M12
connector (5-pin M12 A-coding)
Input Power
Power Consumption (Typ.)
PoE Output Power
1 Watts
2 Watts
5 Watts
60 Watts (12~24VDC)
Watts (24~57VDC)
/ 120
120 Watts
60 Watts
Overload Current Protection
Reverse Polarity Protection
Physical Characteristic
Enclosure
Present
Present
IP-40
Dimension (W x D x H)
Weight (g)
88.9 x 40 x 178.2 mm
511
88.9 x 55 x 178.2 mm
643
88.9 x 55 x 178.2 mm
771
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
-40 to 85oC (-40 to 185oF)
-40 to 75oC (-40 to 167oF)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
EMS
Shock
IEC60068-2-27, EN61373
IEC60068-2-32
Free Fall
Vibration
Safety
IEC60068-2-6, EN61373
EN60950-1
Warranty
5 years
* All specifications are subject to change without notice.
