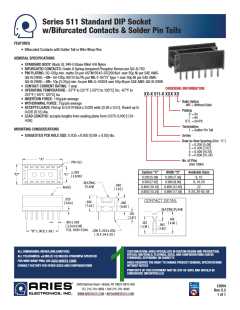

Series 511 Standard DIP Socket
w/Bifurcated Contacts & Solder Pin Tails
FEATꢁRES
•ꢀ BifurcatedꢀContactsꢀwithꢀSolderꢀTailꢀorꢀWireꢀWrapꢀPins
ꢀ
GENERAL SPECIFICATIONS
ꢀ
ꢀ
ꢀ
•ꢀ STANDARD BODY:ꢀBlackꢀULꢀ94V-0ꢀGlass-filledꢀ4/6ꢀNylon
•ꢀ BIFURCATED CONTACTS:ꢀGradeꢀAꢀSpring-temperedꢀPhosphorꢀBronzeꢀperꢀQQ-B-750
•ꢀ PIN PLATING:ꢀ50-130µꢀmin.ꢀmatteꢀSnꢀperꢀASTMꢀB545-97(2004)e1ꢀoverꢀ50µꢀNiꢀperꢀSAEꢀAMS-
QQ-N-290B;ꢀ–OR–ꢀ50-130µꢀ90/10ꢀSn/PbꢀperꢀMIL-T-10727ꢀTypeꢀ1ꢀoverꢀ50µꢀNiꢀperꢀSAEꢀAMS-
QQ-N-290B;ꢀ–OR–ꢀ10µꢀ[0.25µ]ꢀmin.ꢀAuꢀperꢀMIL-G-45204ꢀoverꢀ50µꢀNiꢀperꢀSAEꢀAMS-QQ-N-290B
•ꢀ CONTACT CURRENT RATING:ꢀ1ꢀamp
ꢀ
ꢀ
ORDERING INFORMATION
XX-X 511-X XXX XX
•ꢀ OPERATING TEMPERATURE:ꢀ-67°Fꢀtoꢀ221°Fꢀ[-55°Cꢀtoꢀ105°C]ꢀSn;ꢀ-67°Fꢀtoꢀ
257°Fꢀ[-55°Cꢀ125°C]ꢀAu
•ꢀ INSERTION FORCE:ꢀ110g/pinꢀaverage
•ꢀ WITHDRAWAL FORCE:ꢀ75g/pinꢀaverage
•ꢀ ACCEPTS LEADS:ꢀFlatꢀupꢀtoꢀ0.014ꢀthickꢀxꢀ0.020ꢀwideꢀ[0.36ꢀxꢀ0.51],ꢀRoundꢀupꢀtoꢀ
0.020 [0.51] dia.
•ꢀ LEAD LENGTHS:ꢀacceptsꢀlengthsꢀfromꢀseatingꢀplaneꢀfromꢀ0.075-0.160ꢀ[1.91-
4.06]
ꢀ
ꢀ
ꢀ
Rails Option
ꢀ
WRꢀ=ꢀWithoutꢀRails
Plating
ꢀ
ꢀ
0ꢀ=ꢀSn
ꢀ
1ꢀ=ꢀAu
ꢀ 0TLꢀ=ꢀSn/Pb
Termination
MOꢁNTING CONSIDERATIONS
ꢀ
1ꢀ=ꢀSolderꢀPinꢀTail
ꢀ
•ꢀ SUGGESTED PCB HOLE SIZE: 0.035 0.002 [0.89 0.05] dia.
Series
Row-to-Row Spacingꢀ(Dim.ꢀ“C”)
2 = 0.200 [5.08]
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
No. of Pins
ꢀ
(SeeꢀTable)
Centers “C”
0.200 [5.08]
0.300 [7.62]
Width “D”
0.290 [7.36]
0.390 [9.90]
Available Sizes
8, 10
8, 14-20
0.400 [10.16] 0.490 [12.45]
0.600 [15.24] 0.690 [17.54]
22
8-24, 28-40, 48
ALL DIMENSIONS: INCHES [MILLIMETERS]
CꢁSTOMIZATION: ARIES SPECIALIZES IN CꢁSTOM DESIGN AND PRODꢁCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGꢁRATIONS CAN BE
FꢁRNISHED, DEPENDING ON QꢁANTITY.
ALL TOLERANCES: 0.005 [0.1ꢀ] ꢁNLESS OTHERWISE SPECIFIED
FOR WIRE WRAP PINS, SEE DATA SHEETS 12005
ARIES RESERVES THE RIGHT TO CHANGE PRODꢁCT GENERAL SPECIFICATIONS
WITHOꢁT NOTICE
CONSꢁLT FACTORY FOR OTHER SIZES AND CONFIGꢁRATIONS
PRINTOꢁTS OF THIS DOCꢁMENT MAY BE OꢁT-OF-DATE AND SHOꢁLD BE
CONSIDERED ꢁNCONTROLLED
•
2609 Bartram Road Bristol, PA 19007-6810 USA
12004
Rev. 5.2
1 of 1
•
TEL 215-781-9956 FAX 215-781-9845
•
