IXFP24N65X_18

型号:

IXFP24N65X_18

品牌:

ISC[ INCHANGE SEMICONDUCTOR COMPANY LIMITED ]

页数:

2 页

PDF大小:

313 K

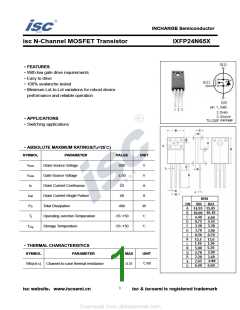

INCHANGE Semiconductor
isc N-Channel MOSFET Transistor
IXFP24N65X
·FEATURES
·With low gate drive requirements
·Easy to drive
·100% avalanche tested
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
·APPLICATIONS
·Switching applications
·ABSOLUTE MAXIMUM RATINGS(Ta=25)
SYMBOL
VDSS
VGSS
ID
PARAMETER
VALUE
600
UNIT
V
Drain-Source Voltage
Gate-Source Voltage
±30
V
Drain Current-Continuous
Drain Current-Single Pulsed
Total Dissipation
24
A
IDM
48
A
PD
400
W
Tj
Operating Junction Temperature
Storage Temperature
-55~150
-55~150
Tstg
·THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
MAX
UNIT
/W
Rth(ch-c) Channel-to-case thermal resistance
0.31
1
isc websitewww.iscsemi.cn
isc & iscsemi is registered trademark
INCHANGE Semiconductor
isc N-Channel MOSFET Transistor
IXFP24N65X
ELECTRICAL CHARACTERISTICS
TC=25unless otherwise specified
SYMBOL
BVDSS
VGS(th)
RDS(on)
IGSS
PARAMETER
CONDITIONS
MIN
600
2.5
TYP
MAX
UNIT
V
Drain-Source Breakdown Voltage VGS=0V; ID= 0.25mA
Gate Threshold Voltage
VDS=±30V; ID=2.5mA
VGS= 10V; ID=12A
4.5
175
V
Drain-Source On-Resistance
Gate-Source Leakage Current
Drain-Source Leakage Current
Diode forward voltage
mΩ
μA
μA
V
VGS= ±30V;VDS= 0V
±0.1
VDS= 600V; VGS= 0V;@Tc=25℃
Tc=125℃
20
750
IDSS
VSDF
ISD=24A, VGS = 0 V
1.4
2
isc websitewww.iscsemi.cn
isc & iscsemi is registered trademark
