JFW Industries, Inc.
Phone: 317-887-1340
sales@jfwindustries.com
www.jfwindustries.com

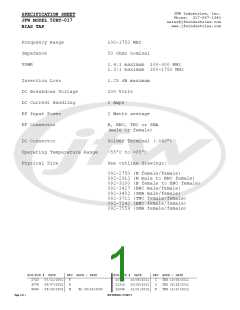

SPECIFICATION SHEET
JFW MODEL 50BT-017
BIAS TAP
Frequency Range
Impedance
VSWR
100-1750 MHz
50 Ohms nominal
1.4:1 maximum 100-300 MHz
1.3:1 maximum 300-1750 MHz
Insertion Loss
1.25 dB maximum
200 Volts
DC Breakdown Voltage
DC Current Handling
RF Input Power
2 Amps
2 Watts average
RF Connector
N, BNC, TNC or SMA
(male or female)
DC Connector
Solder Terminal (.040")
-55ºC to +85ºC
Operating Temperature Range
Physical Size
See outline drawings:
092-2750 (N female/female)
092-2912 (N male to BNC female)
092-3100 (N female to BNC female)
092-3427 (BNC male/female)
092-3452 (SMA male/female)
092-3712 (TNC female/female)
092-7242 (BNC female/female)
092-7559 (SMA female/female)
ECR/ECN # DATE REV APPR / DATE
2723 07/11/2001 F
3076 08/07/2002 G
9999 09/16/2002 H SL 09/16/2002
ECR/ECN # DATE REV APPR / DATE
20728 10/05/2011 I TRS 10/05/2011
21314 02/28/2012 J TRS 02/28/2012
22296 12/21/2012 K TRS 12/21/2012
Page 1 of 1
JFW FORM E-7-F REV F
