NX5P3090

型号：

NX5P3090

品牌：

NXP[ NXP ]

页数：

33 页

PDF大小：

1311 K

下载PDF手册

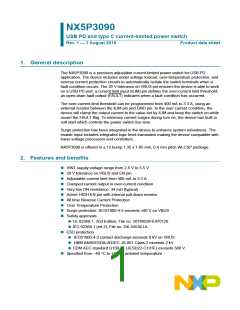

NX5P3090
USB PD and type C current-limited power switch
Rev. 1 — 1 August 2016
Product data sheet
1. General description
The NX5P3090 is a precision adjustable current-limited power switch for USB PD
application. The device includes under voltage lockout, over-temperature protection, and
reverse current protection circuits to automatically isolate the switch terminals when a
fault condition occurs. The 29 V tolerance on VBUS pin ensures the device is able to work
on a USB PD port; a current limit input (ILIM) pin defines the over-current limit threshold;
an open-drain fault output (FAULT) indicates when a fault condition has occurred.
The over-current limit threshold can be programmed from 400 mA to 3.3 A, using an
external resistor between the ILIM pin and GND pin. In the over current condition, the
device will clamp the output current to the value set by ILIM and keep the switch on while
assert the FAULT flag. To minimize current surges during turn on, the device has built in
soft start which controls the power switch rise time.
Surge protection has been integrated in the device to enhance system robustness. The
enable input includes integrated logic level translation making the device compatible with
lower voltage processors and controllers.
NX5P3090 is offered in a 12 bump 1.35 x 1.65 mm, 0.4 mm pitch WLCSP package.
2. Features and benefits
VINT supply voltage range from 2.5 V to 5.5 V
29 V tolerance on VBUS and EN pin
Adjustable current limit from 400 mA to 3.3 A
Clamped current output in over-current condition
Very low ON resistance: 34 m(typical)
Active HIGH EN pin with internal pull down resistor
All time Reverse Current Protection
Over Temperature Protection
Surge protection: IEC61000-4-5 exceeds ±80 V on VBUS
Safety approvals
UL 62368-1, 2nd Edition, File no. 20160526-E470128
IEC 62368-1 (ed.2), File no. DK-54536-UL
ESD protection
IEC61000-4-2 contact discharge exceeds 8 kV on VBUS
HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2 kV
CDM AEC standard Q100-01 (JESD22-C101E) exceeds 500 V
Specified from 40 C to +85 C ambient temperature
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
3. Applications
Notebook and Ultrabook
USB PD and Type C port/hubs
Tablet and Smart phone
4. Ordering information
Table 1.
Ordering information
Type number
Topside
marking
Package
Name
Description
Version
NX5P3090UK
X5PT2
WLCSP12
wafer level chip-scale package; 12 bumps; 1.65 x 1.35 x
0.525 mm; 0.4 mm pitch (backside coating included)
SOT1390-5
4.1 Ordering options
Table 2.
Ordering options
Type number
Orderable
part number
Package
Packing method
Minimum
order quantity
Temperature
Tamb = 40 C to +85 C
NX5P3090UK
NX5P3090UKZ
WLCSP12
REEL 7" Q1/T1
*SPECIAL MARK
CHIPS DP
3000
5. Marking
Table 3.
Marking
Line
A
Marking
Description
X5PT2
basic type name
B
mmmmm
Z5YWW
wafer lot code (mmmmm)
manufacturing code
C
Z = foundry location
5 = assembly location
Y = assembly year code
WW = assembly week code
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
2 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
6. Functional diagram
REVERSE-CURRENT
PROTECTION
ILIM
OVER-CURRENT
CLAMPING
VINT
VBUS
UVLO
EN
SURGE
PROTECTION
CONTROL
Rpd
FAULT
THERMAL
SHUTDOWN
aaa-024124
Fig 1. Logic diagram
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
3 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
7. Pinning information
7.1 Pinning
ball A1
index area
NX5P3090
NX5P3090
1
2
3
1
2
3
A
B
C
D
A
B
C
D
EN
/FAULT ILIM
VINT GND
VBUS GND
VINT
VINT
VBUS VBUS GND
Transparent top view
Transparent top view
aaa-024125
aaa-024126
Fig 2. Pin configuration
Fig 3. Pin map
7.2 Pin description
Table 4.
Symbol
Pin description
Pin
Description
VBUS
ILIM
C2, D1, D2
A3
power output; 29 V tolerance
current limiter setting. connects a resistor to GND to set the threshold
FAULT
EN
A2
fault condition indicator (open-drain output)
enable input (active HIGH)
ground (0 V)
A1
GND
VINT
B3, C3, D3
B1, C1, B2
power input
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
4 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
8. Functional description
Table 5.
Function table[1]
VINT
EN
X
VBUS
FAULT
Switch
<2.5V
X
Z
Z
Z
L
L
L
under voltage lockout, switch open
disabled; switch open
L
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
X
H
H
H
H
VBUS=VINT
enabled; switch closed
0V to VINT
over-current, clamped current output, switch closed
reverse current; switch open
Over-temperature; switch open
VBUS>VINT+40mV (>4ms)
Z
[1] H = HIGH voltage level; L = LOW voltage level.
8.1 EN Input
When the EN pin is set LOW, the N-channel MOSFET will be disabled, the device will
enter low-power mode disabling all protection circuits and setting the FAULT pin high
impedance. When EN is set HIGH, all protection circuits will be enabled and then, if no
fault conditions exist, the N-channel MOSFET will be turn on. There is a 100 us de-glitch
time on EN pin from LOW to HIGH.
8.2 Under-voltage lock-out
Independently of the logic level on the EN pin, the under-voltage lockout (UVLO) circuit
disables the N-channel MOSFET and enters low power mode until the input voltage
reaches the UVLO turn-on threshold level VUVLO.
8.3 ILIM
The over-current protection circuit's (OCP) trigger value Iocp can be set using an external
resistor RILIM connected between ILIM pin and GND pin. When EN is HIGH and the ILIM
pin is pulled to ground, the N-channel MOSFET will be disabled and the FAULT output set
LOW. The detailed IOCP setting is given in Section 8.4.
8.4 Over-current protection (OCP)
The device offers over current protection when enabled, three possible over-current
conditions can occur. These conditions are:
• Over-current at start-up, ISW > Iocp when enabling the N-channel MOSFET.
• Over-current after enabled, ISW > Iocp when the N-channel MOSFET is already ON.
• Short circuit after enabled, ISW > 10 A (typical).
In the over current condition, because the device clamps the output current rather than
completely shut down the switch, the power dissipation on the device might be increased
which could lead to over temperature protection (see Section 8.7).
8.4.1 Over-current at start-up
If the device senses a VBUS short to GND or over-current while enabling the N-channel
MOSFET, OCP is triggered. It limits the output current to Iocp and after the de-glitch time
sets the FAULT output LOW.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
5 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
8.4.2 Over-current when enabled
If the device senses ISW > Iocp after enabled, OCP is triggered. It limits the output current
to Iocp and after the de-glitch time sets the FAULT output LOW. Limiting the output current
reduces VO(VOUT)
.
8.4.3 Short circuit when enabled
If the device senses ISW > 10 A after enabled, a short circuit is detected. The device
disables the N-channel MOSFET immediately. It then re-enables the N-channel MOSFET
and limit the output current to Iocp, and after the de-glitch time the FAULT output is set
LOW.
8.5 Reverse-Current protection (RCP)
When the VBUS pin voltage exceeds the input voltage by 40 mV (typical) the device will
protect itself from damage by switching off the MOSFET after 4 ms de-glitch time.
When the VBUS pin voltage exceeds the VINT voltage by 100 mV, the device will
shutdown the FET immediately without any de-glitch time.
FAULT pin will be set LOW in the reverse-current protection condition.
In the RCP state, when the VBUS voltage drops below VINT voltage, the device will exit
the RCP state in 128 us and resume normal operation.
Before normal turn on, the device will always check the RCP condition first, if higher
voltage is detected on VBUS pin, it will never turn on the power MOSFET even EN pin is
pulled HIGH.
8.6 FAULT output
The FAULT output is an open-drain output that requires an external pull-up resistor. If any
of the protection circuits is activated, the FAULT output will be set LOW to indicate a fault
has occurred. The FAULT output will return to the high impedance state automatically
once the fault condition is removed. An internal delay (de-glitch) circuit for the over-current
protection (8 ms typical) and reverse-current protection (4 ms typical) is used when
entering fault conditions. This ensures that FAULT is not accidentally asserted.
Over-temperature condition will not be deglitched, the FAULT signal will be asserted
immediately.
8.7 Over-temperature protection
When EN is HIGH, the device junction temperature exceeds 140 °C, the over-temperature
protection (OTP) circuit will disable the N-channel MOSFET and indicate a fault condition
by setting the FAULT pin LOW. Any transition on the EN pin will have no effect. Once the
device temperature decreases below 115 °C the device will return to the defined state.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
6 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
9. Application diagram
USB connector
5 V
SOURCE
VINT
VBUS
ILIM
VBUS
C
INT
V
DD
C
BUS
47 KΩ
/FAULT
EN
USB
CONTROLLER/
PROCESSOR
R
ILIM
GND
GND
aaa-024128
0.1 F ceramic capacitor (CINT) is required for local decoupling. Higher capacitor values CINT further reduce the voltage drop at
the input. When driving inductive loads, a larger capacitance CINT prevents voltage spikes from exceeding absolute maximum
voltage of VIN. The CBUS capacitor should be placed as closer as possible to VBUS pin.
Fig 4. Application diagram
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
7 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
10. Limiting values
Table 6.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).
Symbol
Parameter
Conditions
VBUS, EN
Min
0.5
0.5
0.5
0.5
50
50
-
Max
Unit
V
[1]
[2]
VI
input voltage
+29
VINT
+6
V
ILIM
+6
V
[1]
VO
IIK
output voltage
FAULT
+6
V
input clamping current
input EN: VI(EN) < 0.5 V
input ILIM: VI(ILIM) < 0.5 V
input IILIM
-
mA
mA
mA
mA
mA
mA
A
-
II(source)
IOK
input source current
1
output clamping current VO < 0 V
50
50
50
-
-
ISK
switch clamping current input VIN: VI(VIN) < 0.5 V
output VOUT: VO(VOUT) < 0.5 V
-
-
[3]
[4]
ISW
switch current
VSW > 0.5 V
3.6
+150
Tj(max)
maximum junction
temperature
40
C
Tstg
Ptot
storage temperature
total power dissipation
65
+150
910
C
-
mW
[1] The minimum input voltage rating may be exceeded if the input current rating is observed.
[2] The minimum and maximum switch voltage ratings may be exceeded if the switch clamping current rating is observed.
[3] Internally limited.
[4] The (absolute) maximum power dissipation depends on the junction temperature Tj. Higher power dissipation is allowed in conjunction
with lower ambient temperatures. The conditions to determine the specified values are Tamb = 25 °C and the use of a two layer PCB.
11. Recommended operating conditions
Table 7.
Recommended operating conditions
Symbol Parameter
Conditions
VINT
Min
2.5
0
Max
5.5
20
5
Unit
V
VI
input voltage
EN; VBUS (OFF state)
VBUS
V
VO
Output voltage
0
V
ISW
switch current
Tj = 40 C to +85 C
output FAULT
input ILIM
0
3
A
IO(sink)
RILIM
Cdec
Tamb
output sink current
current limit resistance
decoupling capacitance
ambient temperature
10
16
0.1
40
-
mA
k
F
C
[1]
140
-
VIN to GND
+85
[1] Current-limit threshold resistor range from ILIM to GND.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
8 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
12. Thermal characteristics
Table 8.
Symbol
Rth(j-a)
Thermal characteristics
Parameter
Conditions
Typ
Unit
[1]
thermal resistance from junction to ambient
109
K/W
[1] Rth(j-a) is dependent upon board layout. To minimize Rth(j-a), ensure all pins have a solid connection to larger copper layer areas. In
multi-layer PCBs, the second layer should be used to create a large heat spreader area below the device. Avoid using solder-stop
varnish under the device.
13. Static characteristics
Table 9.
Static characteristics
At recommended operating conditions; VI(VINT) = VI(EN), RFAULT = 10 kunless otherwise specified; Voltages are referenced
to GND (ground = 0 V). See Figure 10
Symbol
Parameter
Conditions
Min
Typ[1]
Max
Unit
VIH
HIGH-level input
voltage
EN input; VI(VINT) = 2.5 V to 5.5 V;
1.2
-
-
V
VIL
II
LOW-level input
voltage
EN input; VIVINT) = 2.5 V to 5.5 V;
EN input; VI(VINT) = 5.0 V;
-
-
-
-
0.4
7.5
V
input leakage
current
A
I(VIN)
supply current
VBUS open; VI(VINT) = 5.0 V
EN = GND (low power mode);
EN = VI(VIN); RILIM = 33 k
-
-
-
-
0.9
196
210
1
5
A
A
A
A
280
290
10
EN = VI(VIN); RILIM = 16 k
IS(OFF)
VBUS OFF-State
leakage current
VI(VINT) = 5.0 V; VI(VBUS) = 0 V; EN = LOW
VINT OFF-state
leakage current
VI(VBUS) = 5.0 V; VI(VINT) = 0 V;
EN = LOW
-
-
1
10
10
A
A
M
IS(ON)
Rpd
RCP leakage
current
VI(VINT) = 0 V; VI(VBUS) = 5 V; EN = 5 V
0.9
1
EN pin Pull-down
resistance
VI(VINT) = 5 V
Vtrip
trip level voltage
RCP; VI(VINT) = 2.5 V to 5.5 V
VINT pin
-
-
40
-
mV
V
VUVLO
under voltage
2.27
2.45
lockout voltage
Vhys(UVLO) under voltage
lockout hysteresis
voltage
-
100
-
mV
VOL
LOW-level output
voltage
FAULT; IO = 8 mA
-
-
-
0.5
-
V
CI
EN pin
13.5
pF
[1] Typical values are measured at Tamb = 25 C.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
9 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
13.1 Graphs
DDDꢀꢁꢂꢃꢂꢄꢅ
ꢅ
ꢉꢈꢁ
ꢃꢈꢇ
ꢃꢈꢉ
ꢂꢈꢆ
ꢂ
,
ꢋ9,1ꢌ
ꢋX$ꢌ
ꢀꢁꢂ
ꢀꢃꢄ
ꢃꢂ
ꢅꢄ
ꢆꢂ
ꢇꢄ
7
DPE
ꢊꢋƒ&ꢌ
VI(EN) = GND; VI(VINT) = 5.0 V
Fig 5. OFF state supply current versus temperature
DDDꢀꢁꢂꢃꢂꢃꢁ
ꢉꢄꢂ
,
ꢋ9,1ꢌ
ꢋX$ꢌ
ꢉꢅꢂ
ꢉꢃꢂ
ꢃꢎꢂ
ꢃꢍꢂ
ꢃꢄꢂ
ꢋꢉꢌ
ꢋꢃꢌ
ꢀꢁꢂ
ꢀꢃꢄ
ꢃꢂ
ꢅꢄ
ꢆꢂ
ꢇꢄ
7
DPE
ꢊꢋƒ&ꢌ
VI(EN) = VI(VINT); VI(VINT) = 5.0 V
ILIM = 33 K
(2) RILIM = 16 K
(1)
R
Fig 6. ON state supply current versus temperature
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
10 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢂꢃꢂꢃꢆ
ꢄ
,,
RIIꢋ9,17ꢌ
ꢋX$ꢌ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢋꢅꢌ
ꢋꢃꢌ
ꢋꢉꢌ
ꢉꢈꢄ
ꢅ
ꢅꢈꢄ
ꢁ
ꢁꢈꢄ
ꢄ
ꢄꢈꢄ
9
ꢊꢋ9ꢌ
,ꢋ9,17ꢌ
VI(EN) = GND; VI(VBUS) = 0 V; RILIM = 16 K
amb = -40 C
(1)
T
(2) Tamb = +25 C
(3) Tamb = +85 C
Fig 7. VBUS off state leakage versus temperature
DDDꢀꢁꢂꢃꢆꢄꢂ
ꢉꢈꢄ
,,
RIIꢋ9%86ꢌ
ꢋȝ$ꢌ
ꢉ
ꢃꢈꢄ
ꢃ
ꢋꢅꢌ
ꢋꢉꢌ
ꢋꢃꢌ
ꢂꢈꢄ
ꢂ
ꢉꢈꢄ
ꢅꢈꢃ
ꢅꢈꢍ
ꢁꢈꢅ
ꢁꢈꢎ
ꢄꢈꢄ
9
ꢊꢋ9ꢌ
,ꢋ9%86ꢌ
VI(EN) = GND; VI(VINT) = 0 V; RILIM = 16 K
Tamb = -40 C
(1)
(2) Tamb = +25 C
(3) Tamb = +85 C
Fig 8. VINT off state leakage versus temperature
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
11 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢆꢅꢃꢇꢆ
ꢄꢂ
9%86ꢏꢊ9,17
ꢋ9ꢌ
ꢁꢂ
,
%86
ꢋ$ꢌ
ꢁꢂ
ꢅꢂ
ꢉꢂ
ꢃꢂ
ꢅꢉ
ꢉꢁ
ꢃꢆ
ꢇ
ꢋꢉꢌ
ꢋꢃꢌ
ꢋꢅꢌ
ꢂ
ꢂ
ꢀꢆꢂ
ꢀꢅꢂ
ꢂ
ꢅꢂ
ꢆꢂ
ꢎꢂ
7LPHꢊꢋȝVꢌ
ꢃꢉꢂ
RILIM = 20 k; VI(VINT) = 0 V
(1) Surge current
(2) Surge voltage on VBUS
Fig 9. Surge protection waveform
VINT
VBUS
ILIM
VIN
VOUT
10 μF
1 μF
10 kΩ
FAULT
EN
FAULT signal
control signal
R
ILIM
GND
aaa-024133
Fig 10. Typical characteristics reference schematic
13.2 Thermal shutdown
Table 10. Thermal shutdown
VI(VINT) = VI(EN), RFAULT = 10 kunless otherwise specified; Voltages are referenced to GND (ground = 0 V).
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Tth(ots)
over temperature shutdown
threshold temperature
VI(VINT) = 2.5 to 5.5 V
-
140
-
C
Tth(otp)hys
hysteresis of over temperature
protection threshold temperature
VI(VINT) = 2.5 to 5.5 V
-
25
-
C
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
12 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
13.3 ON resistance
Table 11. ON resistance
VI(VINT) = VI(EN), RFAULT = 10 kunless otherwise specified; Voltages are referenced to GND (ground = 0 V). See Figure 10
Symbol Parameter
RON ON resistance
Conditions
Min
Typ
Max
Unit
VI(VINT) = 2.5 to 5.5 V; see Figure 11
Tamb = 25 C
-
-
34
-
37
46
m
m
Tamb = 40 C to +85 C
13.4 ON resistance graphs
DDDꢀꢁꢂꢃꢂꢇꢇ
ꢆꢂ
5RQ
ꢋPŸꢌ
ꢄꢂ
ꢁꢂ
ꢅꢂ
ꢉꢂ
ꢃꢂ
ꢀꢁꢂ
ꢀꢃꢄ
ꢃꢂ
ꢅꢄ
ꢆꢂ
ꢇꢄ
7
DPE
ꢊꢋƒ&ꢌ
VI(VINT) = 5.0 V
Fig 11. Typical ON resistance versus temperature
DDDꢀꢁꢂꢃꢂꢇꢈ
ꢆꢂꢂ
5RQ
ꢋPȍꢌ
ꢁꢇꢂ
ꢅꢆꢂ
ꢉꢁꢂ
ꢃꢉꢂ
ꢂ
ꢅꢈꢄ
ꢃꢉꢈꢇ
ꢉꢉꢈꢃ
ꢅꢃꢈꢁ
ꢁꢂꢈꢍ
7LPHꢊꢋPVꢌ
ꢄꢂ
VI(VINT) = 5.0 V
Fig 12. Typical ON resistance versus enable time
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
13 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
13.5 Current limit
Table 12. Current limit
VI(VINT) = VI(EN), RFAULT = 10 kunless otherwise specified; Voltages are referenced to GND (ground = 0 V). See Figure 10
Symbol
Parameter
Conditions
Min
Typ[1]
Max
Unit
Iocp
over current
protection current
VI(VINT) = 2.5 to 5.5 V; Tamb = 40 C to +85 C;
RILIM = 140 k
330
421
465
mA
mA
mA
mA
mA
mA
mA
mA
RILIM = 100 k
480
581
625
RILIM = 54 k
915
1057
1723
2330
2848
3490
180
1107
1780
2398
2920
3585
220
RILIM = 33 k
1505
2085
2567
3186
125
RILIM = 24.5 k
RILIM = 20 k
RILIM = 16 k
ILIM shorted to VINT
[1] Typical values are measured at Tamb = 25 C. 1 % tolerance resistor is recommend for RILIM
Iocp can be calculated with below equation, x = RILIM (k):
IOCPMAX= 49495x–0.948
IOCPTYP= 52775x–0.979
IOCPMIN= 57949x–1.042
(1)
(2)
(3)
13.6 Current limit graphs
DDDꢀꢁꢂꢃꢂꢄꢉ
ꢄ
,
2&3
ꢋ$ꢌ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢃꢆ
ꢅꢃꢈꢄ
ꢁꢍ
ꢆꢉꢈꢄ
ꢍꢇ
ꢎꢅꢈꢄ
ꢃꢂꢎ
ꢃꢉꢁꢈꢄ
ꢊꢋ.Ÿꢌ
ꢃꢁꢂ
5
,/,0
Fig 13. Typical over current protection current versus external resistor value RILIM
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
14 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
14. Dynamic characteristics
Table 13. Dynamic characteristics
At recommended operating conditions; VI(VINT) = VI(EN), RFAULT = 10 kunless otherwise specified; voltages are referenced to
GND (ground = 0 V).
Symbol
Parameter
Conditions
Min
Typ[1]
Max
Unit
tTLH
LOW to HIGH output
transition time
VOUT; CL = 1 F; RL = 100 ; see Figure 14
and Figure 15
VI(VINT) = 5.0 V
VI(VINT) = 2.5 V
-
-
2.5
1.4
-
-
ms
ms
tTHL
HIGH to LOW output
transition time
VOUT; CL = 1 F; RL = 100 ; see Figure 14
and Figure 15
VI(VINT) = 5.0 V
VI(VINT) = 2.5 V
-
-
0.2
0.2
-
-
ms
ms
ten
enable time
disable time
deglitch time
EN to VOUT; CL = 1 F; RL = 100 ;
seeFigure 14and Figure 15
VI(VINT) = 5.0 V
-
1.5
-
ms
tdis
EN to VOUT; CL = 1 F; RL = 100 ; see
Figure 14 and Figure 15
VI(VINT) = 5.0 V
-
-
-
13
8
-
-
-
s
tdegl
FAULT in OCP; VI(VINT) = 5 V
RCP; FAULT in RCP; VI(VINT) = 5 V
ms
ms
4
[1] Typical values are measured at Tamb = 25 C.
14.1 Waveform and test circuits
V
I
EN input
V
M
GND
t
en
t
dis
V
OH
V
x
VBUS output
V
Y
GND
t
t
THL
TLH
aaa-024134
Measurement points are given in Table 14.
Logic level: VOH is the typical output voltage that occurs with the output load.
Fig 14. Switching times and rise and fall times
Table 14. Measurement points
Supply voltage
VI(VIN)
EN Input
VM
Output
VX
VY
5.0 V
0.5 VI(EN)
0.9 VOH
0.1 VOH
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
15 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
EN
VOUT
VIN
G
V
R
C
L
V
EXT
I
L
aaa-011077
Test data is given in Table 15.
Definitions test circuit:
RL = Load resistance.
CL = Load capacitance including jig and probe capacitance.
EXT = External voltage for measuring switching times.
V
Fig 15. Test circuit for measuring switching times
Table 15. Test data
Supply voltage
VEXT
EN Input
VI(EN)
Load
CL
RL
5.0 V
0 to VI(VIN)
1 F
100 
DDDꢀꢁꢂꢁꢃꢇꢂ
ꢆ
ꢉ
9
,
9,1
ꢋ$ꢌ
%86ꢏꢊ(1
ꢋ9ꢌ
ꢄ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢃꢈꢆꢍ
ꢃꢈꢅꢅ
ꢃ
ꢋꢅꢌ
ꢋꢃꢌ
ꢋꢉꢌ
ꢂꢈꢆꢍ
ꢂꢈꢅꢅ
ꢂ
ꢀꢃ
ꢃ
ꢅ
ꢄ
ꢍ
ꢎ
WLPHꢊꢋPVꢌ
VI(VINT) = 5 V; RL = 5.1 ; CL = 1 F;
(1) VO(VBUS)
(2) I(VIN)
(3) VI(EN)
Fig 16. Typical 1 F load enable time and inrush current
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
16 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢂꢁꢃꢇꢃ
ꢆ
ꢉ
99
,
9,1
%86ꢏꢊꢊ(1
ꢋ9ꢌ
ꢋ$ꢌ
ꢃꢈꢆꢍ
ꢄ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢃꢈꢅꢅ
ꢃ
ꢋꢅꢌ
ꢋꢃꢌ
ꢋꢉꢌ
ꢂꢈꢆꢍ
ꢂꢈꢅꢅ
ꢂ
ꢀꢃ
ꢃ
ꢅ
ꢄ
ꢍ
ꢎ
WLPHꢊꢋPVꢌ
VI(VIN) = 5 V; RL = 5.1 ; CL = 100 F;
(1) VO(VBUS)
(2) I(VIN)
(3) VI(EN)
Fig 17. Typical 100 F load enable time and inrush current
DDDꢀꢁꢂꢁꢃꢇꢄ
ꢆ
ꢉ
9
,
9,1
ꢋ$ꢌ
ꢃꢈꢆꢍ
%86ꢏꢊ(1
ꢋ9ꢌ
ꢄ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢃꢈꢅꢅ
ꢃ
ꢋꢅꢌ
ꢋꢉꢌ
ꢋꢃꢌ
ꢂꢈꢆꢍ
ꢂꢈꢅꢅ
ꢂ
ꢀꢄ
ꢄ
ꢃꢄ
ꢉꢄ
ꢅꢄ
ꢁꢄ
ꢄꢄ
ꢆꢄ
ꢍꢄ
WLPHꢊꢋXVꢌ
VI(VINT) = 5 V; RL = 5.1 ; CL = 1 F;
(1) VO(VBUS)
(2) I(VIN)
(3) VI(EN)
Fig 18. Typical 1 F load turn off
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
17 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢂꢁꢃꢇꢊ
ꢆ
ꢉ
9
,
9,1
%86ꢏꢊ(1
ꢋ9ꢌ
ꢋ$ꢌ
ꢃꢈꢆꢍ
ꢄ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢃꢈꢅꢅ
ꢃ
ꢋꢃꢌ
ꢋꢉꢌ
ꢋꢅꢌ
ꢂꢈꢆꢍ
ꢂꢈꢅꢅ
ꢂ
ꢀꢂꢈꢉ
ꢂꢈꢉ
ꢂꢈꢆ
ꢃ
ꢃꢈꢁ
ꢃꢈꢇ
ꢉꢈꢉ
ꢉꢈꢆ
ꢅ
WLPHꢊꢋPVꢌ
VI(VIN) = 5 V; RL = 5.1 ; CL = 100 F
(1) VO(VBUS)
(2) I(VIN)
(3) VI(EN)
Fig 19. Typical 100 F load turn off
DDDꢀꢁꢂꢃꢂꢄꢄ
ꢆ
9%86ꢏ
9,17ꢏꢊꢐ)/7
ꢋ9ꢌ
ꢅ
,,
9,1
ꢋ$ꢌ
ꢁꢈꢇ
ꢃꢈꢇ
ꢂꢈꢆ
ꢅꢈꢆ
ꢉꢈꢁ
ꢃꢈꢉ
ꢂ
ꢋꢃꢌ
ꢋꢉꢌ
ꢋꢁꢌ
ꢋꢅꢌ
ꢀꢂꢈꢆ
ꢀꢃꢈꢇ
ꢀꢅ
ꢀꢃꢂ
ꢀꢍ
ꢀꢁ
ꢀꢃ
ꢉ
ꢄ
7LPHꢊꢋPVꢌ
VI(VINT) = 4 V
(1) VO(VBUS)
(2) VI(VINT)
(3) I(VIN)
(4) FAULT
Fig 20. Reverse-current protection response
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
18 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢂꢃꢂꢄꢃ
ꢆ
ꢉ
9%86ꢏ
,
9,1
9,17ꢏꢐ)/7
ꢋ$ꢌ
ꢋ9ꢌ
ꢁꢈꢇ
ꢃꢈꢁ
ꢂꢈꢇ
ꢂꢈꢉ
ꢅꢈꢆ
ꢉꢈꢁ
ꢃꢈꢉ
ꢂ
ꢋꢁꢌ
ꢋꢉꢌ
ꢋꢃꢌ
ꢋꢅꢌ
ꢀꢂꢈꢁ
ꢀꢃ
ꢀꢃꢄ
ꢀꢃꢃ
ꢀꢍ
ꢀꢅ
ꢃ
ꢄ
7LPHꢊꢋPVꢌ
VI(VIN) = 4V
(1) VO(VBUS)
(2) VI(VINT)
(3) I(VIN)
(4) FAULT
Fig 21. Reverse-current protection recovery
DDDꢀꢁꢂꢃꢂꢄꢊ
ꢆ
ꢅ
9%86ꢏ
,,
9,1
9,17ꢏꢊꢐ)/7
ꢋ$ꢌ
ꢋ9ꢌ
ꢄ
ꢉꢈꢄ
ꢉ
ꢁ
ꢅ
ꢉ
ꢃ
ꢂ
ꢋꢁꢌ
ꢋꢉꢌ
ꢋꢃꢌ
ꢋꢅꢌ
ꢃꢈꢄ
ꢃ
ꢂꢈꢄ
ꢂ
ꢀꢃꢅ
ꢀꢃꢃ
ꢀꢎ
ꢀꢍ
ꢀꢄ
ꢀꢅ
ꢀꢃ
ꢃ
ꢅ
7LPHꢊꢋPVꢌ
VI(VIN) = 5 V; RILIM = 33 k.
(1) VO(VBUS)
.
(2) VI(VINT)
(3) I(VIN)
(4) FAULT
Fig 22. Device into current limit after enabled
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
19 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
DDDꢀꢁꢂꢃꢂꢄꢇ
ꢆ
ꢅ
9%86ꢏ
,,
9,1
9,17ꢏꢊꢐ)/7
ꢋ9ꢌ
ꢋ$ꢌ
ꢁꢈꢇ
ꢉꢈꢁ
ꢃꢈꢇ
ꢃꢈꢉ
ꢂꢈꢆ
ꢂ
ꢅꢈꢆ
ꢉꢈꢁ
ꢃꢈꢉ
ꢂ
ꢋꢁꢌ
ꢋꢅꢌ
ꢋꢉꢌ
ꢋꢃꢌ
ꢀꢄ
ꢀꢃ
ꢅ
ꢍ
ꢃꢃ
ꢃꢄ
7LPHꢊꢋPVꢌ
VI(VIN) = 5 V; RILIM = 33 k.
(1) VO(VBUS)
(2) VI(VINT)
(3) I(VIN)
(4) FAULT
Fig 23. Device start up with VBUS short to GND
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
20 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
15. Package outline
:/&63ꢀꢁꢂꢃZDIHUꢃOHYHOꢃFKLSꢄVFDOHꢃSDFNDJHꢅ
ꢀꢁꢃEXPSVꢅꢃꢀꢆꢇꢈꢃ[ꢃꢀꢆꢉꢈꢃ[ꢃꢊꢆꢈꢁꢈꢃPPꢃꢋ%DFNVLGHꢃFRDWLQJꢃLQFOXGHGꢌ
627ꢀꢉꢍꢊꢄꢈ
(
$
%
EDOOꢊ$ꢃ
LQGH[ꢊDUHD
$
ꢉ
$
'
$
ꢃ
GHWDLOꢊ;
&
H
ꢃ
%
$
‘ꢊY
‘ꢊZ
&
&
\
H
E
'
H
&
%
$
H
ꢉ
ꢃꢐꢉꢊH
EDOOꢊ$ꢃ
LQGH[ꢊDUHD
ꢃ
ꢉ
ꢅ
;
ꢂ
ꢉꢊPP
VFDOH
'LPHQVLRQVꢊꢋPPꢊDUHꢊWKHꢊRULJLQDOꢊGLPHQVLRQVꢌ
8QLW
PD[ ꢂꢈꢄꢆꢄ ꢂꢈꢉꢅ ꢂꢈꢅꢄꢂ ꢂꢈꢉꢎ ꢃꢈꢆꢇ ꢃꢈꢅꢇ
$
$
$
E
'
(
H
H
H
ꢉ
Y
Z
\
ꢃ
ꢉ
ꢃ
PP QRP ꢂꢈꢄꢉꢄ ꢂꢈꢉꢂ ꢂꢈꢅꢉꢄ ꢂꢈꢉꢆ ꢃꢈꢆꢄ ꢃꢈꢅꢄ ꢂꢈꢁ
PLQ
ꢂꢈꢇ
ꢃꢈꢉ ꢂꢈꢂꢄ ꢂꢈꢃꢄ ꢂꢈꢂꢅ
ꢂꢈꢁꢇꢄ ꢂꢈꢃꢍ ꢂꢈꢅꢂꢂ ꢂꢈꢉꢅ ꢃꢈꢆꢉ ꢃꢈꢅꢉ
1RWHꢑꢊ%DFNVLGHꢊFRDWLQJꢊꢉꢄꢊ—P
VRWꢆꢄꢅꢁꢀꢊBSR
5HIHUHQFHV
2XWOLQH
(XURSHDQ
SURMHFWLRQ
,VVXHꢊGDWH
YHUVLRQ
,(&
-('(&
ꢀꢊꢀꢊꢀ
-(,7$
ꢃꢄꢀꢂꢍꢀꢃꢄ
ꢃꢄꢀꢃꢃꢀꢂꢅ
627ꢃꢅꢎꢂꢀꢄ
Fig 24. Package outline WLCSP12
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
21 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
16. Packing information
16.1 Packing method
%DUFRGHꢊODEHO
'U\ꢀDJHQW
%DJ
(6'ꢊSULQW
5HODWLYHꢊKXPLGLW\
LQGLFDWRU
0RLVWXUHꢊFDXWLRQ
SULQW
(6'ꢊHPERVVHG
5HHOꢊDVVHPEO\
7DSH
%DUFRGHꢊODEHO
*XDUGꢊEDQG
3ULQWHGꢊSODQRꢊER[
&LUFXODUꢊVSURFNHWꢊKROHVꢊRSSRVLWHꢊWKH
ODEHOꢊVLGHꢊRIꢊUHHO
4$ꢊVHDO
&RYHUꢊWDSH
&DUULHUꢊWDSH
6SDFHꢊIRUꢊDGGLWLRQDO
ODEHO
3UHSULQWHGꢊ(6'
ZDUQLQJ
%DUFRGHꢊODEHO
'U\SDFNꢊ,'ꢊVWLFNHU
3ULQWHGꢊSODQRꢊER[
DDDꢀꢁꢆꢉꢄꢁꢃ
Fig 25. Reel dry pack for SMD: guard band; embossed tape
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
22 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
Table 16. Dimensions and quantities
Reel dimensions
d w (mm) [1]
SPQ/PQ
(pcs) [2]
Reels
per box
Outer box dimensions
l w h (mm)
180 8
3000
1
209 206 34
[1] d = reel diameter; w = tape width.
[2] Packing quantity dependent on specific product type.
View ordering and availability details at NXP order portal, or contact your local NXP representative.
16.2 Product orientation
4ꢃꢐ7ꢃ 4ꢉꢐ7ꢅ
EDOOꢊꢃ
4ꢅꢐ7ꢁ 4ꢁꢐ7ꢉ
DDDꢀꢁꢆꢃꢄꢆꢄ
DDDꢀꢁꢆꢈꢉꢊꢈ
Tape pocket quadrants
Ball 1 is in quadrant Q1/T1
Fig 26. Product orientation in carrier tape
16.3 Carrier tape dimensions
4 mm
A
0
K
0
W
B
0
P
1
T
direction of feed
001aao148
Fig 27. Carrier tape dimensions
Table 17. Carrier tape dimensions
In accordance with IEC 60286-3.
A0 (mm)
B0 (mm)
K0 (mm)
T (mm)
P1 (mm)
W (mm)
8 0.3 / 0.1
1.61 0.05
1.78 0.05
0.73 0.05
0.25 0.02
4.0 0.1
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
23 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
16.4 Reel dimensions
A
Z
W2
B
Ø C
Ø D
detail Z
001aao149
Fig 28. Schematic view of reel
Table 18. Reel dimensions
In accordance with IEC 60286-3.
A [nom]
(mm)
W2 [max]
(mm)
B [min]
(mm)
C [min]
(mm)
D [min]
(mm)
180
14.4
1.5
12.8
20.2
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
24 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
16.5 Barcode label
Fixed text
Country of origin
i.e. "Made in....." or
"Diffused in EU [+]
Assembled in......
NXP SEMICONDUCTORS
MADE IN >COUNTRY<
Optional product information*
[PRODUCT INFO]
Re-approval date code*
Packing unit (PQ) identification
nd
Origin code
(33T) PUID: B.0987654321
(30T) LOT2
(31D) REDATE
Product Manufacturing Code
MSL at the Peak Body solder
temperature with tin/lead*
MSL at the higher lead-free
Peak Body Temperature*
2D matrix with all data
2
2
2
traceability lot number*
(youngest) date code*
Quantity*
(30D) DATE2 (32T) ORIG
nd
nd
(30Q) QTY2
(31T) PMC
(31P) MSL/PBT
(1T) LOT
(9D) DATE
Traceability lot number
Date code
With linear barcode
Quantity
With linear barcode
Type number
MSL/PBT
(including the data identifiers)
(Q) QTY
Additional info if halogen
free product
Additional info on RoHS
HALOGEN FREE
RoHS compliant
(30P) TYPE
(1P) CODENO
NXP 12NC
With linear barcode
Lead-free symbol
001aak714
Fig 29. Example of typical box and reel information barcode label
Table 19. Barcode label dimensions
Box barcode label
Reel barcode label
l w (mm)
l w (mm)
100 75
100 75
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
25 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
17. Soldering of WLCSP packages
17.1 Introduction to soldering WLCSP packages
This text provides a very brief insight into a complex technology. A more in-depth account
of soldering WLCSP (Wafer Level Chip-Size Packages) can be found in application note
AN10439 “Wafer Level Chip Scale Package” and in application note AN10365 “Surface
mount reflow soldering description”.
Wave soldering is not suitable for this package.
All NXP WLCSP packages are lead-free.
17.2 Board mounting
Board mounting of a WLCSP requires several steps:
1. Solder paste printing on the PCB
2. Component placement with a pick and place machine
3. The reflow soldering itself
17.3 Reflow soldering
Key characteristics in reflow soldering are:
• Lead-free versus SnPb soldering; note that a lead-free reflow process usually leads to
higher minimum peak temperatures (see Figure 30) than a SnPb process, thus
reducing the process window
• Solder paste printing issues, such as smearing, release, and adjusting the process
window for a mix of large and small components on one board
• Reflow temperature profile; this profile includes preheat, reflow (in which the board is
heated to the peak temperature), and cooling down. It is imperative that the peak
temperature is high enough for the solder to make reliable solder joints (a solder paste
characteristic) while being low enough that the packages and/or boards are not
damaged. The peak temperature of the package depends on package thickness and
volume and is classified in accordance with Table 20.
Table 20. Lead-free process (from J-STD-020D)
Package thickness (mm) Package reflow temperature (C)
Volume (mm3)
< 350
260
350 to 2000
260
> 2000
260
< 1.6
1.6 to 2.5
> 2.5
260
250
245
250
245
245
Moisture sensitivity precautions, as indicated on the packing, must be respected at all
times.
Studies have shown that small packages reach higher temperatures during reflow
soldering, see Figure 30.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
26 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
maximum peak temperature
= MSL limit, damage level
temperature
minimum peak temperature
= minimum soldering temperature
peak
temperature
time
001aac844
MSL: Moisture Sensitivity Level
Fig 30. Temperature profiles for large and small components
For further information on temperature profiles, refer to application note AN10365
“Surface mount reflow soldering description”.
17.3.1 Stand off
The stand off between the substrate and the chip is determined by:
• The amount of printed solder on the substrate
• The size of the solder land on the substrate
• The bump height on the chip
The higher the stand off, the better the stresses are released due to TEC (Thermal
Expansion Coefficient) differences between substrate and chip.
17.3.2 Quality of solder joint
A flip-chip joint is considered to be a good joint when the entire solder land has been
wetted by the solder from the bump. The surface of the joint should be smooth and the
shape symmetrical. The soldered joints on a chip should be uniform. Voids in the bumps
after reflow can occur during the reflow process in bumps with high ratio of bump diameter
to bump height, i.e. low bumps with large diameter. No failures have been found to be
related to these voids. Solder joint inspection after reflow can be done with X-ray to
monitor defects such as bridging, open circuits and voids.
17.3.3 Rework
In general, rework is not recommended. By rework we mean the process of removing the
chip from the substrate and replacing it with a new chip. If a chip is removed from the
substrate, most solder balls of the chip will be damaged. In that case it is recommended
not to re-use the chip again.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
27 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
Device removal can be done when the substrate is heated until it is certain that all solder
joints are molten. The chip can then be carefully removed from the substrate without
damaging the tracks and solder lands on the substrate. Removing the device must be
done using plastic tweezers, because metal tweezers can damage the silicon. The
surface of the substrate should be carefully cleaned and all solder and flux residues
and/or underfill removed. When a new chip is placed on the substrate, use the flux
process instead of solder on the solder lands. Apply flux on the bumps at the chip side as
well as on the solder pads on the substrate. Place and align the new chip while viewing
with a microscope. To reflow the solder, use the solder profile shown in application note
AN10365 “Surface mount reflow soldering description”.
17.3.4 Cleaning
Cleaning can be done after reflow soldering.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
28 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
18. Abbreviations
Table 21. Abbreviations
Acronym
ESD
Description
ElectroStatic Discharge
Charged Device Model
Human Body Model
CDM
HBM
USB
Universal Serial Bus
VOIP
Voice over Internet Protocol
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
29 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
19. Revision history
Table 22. Revision history
Document ID
Release date
20160801
Data sheet status
Change notice
Supersedes
NX5P3090 v.1
Product data sheet
-
-
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
30 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
20. Legal information
20.1 Data sheet status
Document status[1][2]
Product status[3]
Development
Definition
Objective [short] data sheet
This document contains data from the objective specification for product development.
This document contains data from the preliminary specification.
This document contains the product specification.
Preliminary [short] data sheet Qualification
Product [short] data sheet Production
[1]
[2]
[3]
Please consult the most recently issued document before initiating or completing a design.
The term ‘short data sheet’ is explained in section “Definitions”.
The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status
information is available on the Internet at URL http://www.nxp.com.
Suitability for use — NXP Semiconductors products are not designed,
20.2 Definitions
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of an NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. NXP Semiconductors and its suppliers accept no liability for
inclusion and/or use of NXP Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at the customer’s own
risk.
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences of
use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is intended
for quick reference only and should not be relied upon to contain detailed and
full information. For detailed and full information see the relevant full data
sheet, which is available on request via the local NXP Semiconductors sales
office. In case of any inconsistency or conflict with the short data sheet, the
full data sheet shall prevail.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their applications
and products using NXP Semiconductors products, and NXP Semiconductors
accepts no liability for any assistance with applications or customer product
design. It is customer’s sole responsibility to determine whether the NXP
Semiconductors product is suitable and fit for the customer’s applications and
products planned, as well as for the planned application and use of
customer’s third party customer(s). Customers should provide appropriate
design and operating safeguards to minimize the risks associated with their
applications and products.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
NXP Semiconductors and its customer, unless NXP Semiconductors and
customer have explicitly agreed otherwise in writing. In no event however,
shall an agreement be valid in which the NXP Semiconductors product is
deemed to offer functions and qualities beyond those described in the
Product data sheet.
NXP Semiconductors does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default in the
customer’s applications or products, or the application or use by customer’s
third party customer(s). Customer is responsible for doing all necessary
testing for the customer’s applications and products using NXP
Semiconductors products in order to avoid a default of the applications and
the products or of the application or use by customer’s third party
customer(s). NXP does not accept any liability in this respect.
20.3 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, NXP Semiconductors does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. NXP Semiconductors takes no
responsibility for the content in this document if provided by an information
source outside of NXP Semiconductors.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those given in
the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
In no event shall NXP Semiconductors be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Terms and conditions of commercial sale — NXP Semiconductors
products are sold subject to the general terms and conditions of commercial
sale, as published at http://www.nxp.com/profile/terms, unless otherwise
agreed in a valid written individual agreement. In case an individual
agreement is concluded only the terms and conditions of the respective
agreement shall apply. NXP Semiconductors hereby expressly objects to
applying the customer’s general terms and conditions with regard to the
purchase of NXP Semiconductors products by customer.
Notwithstanding any damages that customer might incur for any reason
whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards
customer for the products described herein shall be limited in accordance
with the Terms and conditions of commercial sale of NXP Semiconductors.
Right to make changes — NXP Semiconductors reserves the right to make
changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
No offer to sell or license — Nothing in this document may be interpreted or
construed as an offer to sell products that is open for acceptance or the grant,
conveyance or implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
31 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
NXP Semiconductors’ specifications such use shall be solely at customer’s
own risk, and (c) customer fully indemnifies NXP Semiconductors for any
liability, damages or failed product claims resulting from customer design and
use of the product for automotive applications beyond NXP Semiconductors’
standard warranty and NXP Semiconductors’ product specifications.
Non-automotive qualified products — Unless this data sheet expressly
states that this specific NXP Semiconductors product is automotive qualified,
the product is not suitable for automotive use. It is neither qualified nor tested
in accordance with automotive testing or application requirements. NXP
Semiconductors accepts no liability for inclusion and/or use of
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
non-automotive qualified products in automotive equipment or applications.
In the event that customer uses the product for design-in and use in
automotive applications to automotive specifications and standards, customer
(a) shall use the product without NXP Semiconductors’ warranty of the
product for such automotive applications, use and specifications, and (b)
whenever customer uses the product for automotive applications beyond
20.4 Trademarks
Notice: All referenced brands, product names, service names and trademarks
are the property of their respective owners.
21. Contact information
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
NX5P3090
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet
Rev. 1 — 1 August 2016
32 of 33
NX5P3090
NXP Semiconductors
USB PD and type C current-limited power switch
22. Contents
1
General description. . . . . . . . . . . . . . . . . . . . . . 1
17.3
Reflow soldering . . . . . . . . . . . . . . . . . . . . . . 26
Stand off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Quality of solder joint . . . . . . . . . . . . . . . . . . . 27
Rework. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
17.3.1
17.3.2
17.3.3
17.3.4
2
Features and benefits . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Ordering information. . . . . . . . . . . . . . . . . . . . . 2
Ordering options. . . . . . . . . . . . . . . . . . . . . . . . 2
Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Functional diagram . . . . . . . . . . . . . . . . . . . . . . 3
3
4
4.1
5
18
19
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 29
Revision history . . . . . . . . . . . . . . . . . . . . . . . 30
6
20
Legal information . . . . . . . . . . . . . . . . . . . . . . 31
Data sheet status . . . . . . . . . . . . . . . . . . . . . . 31
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7
7.1
7.2
Pinning information. . . . . . . . . . . . . . . . . . . . . . 4
Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 4
20.1
20.2
20.3
20.4
8
8.1
8.2
8.3
Functional description . . . . . . . . . . . . . . . . . . . 5
EN Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Under-voltage lock-out . . . . . . . . . . . . . . . . . . . 5
ILIM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Over-current protection (OCP) . . . . . . . . . . . . . 5
Over-current at start-up . . . . . . . . . . . . . . . . . . 5
Over-current when enabled . . . . . . . . . . . . . . . 6
Short circuit when enabled . . . . . . . . . . . . . . . . 6
Reverse-Current protection (RCP) . . . . . . . . . . 6
FAULT output . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Over-temperature protection . . . . . . . . . . . . . . 6
21
22
Contact information . . . . . . . . . . . . . . . . . . . . 32
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8.4
8.4.1
8.4.2
8.4.3
8.5
8.6
8.7
9
Application diagram . . . . . . . . . . . . . . . . . . . . . 7
Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recommended operating conditions. . . . . . . . 8
Thermal characteristics . . . . . . . . . . . . . . . . . . 9
10
11
12
13
Static characteristics. . . . . . . . . . . . . . . . . . . . . 9
Graphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Thermal shutdown . . . . . . . . . . . . . . . . . . . . . 12
ON resistance. . . . . . . . . . . . . . . . . . . . . . . . . 13
ON resistance graphs. . . . . . . . . . . . . . . . . . . 13
Current limit . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Current limit graphs . . . . . . . . . . . . . . . . . . . . 14
13.1
13.2
13.3
13.4
13.5
13.6
14
14.1
15
Dynamic characteristics . . . . . . . . . . . . . . . . . 15
Waveform and test circuits . . . . . . . . . . . . . . . 15
Package outline . . . . . . . . . . . . . . . . . . . . . . . . 21
16
Packing information . . . . . . . . . . . . . . . . . . . . 22
Packing method . . . . . . . . . . . . . . . . . . . . . . . 22
Product orientation . . . . . . . . . . . . . . . . . . . . . 23
Carrier tape dimensions . . . . . . . . . . . . . . . . . 23
Reel dimensions. . . . . . . . . . . . . . . . . . . . . . . 24
Barcode label . . . . . . . . . . . . . . . . . . . . . . . . . 25
16.1
16.2
16.3
16.4
16.5
17
17.1
17.2
Soldering of WLCSP packages. . . . . . . . . . . . 26
Introduction to soldering WLCSP packages . . 26
Board mounting . . . . . . . . . . . . . . . . . . . . . . . 26
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in section ‘Legal information’.
© NXP Semiconductors N.V. 2016.
All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 1 August 2016
Document identifier: NX5P3090
厂商 型号 描述 页数 下载

ETC

 		NX5 P CLIP黑包100 Inhalt亲Packung ： 100 Stk阅读。\n[ P CLIP BLACK PACK 100 Inhalt pro Packung: 100 Stk. ] 1 页

ETC

 		NX50 模拟IC\n[ Analog IC ] 2 页

ETC

 		NX50-230 模拟IC\n[ Analog IC ] 2 页

PERICOM

 		NX501 [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

 		NX5011A [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

 		NX5011B [ 2.5V/3.3V CMOS XO ] 2 页

DIODES

 		NX5011B0125.000000 [ LVCMOS Output Clock Oscillator, 125MHz Nom, ] 8 页

PERICOM

 		NX5011C [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

 		NX5011D [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

 		NX5011E [ 2.5V/3.3V CMOS XO ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.247438s
