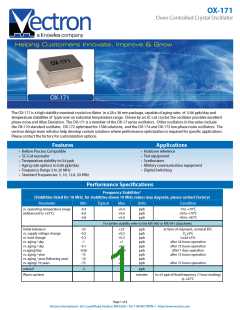

Ordering Information4
OX - 171 0 - D A E - 109 1 - 10M0000000
Frequency
5M00000000
10M0000000
12M8000000
20M0000000
Product Family
OX: OCXO
Model
171
(others available on request)
Frequency Control
0:Fixed frequency
1: 150to 250ppb
Height and Package
0: 14 mm, package A - THT
4: 12.7 mm, package A - THT
1: 17 mm, package B - SMD
5: 15.7 mm, package B - SMD
Stability Code
400: 0.4 ppb
600: 0.6 ppb
800: 0.8ppb
109: 1.0 ppb
159: 1.5 ppb
209: 2.0 ppb
Supply Voltage
B: 12V
D: 5V
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
T: 0°C to +70°C
E: 3.3V
RF Output Code
A: HCMOS
E: Sinewave
Stability code - Temperature and Frequency Options
Frequency
5 to 10 MHz
> 10 MHz
0 to +70 oC
-20 to +70 oC
-40 to +85oC
400
600
800
109
159
209
Additional Ordering Options
Additional ordering options available include custom heights, custom aging rates, custom temperature ranges, custom
temperature stabilities, custom phase noise requirements, improved g-sensitivity, and oscillators with voltage reference output on
pin 2. These modifications require a custom dash number - please contact the factory for additional information.
Design Tools
Vectron stocks the following items for small orders and prototype development:
OX-1710-DEE-8001-10M00000000
Vectron stocks the following evaluation board for this product:
OCXO Evaluation Board
Application Notes:
None
Notes:
1. Unless otherwise stated, all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, and temperature (25°C).
2. Retrace defined as f1-fo where fo is the reading after the unit has been on power for 24 hours, and f1 is the frequency after 24
hours off followed by 60 minutes on.
3. Phase noise degrades with increasing output frequency.
4. Not all options and codes available at all frequencies.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Fax: 1.888.329.8328
Fax: +49 (0) 3328.4784.30
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 1-29-16 dmc
