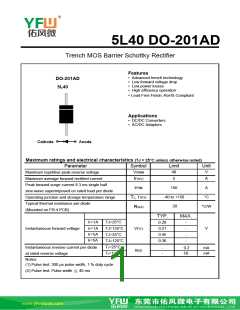

5L40 DO-201AD
Trench MOS Barrier Schottky Rectifier
Features
• Advanced trench technology
• Low forward voltage drop
• Low power losses
DO-201AD
5L40
• High efficiency operation
• Lead Free Finish, RoHS Compliant
Applications
• DC/DC Converters
• AC/DC Adaptors
Cathode
Anode
Maximum ratings and electrical characteristics (TJ = 25°C unless otherwise noted)
Parameter
Symbol
Limit
40
Unit
V
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load per diode
Operating junction and storage temperature range
Typical thermal resistance per diode
VRRM
5
A
I
F(AV)
IFSM
150
-40 to +150
20
A
°C
TJ
, TSTG
°C/W
RƟJC
(Mounted on FR-4 PCB)
TYP.
0.28
0.21
0.45
0.36
MAX.
I
F
=1A
=1A
=5A
TJ=25°C
TJ=125°C
TJ=25°C
TJ=125°C
-
IF
VF(1)
-
V
Instantaneous forward voltage
IF
-
-
IF=5A
T
J
=25°C
Instantaneous reverse current per diode
at rated reverse voltage
Notes:
-
-
mA
mA
0.2
IR(2)
T
J
=125°C
50
(1) Pulse test: 300 μs pulse width, 1 % duty cycle
(2) Pulse test: Pulse width
≦ 40 ms
