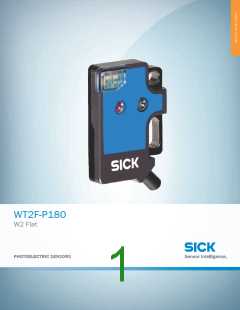

WT2F-P180 | W2 Flat
PHOTOELECTRIC SENSORS
Ordering information
A
B
C
D
E
F
Type
WT2F-P180
Part no.
6030573
Other models and accessories www.sick.com/W2_Flat
Illustration may differ
Detailed technical data
Features
Photoelectric proximity sensor, energetic
14 mm x 19.5 mm x 3.5 mm
Rectangular
Sensor/ detection principle
Dimensions (W x H x D)
Housing design (light emission)
Sensing range max.
H
I
4 mm ... 115 mm 1)
4 mm ... 115 mm 1)
Visible red light
Sensing range
J
Type of light
Light source
LED 2)
660 nm
None
K
L
Wave length
Adjustment
1)
Object with 90 % reflectance (referred to standard white, DIN 5033).
2)
Average service life: 100,000 h at T = +25 °C.
U
Mechanics/electronics
Supply voltage
M
N
O
P
Q
R
S
T
12 V DC ... 24 V DC 1)
2)
Ripple
≤ 5 Vpp
PNP
Switching output
Light switching
Approx. VS – 1.8 V / 0 V
Approx. VS / < 1.8 V
Switching mode
Signal voltage PNP HIGH/LOW
Signal voltage NPN HIGH/LOW
1)
+- 10 %.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Signal transit time with resistive load.
With light/dark ratio 1:1.
Do not bend below 0 °C.
A = V connections reverse-polarity protected.
S
7)
8)
C = interference suppression.
D = outputs overcurrent and short-circuit protected.
2
