QTHA-1MBA

型号:

QTHA-1MBA

品牌:

RALSTON[ RALSTON INSTRUMENTS. ]

页数:

1 页

PDF大小:

349 K

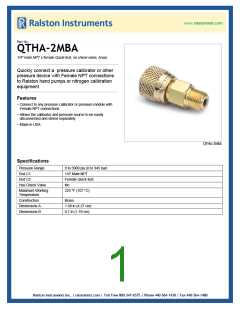

Part No.
QTHA-2MBA
1/4" male NPT x female Quick-test, no check-valve, brass
Quickly connect a pressure calibrator or other
pressure device with Female NPT connections
to Ralston hand pumps or nitrogen calibration
equipment
Features
Connect to any pressure calibrator or pressure module with
Female NPT connections
Allows the calibrator and pressure source to be easily
disconnected and stored separately
Made in USA
QTHA-2MBA
Specifications
Pressure Range
End C1
0 to 5000 psi (0 to 345 bar)
1/4" Male NPT
Female Quick-test
No
End C2
Has Check Valve
Maximum Working
Temperature
225 °F (107 °C)
Construction
Dimensions A
Dimensions B
Brass
1.68 in (4.27 cm)
0.7 in (1.78 cm)
Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
