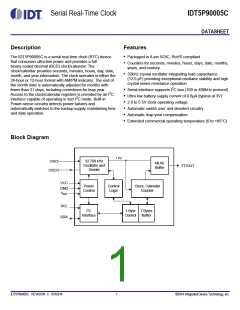

Serial Real-Time Clock
IDT5P90005C
DATASHEET
Description
Features
The IDT5P90005C is a serial real-time clock (RTC) device
that consumes ultra-low power and provides a full
binary-coded decimal (BCD) clock/calendar. The
• Packaged in 8-pin SOIC, RoHS compliant
• Counters for seconds, minutes, hours, days, date, months,
years, and century
clock/calendar provides seconds, minutes, hours, day, date,
month, and year information. The clock operates in either the
24-hour or 12-hour format with AM/PM indicator. The end of
the month date is automatically adjusted for months with
fewer than 31 days, including corrections for leap year.
• 32kHz crystal oscillator integrating load capacitance
(12.5 pF) providing exceptional oscillator stability and high
crystal series resistance operation
2
• Serial interface supports I C bus (100 or 400kHz protocol)
2
Access to the clock/calendar registers is provided by an I C
• Ultra low battery supply current of 0.8µA (typical at 3V)
• 2.0 to 5.5V clock operating voltage
2
interface capable of operating in fast I C mode. Built-in
Power-sense circuitry detects power failures and
automatically switches to the backup supply, maintaining time
and date operation.
• Automatic switch over and deselect circuitry
• Automatic leap year compensation
• Extended commercial operating temperature (0 to +85°C)
Block Diagram
1 Hz
32.768 kHz
Oscillator and
Divider
OSCI
MUX/
FT/OUT
Buffer
OSCO
VCC
GND
VBAT
Power
Control
Control
Logic
Clock, Calendar
Counter
SCL
SDA
I2C
Interface
1 Byte 7 Bytes
Control
Buffer
IDT5P90005C REVISION C 07/03/14
1
©2014 Integrated Device Technology, Inc.
IDT5P90005C DATASHEET
Pin Assignment
8
7
6
5
1
2
3
4
VCC
OSCI
OSCO
VBAT
FT/OUT
SCL
VSS
SDA
8-Pin (150 mil) SOIC
Pin Descriptions
Pin
Number
Pin
Name
Pin Type
Pin Description
1
2
3
4
5
6
7
8
OSCI
OSCO
VBAT
Input
Output
Power
Power
I/O
Oscillator input.
Oscillator output.
Battery supply voltage.
Connect to ground.
Serial data address input/output.
Serial clock.
VSS
SDA
SCL
Input
FT/OUT
VCC
Output
Power
Frequency test/output driver (open drain).
Supply voltage.
SERIAL REAL-TIME CLOCK
2
REVISION C 07/03/14
IDT5P90005C DATASHEET
Device Operation
The IDT5P90005C clock operates as a slave device on the
serial bus. Access is obtained by implementing a start
condition followed by the correct slave address (D0h). The 8
bytes contained in the device can then be accessed
sequentially in the following order:
1st byte: seconds register
2nd byte: minutes register
3rd byte: century/hours register
4th byte: day register
5th byte: date register
6th byte: month register
7th byte: years register
8th byte: control register
The IDT5P90005C clock continually monitors VCC for an
out-of-tolerance condition. Should VCC fall below VSO, the
device terminates an access in progress and resets the device
address counter. Inputs to the device will not be recognized at
this time, to prevent erroneous data from being written to the
device from an out-of-tolerance system. When VCC falls
below VSO, the device automatically switches over to the
battery and powers down into an ultra low current mode of
operation to conserve battery life. Upon power-up, the device
switches from battery to VCC at VSO and recognizes inputs.
REVISION C 07/03/14
3
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
2
I C Serial Data Bus
2
The IDT5P90005C supports the I C bus protocol. A device
that sends data onto the bus is defined as a transmitter and a
device receiving data as a receiver. The device that controls
the message is called a master. The devices that are
Acknowledge: Each receiving device, when addressed, is
obliged to generate an acknowledge after the reception of
each byte. The master device must generate an extra clock
pulse that is associated with this acknowledge bit.
controlled by the master are referred to as slaves. The bus
must be controlled by a master device that generates the
serial clock (SCL), controls the bus access, and generates the
START and STOP conditions. The IDT5P90005C operates as
A device that acknowledges must pull down the SDA line
during the acknowledge clock pulse in such a way that the
SDA line is stable LOW during the HIGH period of the
acknowledge related clock pulse. Of course, setup and hold
times must be taken into account. A master must signal an
end of data to the slave by not generating an acknowledge bit
on the last byte that has been clocked out of the slave. In this
case, the slave must leave the data line HIGH to enable the
master to generate the STOP condition.
2
a slave on the I C bus. Within the bus specifications, a
standard mode (100 kHz maximum clock rate) and a fast
mode (400 kHz maximum clock rate) are defined. The
IDT5P90005C works in both modes. Connections to the bus
are made via the open-drain I/O lines SDA and SCL.
The following bus protocol has been defined (see the “Data
2
Transfer on I C Serial Bus” figure):
• Data transfer may be initiated only when the bus is not
busy.
• During data transfer, the data line must remain stable
whenever the clock line is HIGH. Changes in the data line
while the clock line is HIGH are interpreted as control
signals.
Accordingly, the following bus conditions have been defined:
Bus not busy: Both data and clock lines remain HIGH.
Start data transfer: A change in the state of the data line,
from HIGH to LOW, while the clock is HIGH, defines a START
condition.
Stop data transfer: A change in the state of the data line,
from LOW to HIGH, while the clock line is HIGH, defines the
STOP condition.
Data valid: The state of the data line represents valid data
when, after a START condition, the data line is stable for the
duration of the HIGH period of the clock signal. The data on
the line must be changed during the LOW period of the clock
signal. There is one clock pulse per bit of data.
Each data transfer is initiated with a START condition and
terminated with a STOP condition. The number of data bytes
transferred between START and STOP conditions is not
limited, and is determined by the master device. The
information is transferred byte-wise and each receiver
acknowledges with a ninth bit.
SERIAL REAL-TIME CLOCK
4
REVISION C 07/03/14
IDT5P90005C DATASHEET
2
Data Transfer on I C Serial Bus
Depending upon the state of the R/W bit, two types of data
transfer are possible:
the direction bit (R/W), which is 0 for a write. After receiving
and decoding the slave address byte the slave outputs an
acknowledge on the SDA line. After the IDT5P90005C
acknowledges the slave address + write bit, the master
transmits a register address to the IDT5P90005C. This sets
the register pointer on the IDT5P90005C, with the
IDT5P90005C acknowledging the transfer. The master may
then transmit zero or more bytes of data, with the
IDT5P90005C acknowledging each byte received. The
address pointer increments after each data byte is transferred.
The master generates a STOP condition to terminate the data
write.
1) Data transfer from a master transmitter to a slave
receiver. The first byte transmitted by the master is the slave
address. Next follows a number of data bytes. The slave
returns an acknowledge bit after each received byte. Data is
transferred with the most significant bit (MSB) first.
2) Data transfer from a slave transmitter to a master
receiver. The first byte (the slave address) is transmitted by
the master. The slave then returns an acknowledge bit. This is
followed by the slave transmitting a number of data bytes. The
master returns an acknowledge bit after all received bytes
other than the last byte. At the end of the last received byte, a
“not acknowledge” is returned. The master device generates
all of the serial clock pulses and the START and STOP
conditions. A transfer is ended with a STOP condition or with
a repeated START condition. Since a repeated START
condition is also the beginning of the next serial transfer, the
bus is not released. Data is transferred with the most
significant bit (MSB) first.
2) Slave Transmitter Mode (Read Mode): The first byte is
received and handled as in the slave receiver mode. However,
in this mode, the direction bit indicates that the transfer
direction is reversed. Serial data is transmitted on SDA by the
IDT5P90005C while the serial clock is input on SCL. START
and STOP conditions are recognized as the beginning and
end of a serial transfer (see the “Data Read–Slave Transmitter
Mode” figure). The slave address byte is the first byte received
after the START condition is generated by the master. The
slave address byte contains the 7-bit IDT5P90005C address,
which is 1101000, followed by the direction bit (R/W), which is
1 for a read. After receiving and decoding the slave address
byte the slave outputs an acknowledge on the SDA line. The
IDT5P90005C then begins to transmit data starting with the
register address pointed to by the register pointer. If the
register pointer is not written to before the initiation of a read
mode the first address that is read is the last one stored in the
register pointer. The address pointer is incremented after each
byte is transferred. The IDT5P90005C must receive a “not
acknowledge” to end a read.
The IDT5P90005C can operate in the following two modes:
1) Slave Receiver Mode (Write Mode): Serial data and clock
are received through SDA and SCL. After each byte is
received an acknowledge bit is transmitted. START and STOP
conditions are recognized as the beginning and end of a serial
transfer. Address recognition is performed by hardware after
reception of the slave address and direction bit (see the “Data
Write–Slave Receiver Mode” figure). The slave address byte
is the first byte received after the START condition is
generated by the master. The slave address byte contains the
7-bit IDT5P90005C address, which is 1101000, followed by
REVISION C 07/03/14
5
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
Data Write – Slave Receiver Mode
Data Read (from current Pointer location) – Slave Transmitter Mode
Data Read (Write Pointer, then Read) – Slave Receive and Transmit
Bus Timing Requirements Sequence
Note: P=STOP and S=START.
SERIAL REAL-TIME CLOCK
6
REVISION C 07/03/14
IDT5P90005C DATASHEET
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the IDT5P90005C. These ratings, which are standard
values for IDT commercially rated parts, are stress ratings only. Functional operation of the device at these or any other
conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods can affect product reliability. Electrical parameters are guaranteed only over the
recommended operating temperature range.
Parameter
Condition
Min.
-0.3
-0.3
-0.5
-55
Typ.
Max.
7
Units
V
Supply Voltage, VCC
Referenced to GND
Referenced to GND
Referenced to GND
Input or Output Voltages
Clock Outputs
7
V
VDD+ 0.5
125
V
Storage Temperature
Soldering Temperature1
°C
°C
mA
°C
W
Max 10 seconds
260
Output Current
20
Ambient Operating Temperature (extended commercial range)
Power Dissipation
0
+85
0.25
Note 1: Re flow at peak temperature of 260°C (total thermal budget not to exceed 245°C for greater than 30 seconds).
Caution: Negative undershoots below -0.3V are not allowed on any pin while in the backup mode.
REVISION C 07/03/14
7
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
DC and AC Parameters
This section summarizes the operating and measurement conditions, as well as the DC and AC characteristics of the device.
The parameters in the following DC and AC characteristic tables are derived from tests performed under the measurement
conditions listed in the relevant tables. Designers should check that the operating conditions in their projects match the
measurement conditions when using the quoted parameters.
1
Operating and AC Measurement Conditions
Parameter
Rating
2.0 to 5.5V
Supply Voltage, VCC
Ambient Operating Temperature (extended commercial range)
Load Capacitance
0 to +85ºC
100pF
Input Rise and Fall times
< 5ns
Input Pulse Voltages
0.2 VCC to 0.8 VCC
0.3 VCC to 0.7 VCC
Input and Output Timing Reference Voltages
Note 1: Output Hi-Z is defined as the point where data is no longer driven.
AC Testing Input/Output Waveform
Capacitance
1,2
Parameter
Symbol
Min.
Typ.
Max.
7
Units
pF
Input Capacitance
CIN
3
Output Capacitance (SDA, FT/OUT)
COUT
10
pF
Low-pass Filter Input Time Constant (SDA and SCL)
tLP
250
1000
ns
Note 1: Effective capacitance measured with power supply at 3.3V; sampled only, not 100% tested.
Note 2: At 25°C, f = 1 MHz.
Note 3: Output deselected.
SERIAL REAL-TIME CLOCK
8
REVISION C 07/03/14
IDT5P90005C DATASHEET
DC Characteristics
1
Parameter
Input Leakage Current
Output Leakage Current
Supply Current
Symbol
ILI
Conditions
0V = VIN = VCC
0V = VOUT = VCC
Min.
Typ.
Max.
±1
Units
µA
ILO
±1
µA
ICC1
ICC2
VIL
Switch Frequency = 100 kHz
SCL, SDA = VCC - 0.3
300
70
µA
RTC Supply Current (standby)
Input Low Voltage
µA
-0.3
0.3VCC
VCC+0.5
0.4
V
V
V
V
V
Input High Voltage
VIH
0.7VCC
Output Low Voltage
VOL
IOL = 3.0 mA
FT/OUT
Output Low Voltage (open drain)
Battery Supply Voltage
5.5
VBAT
IBAT
2.5
3.5
TA = 25°C, VCC = 0V
Battery Supply Current
0.8
1
µA
Oscillator ON, VBAT = 3V
Note 1: Valid for ambient operating temperature: TA = 0 to +85°C; VCC = 2.0 to 5.5V (except where noted).
Crystal Electrical Characteristics
1
Parameter
Symbol
Min.
Typ.
Max.
Units
kHz
K
Resonant Frequency
Series Resistance
Load Capacitance
fO
RS
CL
32.768
60
12.5
pF
Note 1: Load capacitors are integrated within the IDT5P90005C. Circuit board layout considerations for the 32.768kHz crystal
of minimum trace lengths and isolation from RF generating signals should be taken into account.
REVISION C 07/03/14
9
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
AC Electrical Characteristics
Unless stated otherwise, VCC = 2.0 to 5.5V, Ambient Temperature 0 to +85C (extended commercial range)
Parameter
Symbol
STANDARD MODE
FAST MODE
Min. Max.
Units
Min.
Max.
SCL Clock Frequency
fSCL
tLOW
tHIGH
tR
100
400
kHz
µs
Clock Low Period
4.7
4.0
1.3
0.6
Clock High Period
µs
SDA and SCL Rise time
SDA and SCL Fall Time
1
0.3
µs
tF
300
300
ns
START Condition Hold Time (after this period the
first clock pulse is generated)
tHD:STA
4
µs
µs
START Condition Setup Time (only relevant for a
repeated start condition)
t
SU:STA
4.7
0.6
Data Hold Time
t
HD:DAT1
0
1.3
100
0.6
ns
ns
µs
Data Setup Time
tSU:DAT
tSU:STO
250
4.0
STOP Condition Setup Time
Time the bus must be free before a new
transmission can start
tBUF
4.7
1.3
µs
Note 1: Transmitter must internally provide a hold time to bridge the undefined region (300 ns max) of the falling edge of SCL.
Power Down/Up Mode AC Waveforms
RTC Power Down/Up AC Characteristics
1,2
Parameter
SCL and SDA at VIH before Power Down
SCL and SDA at VIH after Power Up
Symbol
tPD
Min.
0
Typ.
Max.
Units
ns
trec
10
2000
µs
Note 1: Valid for ambient operating temperature: TA = 0 to +85°C; VCC = 2.0 to 5.5V (except where noted).
Note 2: VCC fall time should not exceed 5 mV/µs.
RTC Power Down/Up Trip Points DC Characteristics
1,2
3
Parameter
Symbol
Min.
Typ.
Max
VBAT-0.30
Units
3
Backup Switchover Voltage
VSO
VBAT-0.90
VBAT-0.50
V
Note 1: Valid for ambient operating temperature: TA = 0 to +85°C; VCC = 2.0 to 5.5V (except where noted).
Note 2: All voltages referenced to VSS.
Note 3: Switchover and deselect point.
SERIAL REAL-TIME CLOCK
10
REVISION C 07/03/14
IDT5P90005C DATASHEET
Clock Operation
The eight byte clock register (see “Register Map” table) is used to both set the clock and to read the date and time from the
clock, in a binary coded decimal format. Seconds, minutes, and hours are contained within the first three registers. Bits D6 and
D7 of clock register 2 (century/hours register) contain the century enable bit (CEB) and the century bit (CB). Setting CEB to a '1'
will cause CB to toggle, either from '0' to '1' or from '1' to '0' at the turn of the century (depending upon its initial state). If CEB is
set to a '0', CB will not toggle. Bits D0 through D2 of register 3 contain the day (day of week). Registers 4, 5 and 6 contain the
date (day of month), month and years. The final register is the control register (this is described in the clock calibration section).
Bit D7 of register 0 contains the STOP bit (ST). Setting this bit to a '1' will cause the oscillator to stop. If the device is expected
to spend a significant amount of time on the shelf, the oscillator may be stopped to reduce current drain. When reset to a '0' the
oscillator restarts within one second.
When reading or writing the time and date registers, secondary(user) buffers are used to prevent error when the internal
registers update. When reading the time and date registers, the user buffers are synchronized to the internal registers on any
start or stop, and when the address pointer rolls over to zero. The countdown chain is reset whenever the seconds register is
written. Write transfers occurs on the acknowledge pulse from the device. To avoid rollover issues, once the countdown chain is
reset, the remaining time and date registers must be written within one second. If enabled, the 1Hz square-wave output
transitions high 500ms after the seconds data transfer, provided the oscillator is already running.
Note: In order to guarantee oscillator start-up after the initial power-up, set the ST bit to a '1,' then reset this bit to a '0.' This
sequence enables a “kick start” circuit which aids the oscillator start-up during worst case conditions of voltage and
temperature.
1
Register Map
Data
D7
ST
R
Function/Range
BCD Format
Address
D6
D5
D4
D3
R
D2
D1
D0
0
1
2
3
4
5
6
7
10 seconds
10 minutes
Seconds
Minutes
Hours
Seconds
00 - 59
00 - 59
0-1/00-23
01 - 07
01 - 31
01 - 12
00 - 99
Minutes
Century/Hours
Day
CEB2
CB
R
10 hours
R
R
R
R
R
Day
R
R
10 date
Date
Month
Years
Date
R
R
10 M
R
Month/Century
Year
10 years
OUT
FT
R
R
R
R
Control
Note 1. Keys:
FT = frequency test bit
ST = stop bit
OUT = output level
CEB = century enable bit
CB = century bit
R = Reserved BIT (keep same as default value)
Note 2. When CEB is set to '1', CB will toggle from '0' to '1' or from '1' to '0' at the turn of the century (dependent upon the initial
value set).When CEB is set to '0', CB will not toggle.
REVISION C 07/03/14
11
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
Output Driver Pin
When the FT bit is not set, the FT/OUT pin becomes an output driver that reflects the contents of D7 of the control register. In
other words, when D6 of address 7 is a zero and D7 of address 7 is a zero and then the FT/OUT pin will be driven low.
Note: The FT/OUT pin is open drain which requires an external pull-up resistor.
FT
0
OUT
FT/OUT
0
1
x
0
1
0
1
512Hz
Initial Power-on Defaults
Upon initial application of power to the device, the FT bit will be set to a '0' and the OUT bit will be set to a '1'. All other
register bits will initially power on in a random state.
Thermal Characteristics
Parameter
Symbol
JA
Conditions
Still air
Min.
Typ.
150
140
120
40
Max. Units
°C/W
°C/W
Thermal Resistance Junction to Ambient
JA
1 m/s air flow
3 m/s air flow
°C/W
JA
°C/W
Thermal Resistance Junction to Case
JC
Marking Diagram
IDT
5P90005
CDCG
YYWW$
Notes:
1. “$” is the assembly mark code.
2. “YYWW” is the last two digits of the year and week that the part was assembled.
3. Bottom marking: country of origin if not USA.
SERIAL REAL-TIME CLOCK
12
REVISION C 07/03/14
IDT5P90005C DATASHEET
Package Outline and Package Dimensions (8-pin SOIC, 150 Mil. Body)
Package dimensions are kept current with JEDEC Publication No. 95
Millimeters
Inches
8
Symbol
Min
1.35
0.10
0.33
0.19
4.80
3.80
Max
1.75
0.25
0.51
0.25
5.00
4.00
Min
Max
.0688
.0098
.020
A
A1
B
C
D
E
e
.0532
.0040
.013
E
H
.0075
.1890
.1497
.0098
.1968
.1574
INDEX
AREA
1.27 BASIC
0.050 BASIC
H
h
5.80
0.25
0.40
0
6.20
0.50
1.27
8
.2284
.010
.016
0
.2440
.020
.050
8
1
2
L
D
A
h x 45
A1
C
- C -
e
SEATING
PLANE
B
L
.10 (.004)
C
Ordering Information
Part / Order Number
5P90005CDCGH
5P90005CDCGH8
Marking
see page 12
Shipping Packaging
Tubes
Package
8-pin SOIC
8-pin SOIC
Temperature
0 to +85C
0 to +85C
Tape and Reel
“G” after the two-letter package code denotes Pb-Free configuration, RoHS compliant.
REVISION C 07/03/14
13
SERIAL REAL-TIME CLOCK
IDT5P90005C DATASHEET
Revision History
Rev.
Date
Originator Description of Change
1. Added top-side device marking.
S. Lou
B
12/16/13
2. Moved from Prelim to Final.
1. Changed ambient operating temperature from -40 to +85°C, to extended commercial
range; 0 to +85°C.
2. Updated ordering information to reflect extended commercial range (removed “I”).
C
C
05/27/14
07/03/14
J. Chen
S. Lou
Added “H” to orderable part number to reflect extended commercial range.
SERIAL REAL-TIME CLOCK
14
REVISION C 07/03/14
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Tech Support
email: clocks@idt.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2014 Integrated Device Technology, Inc.. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		5P90005CDCGH [ Serial Real-Time Clock ] 15 页

IDT

 		5P90005DCGI 串行实时时钟[ SERIAL REAL-TIME CLOCK ] 16 页

IDT

 		5P90005DCGI8 串行实时时钟[ SERIAL REAL-TIME CLOCK ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.189945s
