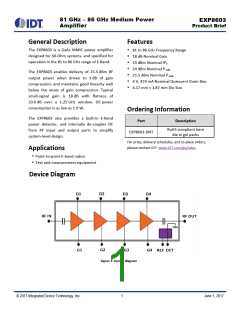

81 GHz – 86 GHz Medium Power
Amplifier
EXP8603
Product Brief
GeneralꢀDescriptionꢀ
Featuresꢀ
Theꢀ EXP8603ꢀ isꢀ aꢀ GaAsꢀ MMICꢀ powerꢀ amplifierꢀ
designedꢀforꢀ50-Ohmꢀsystems,ꢀandꢀspecifiedꢀforꢀ
operationꢀinꢀtheꢀ81ꢀtoꢀ86ꢀGHzꢀrangeꢀofꢀE-Band.ꢀ
• 81ꢀtoꢀ86ꢀGHzꢀFrequencyꢀRange
• 18ꢀdBꢀNominalꢀGain
• 33ꢀdBmꢀNominalꢀIP3
• 24ꢀdBmꢀNominalꢀP-1dB
• 25.5ꢀdBmꢀNominalꢀP-3dB
Theꢀ EXP8603ꢀ enablesꢀ deliveryꢀ ofꢀ 25.5ꢀdBmꢀ RFꢀ
outputꢀ powerꢀ whenꢀ drivenꢀ toꢀ 3ꢀdBꢀ ofꢀ gainꢀ
compression,ꢀandꢀmaintainsꢀgoodꢀlinearityꢀwellꢀ
belowꢀ theꢀ onsetꢀ ofꢀ gainꢀ compression.ꢀ Typicalꢀ
small-signalꢀ gainꢀ isꢀ 18ꢀdBꢀ withꢀ flatnessꢀ ofꢀ
±0.6ꢀdBꢀ overꢀ aꢀ 1.25ꢀGHzꢀ window.ꢀ DCꢀpowerꢀ
consumptionꢀisꢀasꢀlowꢀasꢀ1.9ꢀW.ꢀꢀꢀ
• 4ꢀV,ꢀ474ꢀmAꢀNominalꢀQuiescentꢀDrainꢀBias
• 4.17ꢀmmꢀ×ꢀ1.87ꢀmmꢀDieꢀSize
OrderingꢀInformationꢀ
Theꢀ EXP8603ꢀ alsoꢀ providesꢀ aꢀ built-inꢀ E-Bandꢀ
powerꢀ detector,ꢀ andꢀ internallyꢀ de-couplesꢀ DCꢀ
fromꢀ RFꢀ inputꢀ andꢀ outputꢀ portsꢀ toꢀ simplifyꢀ
system-levelꢀdesign.ꢀ
Partꢀ
Descriptionꢀ
RoHSꢀcompliantꢀbareꢀ
dieꢀinꢀgelꢀpacksꢀ
EXP8603-DNTꢀ
Forꢀprice,ꢀdeliveryꢀschedules,ꢀandꢀtoꢀplaceꢀorders,ꢀ
pleaseꢀcontactꢀIDT:ꢀwww.IDT.com/go/salesꢀꢀ
Applicationsꢀ
• Point-to-pointꢀE-bandꢀradios
• Testꢀandꢀmeasurementꢀequipment
ꢀDeviceꢀDiagramꢀ
Figureꢀ1:ꢀDeviceꢀdiagramꢀ
© 2017 Integrated Device Technology, Inc.
1
June 1, 2017
