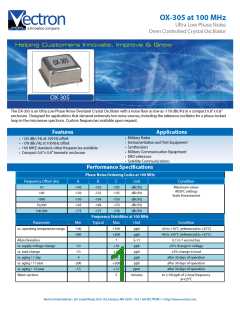

OX-305 at 100 MHz
Ultra Low Phase Noise
Oven Controlled Crystal Oscillator
-305
X
O
OX-305
The OX-305 is an Ultra Low Phase Noise Ovenized Crystal Oscillator with a noise floor as low as -178 dBc/Hz in a compact 0.8”x 0.8”
enclosure. Designed for applications that demand extremely low noise sources, including the reference oscillator for a phase-locked
loop in the microwave spectrum. Custom frequencies available upon request.
Features
Applications
• Military Radar
• -135 dBc/ Hz at 100 Hz offset
• Instrumentation and Test Equipment
• Synthesizers
• Military Communication Equipment
• DRO reference
• -178 dBc/Hz at 100 kHz offset
• 100 MHZ standard, other frequencies available
• Compact 0.8”x 0.8”hermetic enclosure
• Satellite Communications
Performance Specifications
Phase Noise Ordering Codes at 100 MHz
Frequency Offset (Hz)
A
B
C
Unit
Condition
10
-100
-130
-102
-132
-105
-135
dBc/Hz
dBc/Hz
Maximum values
All EFC settings
Static Environment
100
1000
10,000
100,000
-150
-165
-175
-156
-168
-175
-159
-170
-178
dBc/Hz
dBc/Hz
dBc/Hz
Frequency Stabilities at 100 MHz
Parameter
Min
-100
-200
Typical
Max
+100
+200
1
Unit
ppb
Condition
vs. operating temperature range
-20 to +70°C (referenced to +25°C)
-40 to +85°C (referenced to +25°C)
0.1 to 1 second tau
ppb
Allan Deviation
E-11
vs. supply voltage change
vs. load change
-10
-10
-5
+10
+10
+5
ppb
5ꢀ change in voltage
ppb
5ꢀ change in load
vs. aging / 1 day
vs. aging / 1st year
vs. aging / 10 year
Warm up time
ppb
after 30 days of operation
after 30 days of operation
after 30 days of operation
-200
-1.5
+200
+1.5
5
ppb
ppm
minutes
to 100 ppb of 2-hour frequency
@+25°C
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Min
11.4
Typical
12.0
Max
12.6
Unit
VDC
Condition
Supply Voltage
4
1.8
Watts
Watts
during warm-up
steady state @ +25°C
Power Consumption
Reference Voltage
9.8
+7.0
1.5
10
10.2
VDC
RF Output
Signal
Sinewave
Load
50
Ohms
dBm
dBc
Output Power
Harmonics
Spurious
+11.0
-30
50 Ohm load
50 Ohm load
50 Ohm load
-80
dBc
Frequency Tuning (EFC)
Tuning Range
3.0
20
ppm
Linearity
ꢀ
Tuning Slope
Positive
Control Voltage Range
Input Impedance
Modulation Bandwidth
0
10
VDC
kOhm
Hz
20
150
Additional Parameters
g- Sensitivity
Weight
1
ppb/g
grams
worst axis
10
Absolute Maximum Ratings
Parameter
Supply Voltage (Vs)
Output Load
Min
Typical
Max
15
Unit
V
Condition
25
Ohms
Device will not sustain damage when
operated at temperatures between the
operating range and the operable range,
but will not be specification compliant.
Operable Temperature Range
-55
+95
°C
Environmental and Product Classification
MIL-STD-202, Method 213, Condition J, 30 g 11 ms
Shock (Endurance)
Sine Vibration (Endurance)
Random Vibration (Endurance)
Humidity
MIL-STD-202, Method 201 and 204, Condition A, except 5 g to 500 Hz, 1 sweep each axis
MIL-STD-202, Method 214, Condition I-D
MIL-STD-202, Method 103, Condition B, 100ꢀ rh
MIL-STD-202, Method 112, Condition D
Seal
Altitude
MIL-STD-202, Method 105, sea level to30,000 ft
MIL-STD-202, Method 210, Condition A,B,C
MIL-STD-202, Method 11, Condition C (5 bends at 45o, 2 lbs)
1
Resistance to Soldering Heat
Terminal Strength
Moisture Sensitive Level
6 (fully compliant) - no pure tin options available upon request, the device will be assigned a
customer part number , not orderable through ordering codes
RoHS
Storage Temperature Range
-55
+125
°C
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Outline Drawing
MARKING SURFACE
Code
0
Height “H”
13.0
Pin Length “L”Min
5.0
" H "
" L "
Pin Connections
0.30±0.20
.012±.008
1
2
3
4
Supply Voltage Input (VS)
RF Output
7.62
.300
0.45±0.03
.018±.001
Ground (case)
PIN NUMBERS ARE SHOWN FOR REFERENCE ONLY
AND ARE NOT MARKED ON THE UNIT
Electronic Frequency Control
(EFC)
5.08
.200
SQUARE CORNER
INDICATES PIN 1
2.54
.100
5
Reference Voltage (Vref)
[Dimensions in mm]
1
5
2
3
4
7.62
.300
CENT
15.24
.600
CENT
unnumbered pins are no connects and
are removed at the factory.
7.62
.300
CENT
2.54
.100
15.24
.600
Code
1
Height “H”
13.0
Pin Length “L”Min
na
Pin Connections
1
2
Electronic Frequency Control
(EFC)
Reference Voltage (Vref)
3
4
5
6
7
Supply Voltage Input (Vs)
RF output
N.C
N.C.
Ground (case)
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
OX - 305 1 - B E E - 207 0 - 100M000000
Frequency
Product Family
OX: OCXO
Phase Noise and Frequency Control
0: No Tuning, phase noise code A
1: No Tuning, phase noise code B
2: No Tuning, phase noise code C
3: Frequency Tuning, phase noise code A
4: Frequency Tuning, phase noise code B
5: Frequency Tuning, phase noise code C
Package
20x20mm (height code 0)
22x25 mm (height code 1)
Height
0: 13.0 mm tht
1: 13.0 mm smd
Supply Voltage
B: +12V
Stability Code
107: 100ppb (Temp Code J only)
207: 200ppb
RF Output Code
E: Sinewave
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
Notes:
1. Unless otherwise stated, all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, and temperature (25°C).
2. Contact factory for other frequencies. Phase noise degrades for frequencies greater than 100 MHz.
3. Subject to technical modification.
4. Contact factory for availability.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Fax: 1.888.329.8328
Fax: +49 (0) 3328.4784.30
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev:11212016jar
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
