WTF12G-3N2432

型号：

WTF12G-3N2432

品牌：

SICK[ SICK AG ]

页数：

7 页

PDF大小：

1375 K

下载PDF手册

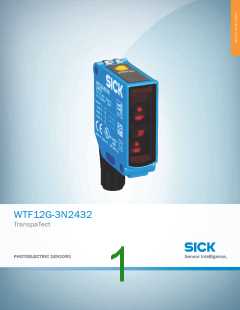

WTF12G-3N2432
TranspaTect
PHOTOELECTRIC SENSORS
WTF12G-3N2432 | TranspaTect
PHOTOELECTRIC SENSORS
Ordering information
A
B
C
D
E
F
Type
Part no.
WTF12G-3N2432
1066279
Other models and accessories www.sick.com/TranspaTect
Illustration may differ
H
I
Detailed technical data
Features
Photoelectric proximity sensor, Foreground suppression
Sensor/ detection principle
Dimensions (W x H x D)
Housing design (light emission)
Sensing range max.
15.6 mm x 48.5 mm x 42 mm
Rectangular
J
150 mm ... 700 mm 1)
K
L
0 mm ... 400 mm 2)
Visible red light
Sensing range
Type of light
Light source
PinPoint LED 3)
Ø 8 mm (300 mm)
660 nm
Light spot size (distance)
Wave length
M
N
O
P
Q
R
S
T
Single teach-in button
Adjustment
1)
Adjustable background; referring to the background with 90 % remission (based on glass-bead blasted stainless steel, equivalent to standard white DIN 5033).
Detection range transparent objects.
2)
3)
Average service life: 100,000 h at T = +25 °C.
U
Mechanics/electronics
10 V DC ... 30 V DC 1)
Supply voltage
1)
Limit values when operated in short-circuit protected network: max. 8 A.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Without load.
Signal transit time with resistive load.
With light/dark ratio 1:1.
A = V connections reverse-polarity protected.
S
7)
8)
C = interference suppression.
D = outputs overcurrent and short-circuit protected.
2
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-09-07 16:25:06
Subject to change without notice
WTF12G-3N2432 | TranspaTect
PHOTOELECTRIC SENSORS
2)
Ripple
≤ 5 Vpp
≤ 55 mA 3)
Power consumption
NPN
Output type
Complementary
Light/dark switching
Approx. VS / < 2.5 V
100 mA
Output function
Switching mode
Signal voltage NPN HIGH/LOW
Output current Imax.
Response time
2 ms 4)
250 Hz 5)
Switching frequency
Male connector M12, 4-pin
Connection type
Circuit protection
A 6)
C 7)
D 8)
II
Protection class
Weight
120 g
Metal
Housing material
Enclosure rating
IP66
IP67
Detecting transparent objects
–40 °C ... +60 °C
Special feature
Ambient operating temperature
Ambient storage temperature
UL File No.
–40 °C ... +75 °C
NRKH.E181493 & NRKH7.E181493
1)
Limit values when operated in short-circuit protected network: max. 8 A.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Without load.
Signal transit time with resistive load.
With light/dark ratio 1:1.
A = V connections reverse-polarity protected.
S
7)
8)
C = interference suppression.
D = outputs overcurrent and short-circuit protected.
Classifications
27270904
27270904
27270904
27270904
27270904
27270904
27270904
27270904
EC002719
EC002719
39121528
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
2017-09-07 16:25:06 | Online data sheet
Subject to change without notice
PHOTOELECTRIC SENSORS | SICK
3
WTF12G-3N2432 | TranspaTect
PHOTOELECTRIC SENSORS
Adjustments possible
A
B
C
D
E
F
5 4
8
④ LED indicator green: Supply voltage active
⑤ LED indicator yellow: Status of received light beam
⑧ Adjustment sensing range: single teach-in button
Connection diagram
Cd-084
H
I
1
2
3
4
brn
wht
blu
blk
+ (L+)
Q
- (M)
Q
J
K
L
Characteristic curve
600
(23.62)
500
(19.69)
Non-transparent objects
400
(15.75)
M
N
O
P
Q
R
S
T
300
(11.81)
200
(7.87)
Transparent objects
100
(3.94)
0
100 200 300 400 500 600 700
(3.94) (7.87) (11.81) (15.75) (19.69) (23.62) (27.56)
Adjustment range background (x)
Legend:
x: Sensing range max. in mm (adjustment range background)
= Distance sensor / background
y: Sensing range in mm (detection range object)
= Maximum distance sensor / front edge of the object
Minimum distance sensor / background : 150 mm*
*) Referring to the background with 90 % remission equivalent to standard white DIN 5033 (i.e. glass-bead blasted stainless steel).
The use of a shiny background can increase the minimum distance to the background (i.e. brushed and pickled stainless steel,
minimum distance sensor to background: 300 mm).
How to use this diagram:
Measure the distance from the sensor to the metal surface in the background.
This is the value for x (adjustment range background). If this is 500 mm for example,
the maximum distance between the sensor and the leading edge of a transparent object is 300 mm.
4
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-09-07 16:25:06
Subject to change without notice
WTF12G-3N2432 | TranspaTect
PHOTOELECTRIC SENSORS
Dimensional drawing (Dimensions in mm (inch))
24 (0.94)
10 (0.39)
7
42 (1.65)
15.6 (0.61)
8
2
3
29.9 (1.18)
7.3 (0.29)
1
6.1
(0.24)
4
8
23.1
(0.91)
ß
9
5
6
17.9
(0.7)
① Recommended installation for the detection of transparent trays
② Recommended installation for the detection of transparent bottles
③ Optical axis, receiver
④ Optical axis, sender
⑤ LED indicator green: Supply voltage active
⑥ LED indicator yellow: Status of received light beam
⑦ M4 threaded mounting hole, 4 mm deep
⑧ Mounting hole, Ø 4.2 mm
⑨ Adjustment sensing range: single teach-in button
⑩ Connection
Recommended accessories
Other models and accessories www.sick.com/TranspaTect
Brief description
Type
Part no.
Universal bar clamp systems
Plate N02 for universal clamp bracket, Zinc plated steel (sheet), Zinc die cast (clamping
BEF-KHS-N02
2051608
bracket), Universal clamp (5322626), mounting hardware
Plate N03 for universal clamp bracket, zinc coated, Zinc plated steel (sheet), Zinc die
cast (clamping bracket), Universal clamp (5322626), mounting hardware
BEF-KHS-N03
BEF-SG-W12-3
2051609
2045175
Device protection (mechanical)
Protective housing for universal clamp, Zinc plated steel (protective housing), Zinc die
cast (clamping bracket), Universal clamp, mounting hardware
2017-09-07 16:25:06 | Online data sheet
Subject to change without notice
PHOTOELECTRIC SENSORS | SICK
5
WTF12G-3N2432 | TranspaTect
PHOTOELECTRIC SENSORS
Brief description
Type
Part no.
A
B
C
D
E
F
Mounting brackets and plates
Mounting bracket, large, Stainless steel, mounting hardware included
BEF-WG-W12
2013942
Mounting bracket, small, Stainless steel, mounting hardware included
BEF-WK-W12
BEF-KH-W12
2012938
2013285
Terminal and alignment brackets
Clamping block for dovetail mounting, Aluminum (anodised), mounting hardware includ-
ed
Plug connectors and cables
Head A: female connector, M12, 4-pin, straight
Head B: cable
Cable: PVC, unshielded, 2 m
DOL-1204-G02M
DOL-1204-G05M
DOL-1204-W02M
DOL-1204-W05M
6009382
6009866
6009383
6009867
Head A: female connector, M12, 4-pin, straight
Head B: cable
Cable: PVC, unshielded, 5 m
Head A: female connector, M12, 4-pin, angled
Head B: cable
Cable: PVC, unshielded, 2 m
H
I
Head A: female connector, M12, 4-pin, angled
Head B: cable
Cable: PVC, unshielded, 5 m
J
K
L
M
N
O
P
Q
R
S
T
6
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-09-07 16:25:06
Subject to change without notice
