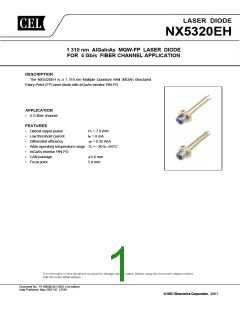

LASER DIODE
NX5320EH
1 310 nm AlGaInAs MQW-FP LASER DIODE
FOR 4 Gb/s FIBER CHANNEL APPLICATION
DESCRIPTION
The NX5320EH is a 1 310 nm Multiple Quantum Well (MQW) structured
Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD.
APPLICATION
4 G fiber channel
FEATURES
Optical output power
Low threshold current
Differential efficiency
Po = 7.0 mW
lth = 8 mA
ηd = 0.35 W/A
Wide operating temperature range TC = 30 to +85°C
InGaAs monitor PIN-PD
CAN package
Focal point
φ 5.6 mm
5.8 mm
Document No. PL10660EJ01V0DS (1st edition)
Date Published May 2007 NS CP(N)
2007
NX5320EH
PACKAGE DIMENSIONS (UNIT: mm)
5.6+0.00
φ
–0.03
*2
φ
( 4.2)
(φ
3.55)*2
1.0±0.1
BOTTOM VIEW
1
2
4
3
(0.3)*2
Focal Point*1
φ
2.0
x = ±300 µm MAX.
µ
y = ±300 m MAX.
PIN CONNECTIONS
1 (Case)
LD
Reference
Plane
4
2
4– 0.45
φ
PD
3
φ
2.0
*1 Focal Point: A point to get maximum optical output power from fiber.
*2 ( ) indicates nominal dimension.
2
Data Sheet PL10660EJ01V0DS
NX5320EH
ORDERING INFORMATION
Part Number
Package
4-pin CAN with ball lens cap
Pin Connections
1
NX5320EH-AZ*
LD
4
2
PD
3
*Note Please refer to the last page of this data sheet “Compliance with
E U D i r e c t i v e s for Pb-Free RoHS Compliance Information.
Remarks 1. The color of ball lens cap might be observed differently.
2. The hermetic test will be performed as AQL 1.0%.
3
Data Sheet PL10660EJ01V0DS
NX5320EH
ABSOLUTE MAXIMUM RATINGS
Parameter
Optical Output Power
Symbol
Ratings
Unit
mW
mA
V
Po
IF
15
120
Forward Current of LD
Reverse Voltage of LD
VR
IF
2.0
Forward Current of PD
10
mA
V
Reverse Voltage of PD
VR
TC
Tstg
Tsld
RH
20
Operating Case Temperature
Storage Temperature
30 to +85
40 to +85
350 (3 sec.)
85
°C
°C
°C
%
Lead Soldering Temperature
Relative Humidity (noncondensing)
RECOMMENDED OPERATING CONDITION
Parameter
Symbol
Conditions
TC = 25°C, refer to below
MIN.
TYP.
MAX.
Unit
mA
Bias Current
Ibias
Ith +12.5
P
f
(mW)
P
P
P
1
0
Ex = 10 log
[dB]
1
P
0
I
mod
I
F
0
(mA)
I
bias
4
Data Sheet PL10660EJ01V0DS
NX5320EH
ELECTRO-OPTICAL CHARACTERISTICS (TC = 30 to +85°C, unless otherwise specified)
Parameter
Operating Voltage
Symbol
Conditions
CW, Po = 7.0 mW, TC = +25°C
CW, Po = 7.0 mW
CW, TC = +25°C
CW
MIN.
TYP.
1.3
MAX.
1.6
Unit
V
Vop
2.0
Threshold Current
Differential Efficiency
Center Wavelength
Ith
8
20
mA
2
40
ηd
CW, TC = +25°C
CW
0.25
0.12
1 278
3.0
0.35
0.50
0.65
1 350
1.5
W/A
λC
Po = 7.0 mW, RMS (20 dB)
ηd (@ 85°C)
nm
dB
Temperature Dependence of Slope
Efficiency
∆η
∆η = 10 log
ηd (@ 25°C)
Spectral Width
σ
tr
Po = 7.0 mW, RMS (20 dB)
20-80%
2
90
nm
ps
Rise Time
Fall Time
tf
80-20%
90
ps
Relative Intensity Noise
Monitor Current
RIN
Im
Under modulation
VR = 1.5 V, Po = 7.0 mW
VR = 5 V
120
2 000
500
20
dB/Hz
µA
200
Monitor Dark Current
Monitor PD Terminal Capacitance
ID
nA
Ct
VR = 5 V, f = 1 MHz
6
pF
5
Data Sheet PL10660EJ01V0DS
NX5320EH
TYPICAL CHARACTERISTICS (TC = 30 to +85°C, unless otherwise specified)
OPERATING CURRENT AND THRESHOLD
CURRENT vs. CASE TEMPERATURE
OPTICAL OUTPUT POWER
vs. FORWARD CURRENT
10
7.5
5
100
+25˚C
TC = –30˚C
50
+85˚C
I
op
I
th
10
5
2.5
1
–40
0
10
20
30
40
(mA)
50
60
–20
0
20
40
60
80
100
Forward Current I
F
Case Temperature T
C
(˚C)
TEMPERATURE DEPENDENCE OF
CENTER WAVELENGTH
1 350
1 340
1 330
1 320
1 310
1 300
1 290
1 280
1 270
–40
–20
0
20
40
60
80
100
Case Temperature T
C
(˚C)
Remark The graphs indicate nominal characteristics.
6
Data Sheet PL10660EJ01V0DS
NX5320EH
TYPICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
FORWARD CURRENT vs.
FORWARD VOLTAGE
OPTICAL OUTPUT POWER
vs. MONITOR CURRENT
50
40
30
20
10
0
10
5
0
0.5
1
1.5
(V)
2
300
600
900
1 200
1 500
Forward Voltage V
F
Monitor Current I (µA)
m
SPECTRUM
0
–10
–20
–30
–40
–50
–60
–70
–80
1 280
1 290
1 300
1 310
1 320
1 330
Wavelength λ (nm)
Remark The graphs indicate nominal characteristics.
7
Data Sheet PL10660EJ01V0DS
NX5320EH
REFERENCE
Document Name
Document No.
PX10160E
Opto-Electronics Devices Pamphlet
8
Data Sheet PL10660EJ01V0DS
NX5320EH
