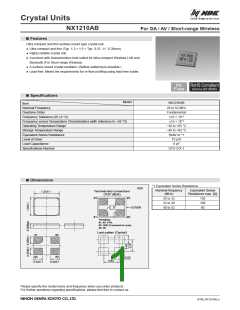

Crystal Units
NX1210AB
For OA / AV / Short-range Wireless
Features
■
Ultra compact and thin surface-mount type crystal unit.
● Ultra compact and thin (Typ. 1.2 × 1.0 × Typ. 0.25 , H : 0.30mm)
● Highly reliable crystal unit.
● A product with characteristics best suited for ultra compact Wireless LAN and
Bluetooth.(For Short-range Wireless)
● A surface-mount crystal oscillator. (Reflow soldering is possible.)
● Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
Specifications
■
Model
NX1210AB
Item
Nominal Frequency
26 to 52 MHz
Fundamental
±10 × 10−6
±15 × 10−6
−30 to +85 °C
−40 to +85 °C
Refer to *1
10 μW
Overtone Order
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
Load Capacitance
8 pF
Specifications Number
STD-CIX-1
Dimensions
■
*1 Equivalent Series Resistance
mm
Nominal frequency
(MHz)
Equivalent Series
Resistance max. [Ω]
Terminal land connections
(TOP VIEW)
1.2 0.1
#4
#3
26 to 32
32 to 40
40 to 52
150
100
60
COVER
#1
#2
TERMINAL
#1, #3: XTAL
#2: GND (Connected to cover)
#4: NC
Land pattern (Typical)
#1
#4
#2
#3
0.52
0.83
0.4 0.1
0.4 0.1
Please specify the model name and frequency when you order products.
For further questions regarding specifications, please feel free to contact us.
