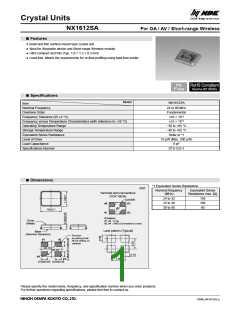

Crystal Units
NX1612SA
For OA / AV / Short-range Wireless
Features
■
A small and thin surface-mount type crystal unit.
● Ideal for Wearable device and Short-range Wireless module.
● Ultra compact and thin (Typ. 1.6 × 1.2 × 0.3 mm)
● Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
Specifications
■
Model
NX1612SA
Item
Nominal Frequency
24 to 80 MHz
Fundamental
±10 × 10−6
Overtone Order
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
±15 × 10−6
−30 to +85 °C
−40 to +85 °C
Refer to *1
10 μW (Max. 200 μW)
8 pF
Load Capacitance
Specifications Number
STD-CIS-1
Dimensions
■
*1 Equivalent Series Resistance
mm
Nominal frequency
(MHz)
Equivalent Series
Resistance max. [Ω]
Terminal land connections
(TOP VIEW)
24 to 32
32 to 38
38 to 80
150
100
80
COVER
#4
#1
#3
1.6 0.1
#2
TERMINAL
Cover
(Metal)
#1, #3 : X’ tal
#2, #4 : GND (Connected to cover)
Land pattern (Typical)
Base
(Alumina Ceramics)
Terminal
Au plating finish
Ni pre-plating on
metalize
#1
#2
C0.15
C0.15
0.75
1.05
#4
#3
0.55 0.05
0.55 0.05
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
1509B_NX1612SA_e
