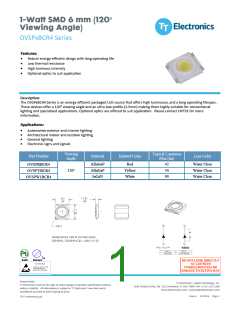

OVSPxBCR4 Series
Features:
Robust energy-efficient design with long operaꢁng life
Low thermal resistance
High luminous intensity
Opꢁonal opꢁcs to suit applicaꢁon
Descripꢀon:
The OVSPxBCR4 Series is an energy-efficient packaged LED source that offers high luminance, and a long operaꢁng lifespan.
These devices offer a 120° viewing angle and an ultra-low profile (1.5mm) making them highly suitable for convenꢁonal
lighꢁng and specialized applicaꢁons. Opꢁonal opꢁcs are offered to suit applicaꢁon. Please contact OPTEK for more
informaꢁon.
Applicaꢀons:
Automoꢁve exterior and interior lighꢁng
Architectural indoor and outdoor lighꢁng
General lighꢁng
Electronic signs and signals
Viewing
Angle
Typical Luminous
Flux (lm)
Part Number
Material
Emitted Color
Lens Color
AllnGaP
AllnGaP
InGaN
Red
42
34
90
Water Clear
Water Clear
Water Clear
OVSPRBCR4
OVSPYBCR4
OVSPW1BCR4
120°
Yellow
White
WHITE
2a
Moisture
RoHS
DO NOT LOOK DIRECTLY
AT LED WITH
UNSHIELDED EYES OR
DAMAGE TO RETINA MAY
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue A 11/2016 Page 1
© TT electronics plc
°
OVSPxBCR4 Series
Electrical Specificaꢀons
Absolute Maximum Raꢀngs (TA = 25° C unless otherwise noted)
Red, Yellow
White
350mA
1000mA
DC Forward Current
Peak Pulsed Forward Current1
Reverse Voltage
400mA
500mA
12V
Not designed for reverse
bias
Juncꢁon Temperature2
Power Dissipaꢁon
125°C
1200mW
150°C
1200mW
Storage and Operaꢁng Temperature
MSL Level (IPC/JEDEC J-STD-020C)
ESD Threshold (HBM)
-40° ~ +100 ° C
2a / 672 Hrs
Class 2
-40° ~ +100 ° C
2a / 672 Hrs
Class 2
Opꢁcal and Electrical Characterisꢁcs—Red, Yellow (IF = 400 mA, TA = 25° C)
SYMBOL
PARAMETER
MIN
2.2
33
TYP
2.5
42
MAX
2.8
54
UNITS
V
VF
Forward Voltage
Red
lm
Φ
Luminous Flux
Yellow
Red
27
34
42
lm
620
585
----
----
625
591
100
120
630
597
----
nm
nm
µA
λD
Dominant Wavelength
Yellow
IR
Reverse Current
50% Power Angle
2 Θ½
----
deg
Opꢁcal and Electrical Characterisꢁcs—White (IF = 350 mA, TA = 25° C)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
VF
Φ
Forward Voltage
Luminous Flux
3.0
67
3.5
90
4.0
113
----
V
lm
2 Θ½
50% Power Angle
----
120
deg
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue A 11/2016 Page 2
© TT electronics plc
°
OVSPxBCR4 Series
Standard Bins
LEDs are sorted to the luminous flux (Φ) and the dominant wavelength (nm) bins shown. Each reel consists of a single in-
tensity bin and a single color bin. Orders are filled uꢁlizing all of the intensity bins or color bins listed in the following tables.
Optek will not accept orders for single intensity bins or single color bins.
Luminous Intensity (IV ) @ 400mA
Dominant Wavelength (nm)
Red: OVSPRBCR4
Red: OVSPRBCR4
IV Code
AC
Min (lm)
Max (lm)
nm Code
Full
Min (nm)
620
Max (nm)
630
33
42
42
54
AD
Yellow: OVSPYBCR4
Yellow: OVSPYBCR4
nm Code
Min (nm)
585
Max (nm)
IV Code
AB
Min (lm)
Max (lm)
A
B
C
D
588
591
594
597
27
34
34
42
588
AC
591
594
Beam Angle — All Colors
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue A 11/2016 Page 3
© TT electronics plc
°
OVSPxBCR4 Series
Standard Bins (IF = 350mA)
LEDs are sorted to the luminous flux (Φ) and the dominant wavelength (nm) bins shown. Each reel consists
of a single intensity bin and a single color bin. Orders are filled utilizing all of the intensity bins or color bins
listed in the following tables. Optek will not accept orders for single intensity bins or single color bins.
Luminous Flux (lm)
Φ
Bin
T2
T3
U2
U3
Min
67
76
87
99
Max
76
87
99
113
Chromaticity Coordinates (x, y)
Ran
YO
YA
k
Cx 0.274 0.303 0.308 0.283 0.283 0.308 0.311 0.290
Cy 0.301 0.333 0.311 0.284 0.284 0.311 0.293 0.270
Ran
XM
XN
XO
XP
k
Cx 0.301 0.314 0.315 0.303 0.303 0.315 0.316 0.305 0.305 0.316 0.318 0.308 0.308 0.318 0.320 0.311
Cy 0.342 0.353 0.343 0.333 0.333 0.343 0.332 0.322 0.322 0.332 0.319 0.311 0.311 0.319 0.301 0.293
Ran
k
WM
WN
WO
WP
WQ
Cx 0.314 0.329 0.329 0.315 0.315 0.329 0.329 0.316 0.316 0.329 0.329 0.318 0.318 0.329 0.329 0.319 0.319 0.329 0.330 0.320
Cy 0.353 0.366 0.354 0.343 0.343 0.354 0.343 0.332 0.332 0.343 0.330 0.319 0.319 0.330 0.319 0.310 0.310 0.319 0.311 0.301
Ran
k
VM
VN
VO
VP
Cx 0.329 0.348 0.347 0.329 0.329 0.347 0.346 0.329 0.329 0.346 0.344 0.329 0.329 0.344 0.343 0.329
Cy 0.366 0.383 0.368 0.354 0.354 0.368 0.357 0.343 0.343 0.357 0.343 0.330 0.330 0.343 0.331 0.319
Ran
k
UM
UN
UO
UP
Cx 0.348 0.367 0.364 0.347 0.347 0.364 0.362 0.346 0.346 0.362 0.359 0.344 0.344 0.359 0.357 0.343
Cy 0.383 0.400 0.383 0.368 0.368 0.383 0.372 0.357 0.357 0.372 0.356 0.343 0.343 0.356 0.343 0.331
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
www.ꢀelectronics.com | sensors@ꢀelectronics.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue A 11/2016 Page 4
© TT electronics plc
°
OVSPxBCR4 Series
Typical Electro-Optical Characteristics Curves—Red, Yellow
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue A 11/2016 Page 5
© TT electronics plc
°
OVSPxBCR4 Series
Typical Electro-Optical Characteristics Curves—White
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
www.ꢀelectronics.com | sensors@ꢀelectronics.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue A 11/2016 Page 6
© TT electronics plc
°
OVSPxBCR4 Series
Solder Pad Design
Metal core circuit board (MCPCB) is highly recommended for high density applications.
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue A 11/2016 Page 7
© TT electronics plc
°
OVSPxBCR4 Series
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
www.ꢀelectronics.com | sensors@ꢀelectronics.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue A 11/2016 Page 8
© TT electronics plc
°
OVSPxBCR4 Series
Reel Dimensions: 13 - inch reel
Carrier Tape Dimensions: Loaded quantity 2000 pieces per reel
Moisture Resistant Packaging
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
www.ꢀelectronics.com | sensors@ꢀelectronics.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue A 11/2016 Page 9
© TT electronics plc
