0RQB-X3S11F

型号：

0RQB-X3S11F

品牌：

BEL[ BEL FUSE INC. ]

页数：

18 页

PDF大小：

1265 K

下载PDF手册

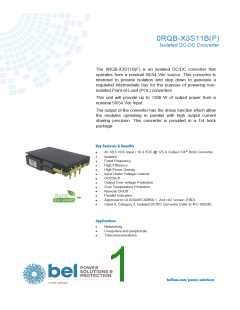

0RQB-X3S11B(F)
Isolated DC-DC Converter
The 0RQB-X3S11B(F) is an isolated DC/DC converter that
operates from a nominal 50/54 Vdc source. This converter is
intended to provide isolation and step down to generate a
regulated intermediate bus for the purpose of powering non-
isolated Point-of-Load (POL) converters.
This unit will provide up to 1300 W of output power from a
nominal 50/54 Vdc input.
The output of the converter has the droop function which allow
the modules operating in parallel with high output current
sharing precision. This converter is provided in a 1/4 brick
package.
Key Features & Benefits
45-58.5 VDC Input / 10.4 VDC @ 125 A Output /1/4th Brick Converter
Isolated
Fixed Frequency
High Efficiency
High Power Density
Input Under Voltage Lockout
OCP/SCP
Output Over-voltage Protection
Over Temperature Protection
Remote On/Off
Parallel Indication
Approved to UL/CSA/IEC60950-1, 2nd +A2 version (TBD)
Class II, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
Applications
Networking
Computers and peripherals
Telecommunications
belfuse.com/power-solutions
2
0RQB-X3S11B(F)
1. MODEL SELECTION
MODEL
MODEL
OUTPUT
INPUT
MAX. OUTPUT MAX. OUTPUT
TYPICAL
NUMBER
NUMBER
VOLTAGE
VOLTAGE
45 VDC – 58.5
VDC
CURRENT
POWER
EFFICIENCY
0RQB-X3S11B
0RQB-X3S11F
10.4 VDC
125 A
1300 W
96.9%
NOTE: Add “G” suffix at the end of the model number to indicate Tray Packaging.
PART NUMBER EXPLANATION
0
R
QB
-
X3
S
11
x
G
RoHS
Status
Series
Name
Output
Power
Input
Range
Output
Voltage
Mounting Type
Active Logic
Package Type
B – active low, with
HSK plate, Pin
Length 0.18”
F – active low, with
HSK plate, Pin
length 0.125”
45 –
58.5V
Through hole mount
RoHS
1/4th Brick
1300 W
10.4 V
G – Tray package
2. ABSOLUTE MAXIMUM RATINGS
PARAMETER
DESCRIPTION
MIN
-0.3
-0.3
-5
TYP
MAX
58.5
16
UNITS
Continuous non-operating Input Voltage
Remote On/Off
-
-
-
V
V
Long-Term Operating. All components on the
Unit meet IPC-9592 (latest revision) derating
guidelines.
85
C
Ambient Temperature
Short-Term Operating (96 hours/year). Unit’s
component temperatures exceed IPC-9592
(latest revision) derating guidelines but not
exceed component temperature ratings.
Maximum operating temperature will be
decreased 1°C per 1000 Feet of altitude above
sea-level
-20
-
90
C
Altitude
-500
-40
-
-
13120
100
feet
Storage Temperature
C
NOTE: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may permanently damage the device.
tech.support@psbel.com
belfuse.com/power-solutions
3
0RQB-X3S11B(F)
3. INPUT SPECIFICATIONS
All specifications are typical at 25°C unless otherwise stated.
PARAMETER
DESCRIPTION
MIN
TYP
50/54
-
MAX
UNIT
V
Operating Input Voltage
Input Current (full load)
Input Current (no load)
Remote Off Input Current
45
-
58.5
31
-
A
-
130
10
mA
mA
-
-
Input Reflected Ripple Current (rms)
Input Reflected Ripple Current (pk-pk)
-
-
5
10
50
mA
mA
10uH source impedance, Vin=45-56V,
Io=Iomax. Refer to section 12 for detail input
capacitance and waveforms.
20
Input Terminal Ripple Current(RMS)
-
-
1300
mA
Input Turn on Voltage Threshold
Input Turn off Voltage Threshold
Over-voltage Shutdown Threshold
Input C-L-C filter
42.5
39
44
41
-
45.0
42.5
64
V
V
V
61
Recommended input fast-acting fuse on
system board
40
-
-
A
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
4
0RQB-X3S11B(F)
4. OUTPUT SPECIFICATIONS
All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
PARAMETER
DESCRIPTION
MIN
TYP
10.6
-
MAX
10.65
11
UNIT
V
Vin = 52V, Pout = 650W
10.55
Output Voltage Set Point
Vin = 45-56V
10.3
V
Load Regulation
Vin=52V,Io=0~100% load
Vin=45-56V, Io=100% load
Vin=50V, Io=100% load, Ta=-20~85C
-
-
-
-
-
0.4
30
100
-
0.53
40
V
Line Regulation
mV
mV
mV
mV
Regulation Over Temperature
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
200
150
30
Cout = 750uF minimum, approximately 50%
ceramic, 50% Oscon or POSCAP.
-
Output Ripple and Noise(Pk-Pk) under Over all operating input voltage, load and
-
-
200
mV
worst case
ambient temperature condition.
Output Current Range
0
-
-
125
-
A
A
Output DC Current Limit
Rise time
hiccup mode, non-latching.
130
Defined as time between Vout at 10% of final
value and Vout at 90% of final value.
Defined as time between Vin reaching Turn-
On voltage and Vout reaching 10% of final
value.
-
-
-
15
30
ms
ms
20
Turn on Time
Defined as time between Enable and Vout
reaching 10% of final value.
-
-
5
ms
Overshoot at Turn on
Output Capacitance
-
-
-
3
%
Typically 50% ceramic, 50% Oscon or
POSCAP.
0
6250
uF
Transient Response
△V 50%~75% of Max Load
Settling Time
-
-
-
-
-
-
-
-
350
mV
us
-
350
-
1A/us, 4000uF capacitors are near the brick
output.
△V 75%~50% of Max Load
Settling Time
mV
us
tech.support@psbel.com
belfuse.com/power-solutions
5
0RQB-X3S11B(F)
5. OUTPUT PLOT VS INPUT
NOTE
Parameter
Min
42.5
39
Typical
44
Max
45
Units
Turn on Voltage Threshold
Turn off Voltage Threshold
V
V
41
42.5
6. GENERAL SPECIFICATIONS
PARAMETER
Efficiency
DESCRIPTION
MIN
TYP
96.9
150
MAX
UNIT
%
Vin=50V, Io=125A, Ta=25℃
96.2
-
-
-
Switching Frequency
MTBF
Primary FETs
-
-
kHz
Mhrs
TBD
Reset will occur when over-temperature
condition is removed.
Over Temperature Protection
-
130
-
℃
Output Over Voltage Protection
Weight
-
-
-
15
-
V
g
87.4
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.30 x 1.45 x 0.57
58.42 x 36.83 x 14.50
Isolation Characteristics
Input to Output
-
10M
-
-
-
500
V
Ohm
pF
Isolation Resistance
Isolation Capacitance
-
-
1000
North America
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+1 408 785 5200
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
6
0RQB-X3S11B(F)
7. EFFICIENCY DATA
Efficiency @ light load
99.00%
97.00%
95.00%
93.00%
91.00%
89.00%
45V
50V
56V
6.25
12.5
25
37.5
50
62.5
Output current (A)
Efficiency @ heavy load
98.00%
97.50%
97.00%
96.50%
96.00%
45V
50V
56V
75
87.5
100
112.5
125
Output current (A)
tech.support@psbel.com
belfuse.com/power-solutions
7
0RQB-X3S11B(F)
8. REMOTE ON/OFF
PARAMETER
DESCRIPTION
MIN
TYP
MAX
0.8
16
UNIT
Signal Low (Unit On)
Active Low
Signal High (Unit Off)
-0.3
-
-
-
-
-
-
-
V
V
Remote On/Off pin is open, the module is off.
2.4
Module is on, Venab= -0.3-0.8V
Module is off, Venab=2.4V
-
10
-
200
-
μA
μA
μA
μA
V
Current (Out of pin)
Current (into pin)
Remote on/off pin is pulled up to 10V.
Remote on/off pin is pulled up to 15V.
300
500
15
-
Open circuit voltage
-
Recommended remote on/off circuit for active low
Control with open collector/drain circuit
Control with photocoupler circuit
Control with logic circuit
Permanently on
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
8
0RQB-X3S11B(F)
9. THERMAL DERATING CURVE
Thermal Considerations
New high power architectures require an accurate thermal design. Design engineers have to optimize the module working
conditions and ensure reliable operation. Convection cooling is the common mode to cool down the module. Heat transfer is
dependent on a test setup and it is important to characterize the module in an environment similar to existent electronic
applications. Reported thermal data reflects real operating conditions because the values are physically measured in a wind
tunnel.
Thermal Test Setup
A module in electronic cards is typically located in a busy area without relevant space around it.
To simulate a real condition and avoid turbulence we add a cover with defined dimensions.
The distance has to be 6.35mm (0.25”inch) from the top of the module and 6.35mm (0.25”inch) on the left and
right side of the module.
The values reflect most of the real applications and it is a common procedure in the power module market.
Ambient temperature and airflow are measured in front of the module at the distance of 76.2mm (3”inch).
0RQB-X3S11B + External heatsink
0RQB-X3S11B
Tests setup drawing all measures are in inch
*The size of external heatsink is 2.30” x 1.45” x 0.61”, recommended model number: S08CAA02 from ALPHA
tech.support@psbel.com
belfuse.com/power-solutions
9
0RQB-X3S11B(F)
THERMAL DERATING CURVE
(15,1000)
(10,1000)
(25,994)
(35,970)
(45,930)
(15,990)
(25,950)
(55,885)
(35,910)
(45,860)
(54,810)
(68,808)
(75,750)
(80,700)
(65,730)
(85,615.6)
(75,640)
(85,507.6)
For 0RQB-X3S11B(F)
Note: Output power vs. ambient temperature and air velocity @Vin=56V (Longitudinal Orientation, airflow from Vout to Vin)
For 0RQB-X3S11B(F) + External heatsink
Note: Output power vs. ambient temperature and air velocity @Vin=56V (Longitudinal Orientation, airflow from Vout to Vin)
Heatsink information: S08CAA02 from ALPHA
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
10
0RQB-X3S11B(F)
10. RIPPLE AND NOISE
Notes: Ripple and noise, 50Vdc input, 1300W output, Ta=25 deg C, with Cout = 3100uF
11. TRANSIENT RESPONSE
50%-75% Load Transients at Vin=50V@Ta=25℃
75%-50% Load Transients at Vin=50V@Ta=25℃
tech.support@psbel.com
belfuse.com/power-solutions
11
0RQB-X3S11B(F)
12. INPUT NOISE
Input reflected ripple current
Testing set up
Notes and values in testing.
is: Input Reflected Ripple Current
ic: Input Terminal Ripple Current
Ls: Simulated Source Impedance (12μH)
Cs: Offset possible source Impendence (100μF, ESR<0.2Ω @ 100kHz, 20C)
Cin: Electrolytic capacitor, should be as closed as possible to the power module to swallow ic ripple
current and help with stability. Recommendation: 100μF, ESR<0.2Ω @ 100kHz, 20C.
Below measured waveforms are based on above simulated and recommended inductance and capacitance.
is (input reflected ripple current), AC component
ic (input terminal ripple current), AC component
Test condition: 50Vdc input, 1300W output and Ta=25 deg C, with 31 * 100 μF ceramic capacitor at output.
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
12
0RQB-X3S11B(F)
13. STARTUP&SHUTDOWN
Rise time
Test Condition: Vin=50V, Po=1300W, with 31 * 100 µF ceramic capacitor and 3200uF AL. cap at output.
Startup time
Startup from Vin
Ch1: Vo
Startup from on/off
Ch1: Vo
Ch3: Vin
Ch3: on/off
Test Condition: Vin=50V, Po=1300W, with 31 * 100 μF ceramic capacitor and 3200uF AL. cap at output
tech.support@psbel.com
belfuse.com/power-solutions
13
0RQB-X3S11B(F)
14. INPUT UNDER-VOLTAGE LOCKOUT
V1=41V
V2=44V
North America
Asia-Pacific
Europe, Middle East
+353 61 225 977
+1 408 785 5200
+86 755 298 85888
© 2017 Bel Power Solutions & Protection
Rev. AE
14
0RQB-X3S11B(F)
15. POWER GOOD
1. The Power Good signal is a non-latching open-collector output that is Low during normal operation and is pulled High when any of the
following conditions occur:
• Over-Temperature
• Over-Current
• Vout is outside of the DC Output Band while Vin is within the Vin Operating Range
• Vin is within the Vin Operating Range but the unit is not operating (to determine if 1 Unit used in a parallel configuration is not
operating)
• Vin is outside of the Vin Operating Range
2. The Power Good signal is referenced to Vout(-).
PARAMETER
DESCRIPTION
MIN
8.2
TYP
MAX
8.6
UNIT
Output Voltage Low (trigger limits)
Output Voltage High (trigger limits)
-
-
V
V
12.6
13.1
PG signal indicats good when Vin is within
operating range and indicats bad ~20ms before
unit is shut-down due to UV.
Input Voltage Low (trigger limits)
Rising
42.5
-
45
V
Hysteresis
-
1
-
-
V
V
High State Voltage
0
5.5
High State Leakage Current (into
Pin)
0
-
10
µA
Low State Voltage
0
0
0
-
-
-
0.8
5
V
Low State Current (into Pin)
mA
ms
Duration between the fault occurring and the
Power-Good Signal de-asserting
Power Good Signal De-assert
Response Time
3
Power Good Signal Assert Response
Time
Duration between unit powering up with no
faults and the Power Good Signal asserting
Duration the Power-Good signal stays de-
asserted if a transient fault occurs
0
-
3
ms
ms
Power Good Signal Duration
200
600
10degC
below
OTP
For OT Warning, the PG signal will toggle as an
impulse wave.
Over Temperature Warning
-
-
-
threshold
OT Warning PG signal frequence
OT Warning PG signal duty cycle
90
100
50
110
kHZ
%
47.5
52.5
tech.support@psbel.com
belfuse.com/power-solutions
15
0RQB-X3S11B(F)
16. MECHANICAL DIMENSIONS
0RQB-X3S11B
PIN CONNECTIONS
PIN
FUNCTION
FUNCTION
PIN SIZE
Positive input
voltage
1
Vin (+)
0.04"
0.04"
Input to turn
2
ON/OFF
converter on and off,
referenced to Vin(-)
Negative input
voltage
3
4
Vin (-)
0.04"
Negative output
voltage
Vout(-)
0.062"
Negative output
voltage
5
6
7
Vout(-)
PGOOD
Vout(+)
0.062"
0.04"
Power-Good
Positive output
voltage
SQ0.05"
SQ0.05"
Positive output
voltage
8
Vout(+)
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered using a peak solder
temperature of no more than 260 ºC for less than 5 seconds.
NOTES:
1) All Pins: Material - Copper Alloy;
Finish – Tin plated
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches; Tolerances: x.xx +/-0.02 in [0.51 mm].
x.xxx +/-0.010 in [0.25 mm].
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2017 Bel Power Solutions & Protection
Rev. AE
16
0RQB-X3S11B(F)
MECHANICAL DIMENTIONS(CONTINUED)
0RQB-X3S11F
PIN CONNECTIONS
PIN
FUNCTION
FUNCTION
PIN SIZE
Positive input
voltage
1
Vin (+)
0.04"
0.04"
Input to turn
2
ON/OFF
converter on and off,
referenced to Vin(-)
Negative input
voltage
3
4
Vin (-)
0.04"
Negative output
voltage
Vout(-)
0.062"
Negative output
voltage
5
6
7
Vout(-)
PGOOD
Vout(+)
0.062"
0.04"
Power-Good
Positive output
voltage
SQ0.05"
SQ0.05"
Positive output
voltage
8
Vout(+)
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered using a peak solder
temperature of no more than 260 ºC for less than 5 seconds.
NOTES:
1) All Pins: Material - Copper Alloy;
Finish – Tin plated
2) Undimensioned components are shown for visual reference only.
All dimensions in inches; Tolerances: x.xx +/-0.02 in [0.51 mm].
x.xxx +/-0.010 in [0.25 mm].
tech.support@psbel.com
belfuse.com/power-solutions
17
0RQB-X3S11B(F)
MECHANICAL DIMENSIONS(CONTINUED)
0RQB-X3S11B/0RQB-X3S11F
NOTES:
1) All Pins: Material - Copper Alloy;
Finish – Tin plated
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches; Tolerances: x.xx +/-0.02 in [0.51 mm], x.xxx +/-0.010 in [0.25 mm].
North America
Asia-Pacific
Europe, Middle East
+353 61 225 977
+1 408 785 5200
+86 755 298 85888
© 2017 Bel Power Solutions & Protection
Rev. AE
18
0RQB-X3S11B(F)
17. REVISION HISTORY
DATE
REVISION
CHANGES DETAIL
APPROVAL
2016-04-14
2016-12-05
2017-04-07
2017-08-04
2017-09-27
AA
AB
AC
AD
AE
First release
J Yan
J Yan
J Yan
J Yan
J Yan
Update Cover, input specs, output specs, general, Efficiency data, TD, NR, TR.
Add PN and Mechanical drawing of 0RQB-X3S11F.
Add Output Plot VS Input.
Update General Specifications, Efficiency data, Input voltage max and Power good.
For more information on these products consult: tech.support@psbel.com
NUCLEAR AND MEDICAL APPLICATIONS - Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
tech.support@psbel.com
belfuse.com/power-solutions
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8X 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0S12BG [ DC-DC Regulated Power Supply Module, ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215817s
