LY8209_13

型号：

LY8209_13

品牌：

LYONTEK[ Lyontek Inc. ]

页数：

17 页

PDF大小：

721 K

下载PDF手册
®

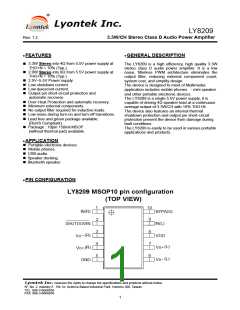

LY8209
Rev. 1.2
3.3W/CH Stereo Class D Audio Power Amplifier
„
FEATURES
„
GENERAL DESCRIPTION
„ 3.3W Stereo into 4Ω from 5.5V power supply at
THD+N = 10% (Typ.).
„ 2.0W Stereo into 8Ω from 5.5V power supply at
THD+N = 10% (Typ.).
The LY8209 is a high efficiency, high quality 3.3W
stereo class D audio power amplifier. It is a low
noise, filterless PWM architecture eliminates the
output filter, reducing external component count,
system cost, and simplify design.
„ 2.5V~5.5V Power supply.
„ Low shutdown current.
„ Low quiescent current.
„ Output pin short-circuit protection and
automatic recovery.
„ Over-Heat Protection and automatic recovery.
„ Minimum external components.
„ No output filter required for inductive loads.
„ Low noise during turn-on and turn-off transitions.
„ Lead free and green package available.
(RoHS Compliant)
„ Package : 10pin 150mil MSOP
(without thermal pad) available.
The device is designed to meet of Multimedia
application includes mobile phones 、mini speaker
and other portable electronic devices.
The LY8209 is a single 5.5V power supply, it is
capable of driving 4Ω speaker load at a continuous
average output of 3.3W/CH with 10% THD+N.
The device also features an internal thermal
shutdown protection and output pin short-circuit
protection prevent the device from damage during
fault conditions.
The LY8209 is easily to be used in various portable
applications and products.
„
APPLICATION
„ Portable electronic devices.
„ Mobile phones.
„ USB audio.
„ Speaker docking.
„ Bluetooth speaker.
„
PIN CONFIGURATION
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
PIN DESCRIPTION
Pin No.
SYMBOL
DESCRIPTION
MSOP10
INR
1
2
Input of right channel.
Shutdown
Vo-(R)
Vo+(R)
GND
Shutdown control pin. (when LOW level is shutdown mode).
Negative(-) BTL output of right channel.
Positive(+) BTL output of right channel.
Ground
3
4
5
Vo-(L)
Vo+(L)
VDD
6
Negative(-) BTL output of left channel.
Positive(+) BTL output of left channel.
Power supply of left and right channel.
Input of left channel.
7
8
INL
9
BYPASS
10
Bypass pin.
„
ORDERING INFORMATION
Speaker
Ordering Code
Pin/
Package
Output Power
(THD+N=10%)
Input
Type
Output
Type
Channels
3.3W/4Ω @5.5V_BTL
2.8W/4Ω @5.0V_BTL
2.0W/8Ω @5.5V_BTL
1.6W/8Ω @5.0V_BTL
LY8209U
Stereo
MSOP10
SE
BTL
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
TYPICAL APPLICATION CIRCUIT
Figure 1. LY8209 Typical Application Circuit
„
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
VDD
RATING
6.0
UNIT
V
Supply Voltage
℃
Operating Temperature
Input Voltage
TA
-40 to 85 (I grade)
-0.3V to VDD +0.3V
-65 to 150
Internally Limited
2000
VI
V
℃
Storage Temperature
Power Dissipation
TSTG
PD
W
V
℃
℃
ESD Susceptibility
VESD
TJMAX
TSOLDER
Junction Temperature
Soldering Temperature (under 10 sec)
150
260
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
3
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
ELECTRICAL CHARACTERISTICS (TA = 25℃)
PARAMETER
TYP. *2
SYMBOL
TEST CONDITION
MIN.
MAX. UNIT
Power supply voltage
-
2.5
-
5.5
V
VDD
VDD = 5.0V, RL=4Ω
VDD = 3.7V, RL=4Ω
VDD = 2.5V, RL=4Ω
-
-
-
-
6.5
5.5
5.0
0.1
-
-
-
-
-
-
Quiescent Current
IQ
mA
Shutdown Current
Shutdown voltage input high
Shutdown voltage input low
ISD
≦
A
µ
VSHUTDOWN 0.8V,
1.5
-
VSDIH
VSDIL
V
VDD = 5.0V
-
0.3
VDD = 5.0V VI=0V,
Av=11V/V
,
Output offset voltage
-
-
95
mV
VOS
Shutdown temp.
Restore temp.
VDD= 2.5V to 5.5V
-
-
150
110
-
-
Thermal shutdown temperature
Total Gain *1
TSD
Gv
℃
[150KΩ / (5KΩ+Ri)] x4
V/V
(*1)The audio amplifier’s gain is determined by：
Pre-Amplifier Gain = [150KΩ / ( 5KΩ + Ri )] x 2
Total Gain = {[150KΩ / ( 5KΩ + Ri )] x 2} x 2
where Ri is the external serial resistance at the input pin.
(*2)Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VDD = VDD(TYP.) and TA = 25℃
„
OPERATING CHARACTERISTICS (1) (Stereo mode) (TA = 25℃)
PARAMETER
TYP. *2
SYMBOL
TEST CONDITION
MIN.
MAX. UNIT
Av=11 V/V ,Input=GND
PSRR Ri=51K, Ci=0.1μF
-
-58
-
f=1KHz
Power supply rejection ratio
dB
f=217Hz
-
-59
-
RL=4Ohm, VDD=5.0V
LÆR
RÆL
-
-
-77
-80
-
Crosstalk
(Stereo mode)
0.25W=0dB, f=1kHz,
Cs
dB
-
RL = 4Ω, VDD=5.0V
Av=11 V/V, RL = 8Ω,
SNR Input pin floating,
1W=0dB
Signal-to-noise ratio
Output voltage noise
-
-
84
-
-
dB
VDD=5.0V
VDD=5.0V
Av=11 V/V, RL = 8Ω,
Vn
Input pin floating,
f = 20 Hz to 20 kHz,
VDD=2.5V~5.5V
130
uVRMS
-
-
kHz
%
-
220
89
Frequency
Efficiency
Fc
VDD=5.0V,f=1kHz,
RL=8Ω, Output=1.8W
η
-
(*2)Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VDD = VDD(TYP.) and TA = 25℃
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
4
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
OPERATING CHARACTERISTICS (2) (TA = 25℃)
TYP. *2
3.3
2.8
1.5
0.6
2.7
2.2
1.2
0.5
2.0
1.6
0.9
0.4
1.6
1.3
0.7
0.3
SYMBOL
TEST CONDITION
MIN.
MAX. UNIT
PARAMETER
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
VDD=5.5V
THD+N= 10%, f = 1 kHz
RL= 4Ω
THD+N= 1%, f = 1 kHz,
RL= 4Ω
-
-
Output Power
PO
W
THD+N= 10%, f = 1 kHzVDD=5.0V
-
-
-
-
-
-
-
RL= 8Ω
VDD=3.7V
VDD=2.5V
VDD=5.5V
THD+N= 1%, f = 1 kHz,
VDD=5.0V
RL= 8Ω
VDD=3.7V
VDD=2.5V
(*2)Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VDD = VDD(TYP.) and TA = 25℃
„
TYPICAL PERFORMACE CHARACTERISTICS
Figure 2.
Total Harmonic Distortion + Noise vs Output Power (RL = 4Ω, Stereo mode)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
5
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Figure 3.
Total Harmonic Distortion + Noise vs Output Power (RL = 8Ω, Stereo mode)
Figure 4.
SNR vs. Noise Level
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
6
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Figure 5.
Crosstalk
Figure 6
FCC Class-B (Vertical)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
7
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Figure 7
FCC Class-B (Horizontal)
Figure 8
CISPR Class-B (Vertical)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
8
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Figure 9
CISPR Class-B ( Horizontal)
SD Current vs. SD Voltage
Quiescent Current vs. Supply voltage
SHUTDOWN CURRENT vs SHUTDOWN VOLTAGE
QUIESCENT CURRENT vs SUPPLY VOLTAGE
8
6
4
2
0
10
9
No Load
4Ω, 2ch
8Ω, 2ch
2.5V
3.7V
5V
8
7
6
5
4
3
2
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
2.5
3
3.7
4.2
5
5.5
6
VDD - Supply Voltage - V
Shutdown Voltage - V
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
9
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Supply Current vs. Output Power (RL=4Ω)
Supply Current vs. Output Power (RL=8Ω)
SUPPLY CURRENT vs OUTPUT POWER
SUPPLY CURRENT vs OUTPUT POWER
1400
900
2.5V(D)
2.5V(D)
800
1200
1000
800
600
400
200
0
3.7V(D)
5V(D)
3.7V(D)
700
600
500
400
300
200
100
0
5V(D)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
0
0.2
0.4
0.8
1.2
1.6
2
2.4
Po - Output Power - W RL=8Ω
Po-Output Power-W RL=4Ω
Load Resistance vs. Output Power (THD+N=10%)
Load Resistance vs. Output Power (THD+N=1%)
Output Power vs Load Resistance
Output Power vs Load Resistance
4.50
3.50
2.5V
2.5V
4.00
3.50
3.7V
5V
3.00
2.50
2.00
1.50
1.00
0.50
0.00
3.7V
5V
6V
6V
3.00
4.2V
5.5V
4.2V
2.50
5.5V
2.00
1.50
1.00
0.50
0.00
4Ω
8Ω
12Ω
16Ω
20Ω
24Ω
28Ω
32Ω
4Ω
8Ω
12Ω
16Ω
20Ω
24Ω
28Ω
32Ω
Load Resistance
Load Resistance
Output Power vs. VDD (RL=8Ohm)
Output Power vs. VDD (RL=4Ohm)
OUTPUT POWER vs. SUPPLY VOLTAGE(4Ω)
OUTPUT POWER vs. SUPPLY VOLTAGE(8Ω)
4.5
2.8
THD+N=10%
THD+N=1%
THD+N=10%
THD+N=1%
4
2.4
2
3.5
3
1.6
1.2
0.8
0.4
0
2.5
2
1.5
1
0.5
0
2.5V
3.7V
4.2V
5V
5.5V
6V
2.5V
3.7V
4.2V
5V
5.5V
6V
VDD-Supply Voltage-V (RL=8Ohm, f=1KHz, Av=11 V/V)
VDD-Supply Voltage-V (RL=4Ohm, f=1KHz, Av=11 V/V)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
10
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Efficiency vs. Output Power (8Ohm) 3.7V
Efficiency vs. Output Power (8Ohm) 5.0V
Efficiency vs Output Power(W)
(RL=8Ω SPEAKER+33uH),VDD=5V
Efficiency vs Output Power(W)
(RL=8Ω SPEAKER+33uH),VDD=3.7V
100
90
80
70
60
50
40
30
20
10
0
100
90
80
70
60
50
40
30
20
10
0
0
0.1 0.2 0.4 0.6 0.8
1 1.2 1.4 1.6 1.8
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
Po-Output Power(W)
1
Po-Output Power(W)
Efficiency vs. Output Power (4Ohm) 3.7V
Efficiency vs. Output Power (4Ohm) 5.0V
Efficiency vs Output Power(W)
Efficiency vs Output Power(W)
(RL=4Ω SPEAKER+33uH),VDD=3.7V
RL=4Ω SPEAKER+33uH,VDD=5V
100
100
90
80
70
60
90
80
70
60
50
40
30
20
10
0
50
40
30
20
10
0
0
0.1 0.2 0.4 0.6 0.8
1 1.2 1.4 1.5 1.6
0
0.1 0.2 0.4 0.8
1
1.2 1.6
2 2.4 2.8
Po-Output Power(W)
Po-Output Power(W)
Dissipation vs. Output Power (8Ohm)
Dissipation vs. Output Power (4Ohm)
POWER DISSIPATION vs OUTPUT POWER
POWER DISSIPATION vs OUTPUT POWER
0.3
0.25
0.2
1.2
1
(5V)PD
(5V)PD
(3.7V)PD
(3.7V)PD
0.8
0.6
0.4
0.2
0
0.15
0.1
0.05
0
0
0.19 0.37 0.74 1.10 1.46 1.81 2.16 2.47 2.66 2.82 3.53 4.19 4.86
0
0.20 0.39 0.58 0.76 0.95 1.13 1.30 1.46 1.62 1.78
Po - Output Power - W RL=4Ω SPEAKER+33uH
Po - Output Power - W (RL=8Ω SPEAKER+33uH)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
11
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
APPLICATION INFORMATION
Input Resistors (Ri) and Gain
The LY8209 have two internal amplifier stages. The pre-amplifier gain is externally configurable, while the
total gain is internally fixed. The closed-loop gain of the pre-amplifier gain is set by selecting the Rf
(Rf=150KΩ) to Ri while the total gain is fixed at 4x. So the input resistors (Ri) set the gain of the amplifier
according to the equation.
Pre-Amplifier Gain = (Rf / Ri) x 2
Total Gain = [(Rf / Ri ) x 2] x 2
AVD = 20 x log [4 x (Rf /Ri )]
The resistor matching is very important in the amplifiers. Balance of the output on the reference voltage
depends on matched ratio of the resistors. CMRR, PSRR, and cancellation of the second harmonic distortion
if resistor mismatch occurs. Therefore, it is recommended to use 1% tolerance resistors or better to keep the
performance optimized. Matching is more important than overall tolerance.
Resistor arrays with 1% matching can be used with a tolerance greater than 1%.Place the input resistors very
close to the LY8209 to limit noise injection on the high-impedance nodes. For optimal performance the gain
should be set to 4 V/V or lower. Lower gain allows the LY8209 to operate at its best,
For example
Table 1. Typical Total Gain and AVD Values
Rf (KΩ)
Ri (KΩ)
150
150
2
150
75
150
50
150
25
150
15
Pre AMP. Gain
Total Gain
AVD (db)
4
6
12
20
4
8
12
24
40
12.04
18.06
21.58
27.60
32.04
Input Capacitors (Ci)
The LY8209 using fully differential source, So the input coupling capacitors are required. The input capacitors
and input resistors form a high-pass filter with the corner frequency(fc), determined in the equation.
fc = 1 / ( 2πRi Ci )
The value of the input capacitor is important to consider as it directly affects the bass (low frequency)
performance of the circuit. Speakers in wireless phones cannot usually respond well to low frequencies, so
the corner frequency can be set to block low frequencies in this application. Equation is reconfigured to solve
for the input coupling capacitance.
Ci = 1 / ( 2πRi fc )
If the corner frequency is within the audio band, the capacitors should have a tolerance of ±10% or better,
because any mismatch in capacitance causes an impedance mismatch at the corner frequency and below.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
12
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
For example
In the table 2 shows the external components. Rin in connect with Cin to create a high-pass filter.
Table 2. Reference Component Values
Reference
Description
Note
Ri
Ci
150KΩ
51 KΩ
0.22uF 0.1uF
10.6Hz 14.18Hz 31.2Hz
1% tolerance resistors
80%/–20% non polarized
0.22uF
4.8Hz
0.1uF
corner frequency
Ci = 1 / ( 2πRi fc)
Ci = 1 / ( 2π x 150KΩ x 4.8Hz)=0.221uF，One would likely choose a value of 0.22uF as this value is
commonly used.
Bypass Capacitor (Cbypass)
The Bypass Capacitor (C3 ) is the most critical capacitor. During start-up or recovery from shutdown mode,
Cbypass determines the rate at which the amplifier starts up. The Cbypass will to reduce noise caused by the
power supply coupling into the output drive signal. This noise is from the internal analog reference to the
amplifier, which appears as degraded the PSRR and THD+N values. The bypass capacitor (C3 ) with values
of 1.0μF to 10.0μF is recommended for the best THD and noise performance. Therefore, increasing the
bypass capacitor reduces clicking and popping noise from power on/off and entering and leaving shutdown.
Table 3. CBYPASS Reference Component Values
SYMBOL
TEST CONDITION
MIN.
TYP.
560
300
150
120
460
250
135
100
MAX. UNIT
PARAMETER
VDD=5.0V,
Cbypass = 10.0μf
Cbypass = 4.7μf
Cbypass = 2.2μf
-
-
-
-
-
-
-
-
-
-
-
Ci=0.1uF,
Ri=51KΩ,
Av=11
Start-up time
from shutdown
C
bypass = 1.0μf
-
ZI
ms
VDD=3.7V,
Ci=0.1uF,
Ri=51KΩ,
Av=11
Cbypass = 10.0μf
Cbypass = 4.7μf
Cbypass = 2.2μf
Cbypass = 1.0μf
-
-
-
-
Shutdown Function
When the LY8209 not in use. The device will be to turn off the amplifier to reduce power consumption. When
logic low is applied to the shutdown pin, this shutdown feature will turns the amplifier off. By switching the
shutdown pin connected to GND, the device supply current draw will be minimized in idle mode. The pin
cannot be left floating due to the internal did not pull-up.
Over-Heat Protection
The LY8209 has a built-in over-heat protection circuit, it will turn off all power output when the chip
temperature over 150℃, the chip will return to normal operation automatically after the temperature cool down
to 110℃.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
13
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Short-circuit Protection
The LY8209 has short circuit protection circuitry on the outputs to prevent damage when output-to-output
short occurs. When a short circuit is detected on the outputs, the outputs are disabled immediately. If the short
was removed, the device activates again.
„
PCB LAYOUT
All the external components must place very close to the LY8209. The input resistors need to be very close to
the LY8209 input pins so noise does not couple on the high impedance nodes between the input resistors and
the input amplifier of the LY8209. Then place the decoupling capacitor Cs, close to the LY8209 is important
for the efficiency of the class-D amplifier. Any resistance or inductance in the trace between the device and
the capacitor can cause a loss in efficiency.
If device had AVDD(Analog VDD) pin, place the decoupling capacitor 0.1uF, close to the device pin is very
important.
Making the high current traces going to VDD, GND, VO+ and VO- pins of the LY8209 should be as wide as
possible to minimize trace resistance. If these traces are too thin, the LY8209's performance and output
power will decrease. The input traces do not need to be wide, but do need to run side-by-side to enable
common-mode noise cancellation.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
14
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
DEMO BOARD INFORMATION
Demo Board Application Circuit : (Stereo Mode)
Figure 10. Demo Board Application Circuit
Demo Board BOM List :
LY8209 V1.0 BOM List (Stereo Mode)
No.
Description
Reference
Note
1
2
3
Resistor, 47KΩ
Resistor, 100KΩ
Capacitor, 0.1uF
R1,R2
R9
C1,C2,C4
1/16W,1%
1/16W,1%
80%/−20%, non polarized
80%/−20%, non polarized
4
Capacitor, 4.7uF
C3
25V,105℃,8x11,EC Cap.
LY8209U, (MSOP10)
Pitch 2.54 mm
80%/−20%, nonpolarized
80%/−20%, nonpolarized
5
6
7
8
9
Capacitor, 220.0uF
IC
1*2 Pin Header
Capacitor, 330pF(Option) C12,C13,C15,C16
Capacitor, 390pF(Option) C11,C14
C6
U2
J2,J6
Chip Bead
1000Ω(1KΩ)±25%/100MHz
10
L1,L2,L3,L4,L5,L6
1KΩ/100MHz(Option)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
15
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
Demo Board Artwork :
Top Silkscreen
Top Layer
Composite view
Bottom Layer
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
16
®
LY8209
3.3W/CH Stereo Class D Audio Power Amplifier
Rev. 1.2
„
PACKAGE OUTLINE DIMENSION
MSOP 10 Pin Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
17
厂商 型号 描述 页数 下载

LYONTEK

 		LY8005 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8005UL 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8006 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006BL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006UL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8009VL [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8009_12 [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8010 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8010BL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8010CL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.162996s
