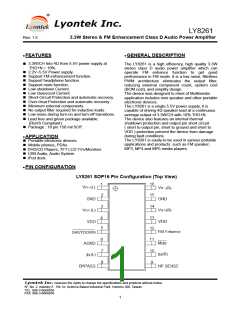

LY8261
3.3W Stereo & FM Enhancement Class D Audio Power Amplifier
Rev. 1.5
For example
In the table 2 shows the external components. Rin in connect with Cin to create a high-pass filter.
Table 2. Typical Component Values
Reference
Description
Note
Ri
Ci
150KΩ
0.22uF
1% tolerance resistors
80%/–20%
Ci = 1 / ( 2πRi fc)
Ci = 1 / ( 2π x 150KΩ x 4.8Hz)=0.221uF,Use 0.22uF
Decoupling Capacitor
The LY8261 is a high-performance class-D audio amplifier that requires adequate power supply decoupling to
ensure the efficiency is high and total harmonic distortion (THD) is low. For higher frequency transients, spikes, or
digital hash on the line, a good low equivalent-series-resistance (ESR) ceramic capacitor, typically 10.0uF, placed as
close as possible to the device VDD lead works best. Placing 0.1uF decoupling capacitor close to the LY8261 is very
important for the efficiency of the class-D amplifier, because any resistance or inductance in the trace between the
device and the capacitor can cause a loss in efficiency. For filtering lower-frequency noise signals, a 10.0uF or
greater capacitor placed near the audio power amplifier would also help, but it is not required in most applications
because of the high PSRR of this device.
Over-Heat Protection
The LY8261 has a built-in over-heat protection circuit at FM enhance pin enable, it will turn off all power output when
the chip temperature over 180℃, the chip will return to normal operation automatically after the temperature cool
down to 135℃.
FM Enhance
The LY8261 has a built-in FM enhance function and the pin should never be left floating. When FM radio
signal is poor. Enable (active to high) the FM enhance pin will improve the signal obviously. But enable the pin will
reduce LY8261 efficiency. Therefore recommend if FM enhance function is not to use. Disable (active to low) the
FM enhance pin is very important.
Mute Function
The mute pin is an input for controlling the output state of the LY8261. A logic high on this pin enables the outputs. A
logic low on this pin disables the outputs. This pin may be used as a quick disable/enable of outputs when
transitioning between different audio sources.
The mute pin should never be left floating. For power conservation, the Shutdown pin should be used to reduce the
quiescent current to the absolute minimum level.
Headphone Sense and headphone logic in functions
Applying a voltage between 4V and VDD to the LY8261’s HP-SENCE pin turns off the speaker, muting the a
bridged-connected load. Quiescent current consumption is reduced when the device is in this single-ended mode.
Figure 6 shows the implementation of the LY8261’s headphone control function. With no headphones connected to
the headphone jack, the R10 – R6(R5) voltage divider sets the voltage applied to the HP-SENCE pin at
approximately 50mV. This 50mV enables the speaker, placing the LY8261 in bridged mode operation.
