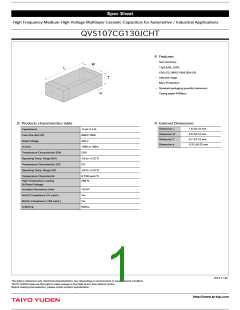

Spec Sheet
High Frequency Medium-High Voltage Multilayer Ceramic Capacitors for Automotive / Industrial Applications
QVS107CG130JCHT
Features
Item Summary
13pF±5%, 250V,
C0G/CG, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.10 mm
13 pF ± 5 %
0603/1608
250 V
0.8 ±0.10 mm
0.7 ±0.10 mm
0.35 ±0.25 mm
Case Size (EIA/JIS)
Rated Voltage
Q (min)
1060 at 1MHz
C0G
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (168 subst.)
Soldering
10 GΩ
Yes
Yes
Reflow
2016.11.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
