IWTX-4646BE-50

型号:

IWTX-4646BE-50

品牌:

VISHAY[ VISHAY ]

页数:

2 页

PDF大小:

75 K

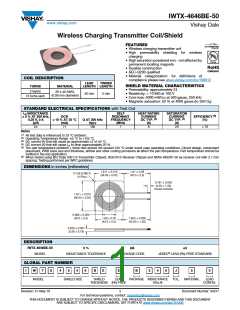

IWTX-4646BE-50
www.vishay.com
Vishay Dale
Wireless Charging Transmitter Coil/Shield
FEATURES
• Wireless charging transmitter coil
• High permeability shielding for wireless
charging
• High saturation powdered iron - not affected by
permanent locating magnets
• Durable construction
• AEC-Q200 qualified
• Material categorization: for definitions of
compliance please see www.vishay.com/doc?99912
COIL DESCRIPTION
LEAD
TINNED
SHIELD MATERIAL CHARACTERISTICS
• Permeability: approximately 24
• Resistivity: > 10 Mat 100 V
• Core loss: 4000 mW/cc at 500 gauss, 250 kHz
• Magnetic saturation: 50 % at 4000 gauss (to 350 Oe)
TURNS
2 layers
MATERIAL
LENGTH LENGTH
26 x 40 AWG,
40 mm
5 mm
(0.08 mm diameter)
10 turns each
STANDARD ELECTRICAL SPECIFICATIONS with Test Coil
L0 INDUCTANCE
5 ꢀ AT 200 kHz,
0.25 V, 0 A
SELF
RESONANT
FREQUENCY
(MHz)
HEAT RATING
CURRENT
DC TYP. (3)
(A)
SATURATION
CURRENT
DC TYP. (4)
(A)
DCR
10 ꢀ AT 25 °C
(m)
EFFICIENCY (6)
(ꢀ)
Q AT 200 kHz
(typ.)
(μH)
24
71
185
7
6
20
> 70
Notes
(1)
(2)
(3)
(4)
(5)
All test data is referenced to 25 °C ambient.
Operating Temperature Range -55 °C to +105 °C.
DC current (A) that will cause an approximate T of 40 °C.
DC current (A) that will cause L0 to drop approximately 20 %.
The part temperature (ambient + temp rise) should not exceed 105 °C under worst case operating conditions. Circuit design, component
placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application.
When tested using BQ Tesla 500110 Transmitter Chipset, BQ51013 Receiver Chipset and IWAS-4832FF-50 as receiver coil with 2.7 mm
spacing. Testing performed per WPC guidelines.
(6)
DIMENSIONS in inches [millimeters]
1.811 0.010
(46.00 0.25)
1.57 0.08
(40.0 2.0)
0.156 (3.96) R.
(4 Plcs.)
0.197 0.039
(5.00 1.00)
tinned nominal
1.811 0.010
(46.00 0.25)
0.866 0.020
(22.0 0.5)
1.69 0.02
(43.0 0.5)
1.654 0.039
(42.00 1.00)
0.200 0.007
(5.08 0.18)
DESCRIPTION
IWTX-4646BE-50
MODEL
5 ꢀ
INDUCTANCE TOLERANCE
EB
e3
JEDEC® LEAD (Pb)-FREE STANDARD
PACKAGE CODE
GLOBAL PART NUMBER
I
W
T
X
4
6
4
6
B
E
E
B
2
4
0
J
5
0
MODEL
SHIELD SIZE
SHIELD
THICKNESS (Pb)-FREE
LEAD
PACKAGE INDUCTANCE
VALUE
TOL. MATERIAL
LEAD
CONFIG.
Revision: 31-May-16
Document Number: 34377
1
