THE REVISION STATUS OF ALL SHEETS OF THIS DRAWING IS THE SAME AS SHEET 1
LTR
DESCRIPTION
DATE
3/25/96
7/8/04
BY
JCL
JCL
-
Released
A
Redrawn and Updated
I. MATERIALS & FINISHES
center contact: Gold Plated Beryllium Copper
outer contact: Nickel Plated Brass
body: Nickel Plated Brass
crimp sleeve: Nickel Plated Copper
dielectric: Teflon PTFE
gasket: Silicone Rubber
shrink sleeve: Adhesive Lined Polyolefin
attachment: braid crimp .429” hex
II. ELECTRICAL PROPERTIES
impedance: 50 ohms
working voltage: 1000 vrms (max)
vswr: 1.25:1 (max) up to 2 GHz
insertion loss: 0.15 x √Fghz
Unless otherwise spec-
ified, dimensions are in
inches. Tolerances are
applicable when spec-
ified.
Approvals
TIMES MICROWAVE SYSTEMS
Wallingford, CT 06492
(203) 949-8400; (203) 949-8423.Fax
www.timesmicrowave.com
Drawn
JCL 3/25/96
These drawings and
specifications contain
proprietary information
which is the property of
Times Microwave
Systems.

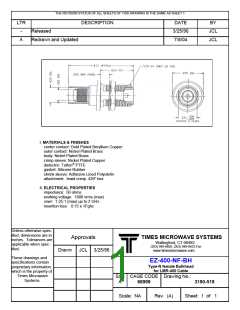

EZ-400-NF-BH
Type-N female Bulkhead
for LMR-400 Cable
Size CAGE CODE Drawing No.:
A
68999
3190-518
Scale: NA
Rev. (A)
Sheet: 1 of 1
