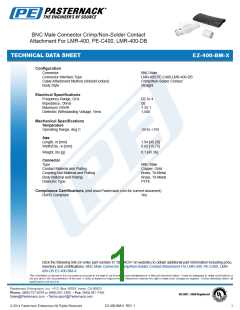

BNC Male Connector Crimp/Non-Solder Contact
Attachment For LMR-400, PE-C400, LMR-400-DB
TECHNICAL DATA SHEET
EZ-400-BM-X
Configuration
Connector
BNC Male
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
LMR-400,PE-C400,LMR-400-DB
Crimp/Non-Solder Contact
Straight
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
DC to 4
50
Maximum VSWR
Dielectric Withstanding Voltage, Vrms
1.35:1
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
-55 to +155
Size
Length, in [mm]
1.94 [49.28]
0.62 [15.75]
Width/Dia., in [mm]
.
Weight, lbs [g]
0.1 [45.36]
Connector
Type
BNC Male
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Copper, Gold
Brass, Tri-Metal
Brass, Tri-Metal
PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Non-Solder Contact Attachment For LMR-400, PE-C400, LMR-
400-DB EZ-400-BM-X
EZ-400-BM-X REV 1
