MICROWAVE SYSTEMS
TIMES

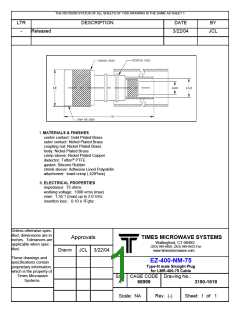

EZ-400-NM-75 (stock code: 3190-1618)
Type N PLUG
Non-solder center contact
Crimp-on (.429" hex. die) outer contact
INSTALLATION INSTRUCTIONS
(Cable Types: LMR-400-75)
SLIGHT CHAMFER
1. (A) Trim cable to dimensions shown.
(B) Remove any residual plastic from center
conductor.
3/16” (.180)
9/32”
(C) Deburr center conductor using a fine file or Times
DBT-01 tool.
5/8”(.590)
STEP 1
WEATHER SEAL
(D) Avoid nicking aluminum tape.
2. (A) Slide weather seal and crimp ferrule over cable.
CRIMP FERRULE (B) Flare braid and insert cable into connector body
until dielectric is seated with all braid wires on
outside of connector body and aluminum tape
inside connector body.
(C) Braid should assemble flush to within 1/16” (.06)
TRIM BRAID
STEP 2
of
connector shoulder. Trim excess if necessary.
3.
(A) Slide crimp ferrule over braid and crimp as
close to
body as possible using hex. die indicated in a
Times
HX-4 crimp tool or equivalent. Do not crimp rear
crimp ferrule.
STEP 3
of
