THE REVISION STATUS OF ALL SHEETS OF THIS DRAWING IS THE SAME AS SHEET 1
LTR
-
DESCRIPTION
DATE
BY
Released
2/21/01
JCL
I. MATERIALS & FINISHES
center contact: GoldPlated Beryllium Copper (spring fit ; non-solder)
outer contact: Nickel Plated Brass
coupling nut: Nickel Plated Brass
body: NickelPlated Brass
crimp sleeve: Nickel Plated Copper
dielectric: Teflon PTFE
gasket: Silicone Rubber
shrink sleeve: Adhesive Lined Polyolefin
crimp size: .255” hex
II. ELECTRICAL PROPERTIES
impedance: 50 ohms
working voltage: 500 vrms (max)
vswr: 1.25:1 (max) up to 6 GHz
insertion loss: 0.1 x √Fghz
Unless otherwise spec-
ified, dimensions are in
inches. Tolerances are
applicable when spec-
ified.
Approvals
TIMES MICROWAVE SYSTEMS
Wallingford, CT 06492
(203) 949-8400; (203) 949-8423.Fax
www.timesmicrowave.com
Drawn
JCL 2/21/01
These drawings and
specifications contain
proprietary information
which is the property of
Times Microwave
Systems.

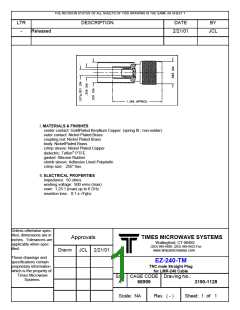

EZ-240-TM
TNC male Straight Plug
for LMR-240 Cable
Size CAGE CODE Drawing No.:
A
68999
3190-1128
Scale: NA
Rev. ( - )
Sheet: 1 of 1
