QVS107CG820JCHT

型号：

QVS107CG820JCHT

品牌：

TAIYO YUDEN[ TAIYO YUDEN (U.S.A.), INC ]

页数：

2 页

PDF大小：

283 K

下载PDF手册
PrintPDF

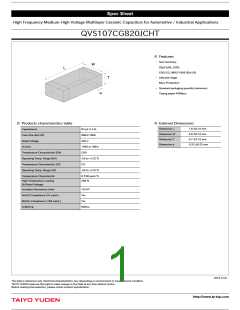

Spec Sheet
High Frequency Medium-High Voltage Multilayer Ceramic Capacitors for Automotive / Industrial Applications
QVS107CG820JCHT
Features
Item Summary
82pF±5%, 250V,
C0G/CG, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.10 mm
82 pF ± 5 %
0603/1608
250 V
0.8 ±0.10 mm
0.7 ±0.10 mm
0.35 ±0.25 mm
Case Size (EIA/JIS)
Rated Voltage
Q (min)
1400 at 1MHz
C0G
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (168 subst.)
Soldering
10 GΩ
Yes
Yes
Reflow
2016.12.01
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Multi Layer Ceramic Capacitor -Electrical Characteristics Data-
16CUD02
RoHS compliance product
○QVS107CG820JCHT
250V 1608 CG/C0G 82pF +/- 5% t=0.8mmMAX
250V 0603 CG/C0G 82pF +/- 5% t=0.031inchMAX
QVS107CG820JCHT
QVS107CG820JCHT
Capacitance Freq.
DC Bias Char.
10
100000
10000
1000
100
5
0
-5
10
-10
500
700
900
1100 1300 1500
0
50
100
150
200
250
Frequency[MHz]
DC Bias Voltage[V]
QVS107CG820JCHT
Capacitance Temp.
QVS107CG820JCHT
Impedance,ESR Freq.
10
5
1000
100
10
ESR
Z
0
1
0.1
-5
0.01
0.001
-10
-55 -35 -15
5
25 45 65 85 105 125
500
700
900
1100
1300
1500
Temperature[degreeC]
Frequency[MHz]
部品特性は設置環境、測定条件等により変化する場合があります。本データをご使用される際は実際の製品特性に対する参考
データとしてご活用ください。また、本データは予告無く追加･削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
