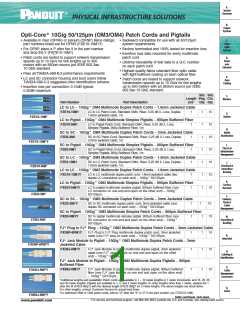

Opti-Core® 10Gig 50/125µm (OM3/OM4) Patch Cords and Pigtails
• Available in riser (OFNR) or plenum (OFNP) flame ratings; • Backward compatible for use with all 50/125µm
C.
Fiber
Optic
Systems
part numbers listed are for OFNR (FXE10-10M1Y)
system requirements
• For OFNP, place a P after the X in the part number
and drop the Y (FXPE10-10M1)
• Factory terminated and 100% tested for insertion loss
• Insertion loss data recorded for every multimode
patch cord
• Patch cords are tested to support network transmission
speeds up to 10 Gb/s for link lengths up to 300
meters with an 850nm source per IEEE 802.3ae
10 GbE standard
D.
Power
over
Ethernet
• Lifetime traceability of test data to a Q.C. number
on each patch cord
• Highest quality flame retardant fiber optic cable
with tight-buffered coating on each optical fiber
• Pass all TIA/EIA-568-B.3 performance requirements
E.
Zone
Cabling
• LC and SC connector housing and boot colors follow
TIA/EIA-568-C.3 suggested color identification scheme
•
Patch cords are tested to support network
transmission speeds up to 10 Gb/s for link lengths
up to 550 meters with an 850nm source per IEEE
802.3ae 10 GbE standard
• Insertion loss per connection: 0.10dB typical;
0.30dB maximum
Std. Std.
Length Pkg. Ctn.
(m)^ Qty. Qty.
F.
Wireless
Part Number
Part Description
LC to LC – 10Gig™ OM4 Multimode Duplex Patch Cords – 1.6mm Jacketed Cable
FZE10-10M1
LC to LC Patch Cord, Standard OM4, Riser, 0.25 dB IL Loss, Duplex,
1.6mm jacketed cable, 1m
1
1
1
1
1
1
1
1
10
10
10
10
10
10
10
G.
Outlets
FZE10-10M*
FXF10-10M*Y
FZB10-NM*
LC to Pigtail – 10Gig™ OM4 Multimode Simplex Pigtails – 900µm Buffered Fiber
FZB10-NM1
LC to Pigtail Patch Cord, Standard OM4, Riser, 0.25 dB IL Loss,
Simplex Pigtails, 900µ Buffered Fiber, 1m
1
H.
Media
Distribution
SC to SC – 10Gig™ OM4 Multimode Duplex Patch Cords – 3mm Jacketed Cable
FZD3-3M1
SC to SC Patch Cord, Standard OM4, Riser, 0.25 dB IL Loss, Duplex,
3.0mm jacketed cable, 1m
1
SC to Pigtail – 10Gig™ OM4 Multimode Simplex Pigtails – 900µm Buffered Fiber
I.
Physical
Infrastructure
Management
FZB3-NM1
SC to Pigtail Patch Cord, Standard OM4, Riser, 0.25 dB IL Loss,
Simplex Pigtails, 900µ Buffered Fiber, 1m
1
SC to LC – 10Gig™ OM4 Multimode Duplex Patch Cords – 1.6mm Jacketed Cable
FZE3-10M1
SC to LC Patch Cord, Standard OM4, Riser, 0.25 dB IL Loss, Duplex,
1.6mm jacketed cable, 1m
1
J.
Overhead &
Underfloor
Routing
LC to LC – 10Gig™ OM3 Multimode Duplex Patch Cords – 1.6mm Jacketed Cable
FXE10-10M1Y
LC to LC multimode duplex patch cord, 1.6mm jacketed cable (two
duplex LC connectors on each end) – 10Gig™ 50/125µm.
1
K.
LC to Pigtail – 10Gig™ OM3 Multimode Simplex Pigtails – 900µm Buffered Fiber
Surface
Raceway
FXB10-NM1Y
LC to pigtail multimode simplex pigtail, 900µm buffered fiber (one
LC connector on one end and open on the other end) – 10Gig™
50/125µm.
1
FZD3-3M*
L.
SC to SC – 10Gig™ OM3 Multimode Duplex Patch Cords – 3mm Jacketed Cable
Cabinets,
Racks &
Cable
FXD3-3M1Y
SC to SC multimode duplex patch cord, 3mm jacketed cable (one
duplex SC connector on each end) – 10Gig™ 50/125µm.
1
1
10
Management
SC to Pigtail – 10Gig™ OM3 Multimode Simplex Patch Cords – 900µm Buffered Fiber
FXB3-NM1Y
SC to pigtail multimode simplex pigtail, 900µm buffered fiber (one
SC connector on one end and open on the other end) – 10Gig™
50/125µm.
1
1
10
M.
Grounding &
Bonding
FZB3-NM*
FXD6P-6PM*Y
FXD6J-NM*Y
FJ® Plug to FJ® Plug – 10Gig™ OM3 Multimode Duplex Patch Cords – 3mm Jacketed Cable
FXD6P-6PM1Y
FJ® Plug to FJ® Plug multimode duplex patch cord, 3mm jacketed
1
1
1
10
10
cable (one FJ® plug on each end) – 10Gig™ 50/125µm.
N.
Industrial
FJ® Jack Module to Pigtail – 10Gig™ OM3 Multimode Duplex Patch Cords – 3mm
Jacketed Cable
FXD6J-NM1Y
FJ® Jack Module to pigtail multimode duplex pigtail, 3mm jacketed
cable (one FJ® Jack Module on one end and open on the other
end) – 10Gig™ 50/125µm.
1
O.
Labeling &
Identification
FJ® Jack Module to Pigtail – 10Gig™ OM3 Multimode Duplex Pigtails – 900µm
Buffered Fiber
P.
Cable
Management
Accessories
FXB6J-NM1Y
FJ® Jack Module to pigtail multimode duplex pigtail, 900µm buffered
fiber (one FJ® Jack Module on one end and open on the other end)
– 10Gig™ 50/125µm.
1
1
10
^Additional lengths and availability: Patch cords are available in 1 – 10 meter lengths in 1 meter increments, and 15, 20, 25
and 30 meter lengths. Pigtails are available in 1, 2, and 3 meter lengths. To order lengths other than 1 meter, replace the 1
after the M (FXD3-3M1Y) with the desired length (FXD3-3M2Y for 2 meter length). The above lengths are stock items.
For other lengths, contact Customer Service for actual lead times.
Q.
Index
For optimized OM3 or OM4 patch cords, add an “O” after the “X” or “Z” in the part number. (ex: FZOE10-10M)
FXB6J-NM*Y
Table continues next page
