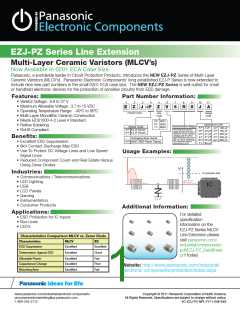

EZJ-PZ Series Line Extension
Multi-Layer Ceramic Varistors (MLCV’s)
Now Available In 0201 ECA Case Size
Panasonic, a worldwide leader in Circuit Protection Products, introduces the NEW EZJ-PZ Series of Multi-Layer
Ceramic Varistors (MLCV’s). Panasonic Electronic Components’ long established EZJ-P Series is now extended to
include nine new part numbers in the small 0201 ECA case size. The NEW EZJ-PZ Series is well suited for small
or handheld electronic devices for the protection of sensitive circuitry from ESD damage.
Features:
Part Number Information:
• Varistor Voltage: 6.8 to 27 V
• Maximum Allowable Voltage: 3.7 to 15 VDC
• Operating Temperature Range: -40ºC to 85ºC
• Multi-Layer Monolithic Ceramic Construction
• Meets EIC61000-4-2 Level 4 Standard
• Reflow Soldering
1
2
3
4
5
6
7
8
9
10
11
E Z J P Z V 6 R 8 J
A
Design
Code
Product Code
Size
Code
Z 0201
0 0402
1 0603
Capacitance Code
Nominal Varistor Voltage
Series Code
Z EZJZ Series
P EZJP Series
A 3 pF
G 100 pF
H 150 pF
J 220 pF
K 330 pF
M 680 pF
The first and second
digits denote the first 2
numbers of the varistor
voltage and the third
digit indicates the num-
ber of zereos following.
The decimal point is
denoted by an R.
• RoHS Compliant
R 20 pF
D 27 pF
E 47 pF
W 56 pF
F 68 pF
Benefits:
Packaging Style Guide
V 0402, 0603 Paper Taping
• Excellent ESD Suppression
• 8kV Contact Discharge Max ESD
• Use To Protect DC Voltage Lines and Low Speed
Signal Lines
Usage Examples:
• Reduced Component Count and Real Estate Versus
Using Zener Diodes
Industries:
• Communications / Telecommunications
• LED Lighting
• USB
• LCD Panels
• Gaming
• Instrumentation
• Consumer Products
Additional Information:
Applications:
• ESD Protection for IC Inputs
• Bus Lines
For detailed
specification
information on the
• LED’s
EZJ-PZ Series MLCV
Line Extension please
visit panasonic.com/
industrial/components/
pdf/EZJ-PZ_DataSheet.
pdf today!
Characteristics Comparison MLCV vs. Zener Diode
Characteristics
MLCV
ZD
ESD Suppression
Excellent
Excellent
Deterioration Against ESD
Excellent
Good
Allowable Power
Capacitance Change
Mounting Area
Excellent
Excellent
Excellent
Fair
Poor
Fair
Website: http://www.panasonic.com/industrial/
electronic-components/protection/index.aspx
www.panasonic.com/industrial/electronic-components
piccomponentsmarketing@us.panasonic.com
1-800-344-2112
Copyright © 2011 Panasonic Corporation of North America.
All Rights Reserved. Specifications are subject to change without notice.
EC-EZJ-PZ-NPI, FY11-048-XXX
