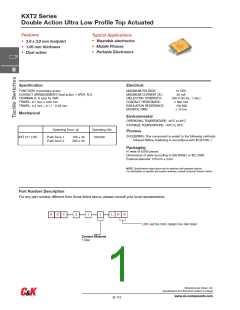

KXT2 Series
Double Action Ultra Low Profile Top Actuated
Features
Typical Applications
•
•
•
Wearable electronics
Mobile Phones
•
•
•
3.9 x 3.0 mm footprint
1.05 mm thickness
Dual action
Portable Electronics
B
Specification
Electrical
FUNCTION: momentary action
CONTACT ARRANGEMENT: Dual action = SPDT, N.O.
TERMINALS: G type for SMT
TRAVEL: 0.1 mm 0.05 mm
TRAVEL: 0.2 mm + 0.1 / - 0.05 mm
MAXIMUM VOLTAGE:
MAXIMUM CURRENT DC:
DIELECTRIC STRENGTH:
CONTACT RESISTANCE:
INSULATION RESISTANCE:
BOUNCE TIME:
12 VDC
50 mA
250 V (50 Hz, 1 min.)
≤ 500 mΩ
100 MΩ
≤ 10 ms
Mechanical
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C
STORAGE TEMPERATURE: -40˚C to 85˚C
Operating force gf
Operating Life
100,000
Process
SOLDERING: This component is suited to the following methods:
Infrared Reflow Soldering in accordance with IEC61760-1
KXT 211 LHS
Push force 1
Push force 2
100 40
200 50
Packaging
In reels of 6,000 pieces
Dimensions of reels according to EIA RS481 or IEC 2863
External diameter 178 mm 2mm
NOTE: Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Part Number Description
For any part number different from those listed above, please consult your local representative.
L
H
S
K
X
T
2
1
1
LHS Lead free, RoHS, Halogen Free, Silver plated
Contact Material
1 Silver
Dimensions are shown: mm
Specifications and dimensions subject to change
www.ck-components.com
B–112
