CERAMIC CAPACITORS

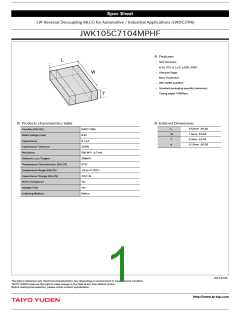

Spec Sheet
LW Reversal Decoupling MLCC for Automotive / Industrial Applications (LWDC(TM))
JWK105C7104MPHF
Features
Item Summary
6.3V, X7S, 0.1μF, ±20%, 0402
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
CaseSize (EIA/JIS)
External Dimensions
L
0.52mm ±0.05
1.0mm ±0.05
0.3mm ±0.05
0.18mm ±0.08
0402/1005
6.3V
W
T
e
Rated Voltage (max)
Capacitance
0.1μF
Capacitance Tolerance
Resistance
±20%
500 MΩ・μF min.
5%MAX
X7S/-
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
-55 to +125℃/-
±22/-%
Yes
Halogen Free
Yes
Soldering Method
Reflow
2015.02.05
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
