1SS110

型号：

1SS110

描述：

硅外延平面二极管的调谐器波段开关[ Silicon Epitaxial Planar Diode for Tuner Band Switch ]

品牌：

HITACHI[ HITACHI SEMICONDUCTOR ]

页数：

5 页

PDF大小：

20 K

下载PDF手册
1SS110

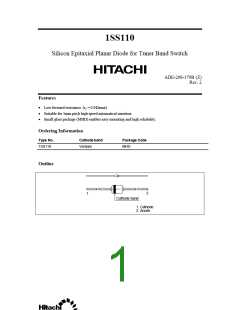

Silicon Epitaxial Planar Diode for Tuner Band Switch
ADE-208-179B (Z)
Rev. 2
Features
•
•
•
Low forward resistance. (rf = 0.9Ωmax)
Suitable for 5mm pitch high speed automatical insertion.
Small glass package (MHD) enables easy mounting and high reliability.
Ordering Information
Type No.
Cathode band
Package Code
1SS110
Verdure
MHD
Outline
2
1
Cathode band
1. Cathode
2. Anode
1SS110
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Value
35
Unit
V
Reverse voltage
Forward current
Junction temperature
Storage temperature
VR
IF
100
mA
°C
Tj
175
Tstg
–65 to +175
°C
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
Typ
—
Max
Unit
V
Test Condition
IF = 10mA
Forward voltage
Reverse voltage
Reverse current
Capacitance
VF
VR
IR
C
—
35
—
—
—
1.0
—
—
V
IR = 10µA
—
0.1
1.2
0.9
µA
pF
Ω
VR = 25V
—
VR = 6V, f = 1MHz
Forward resistance
rf
—
IF = 2mA, f = 100MHz
1SS110
10–2
10–4
10–6
10–8
10–10
10–12
0.6
0.8
0
0.2
0.4
1.0
Forward voltage VF (V)
Fig.1 Forward current Vs. Forward voltage
10
f = 1MHz
1.0
10–1
10
1.0
40
Reverse voltage VR (V)
Fig.2 Capacitance Vs. Reverse voltage
1SS110
102
10
f = 100MHz
1.0
10–1
–2
10
10–2
Forward current IF (A)
10–3
10–1
10–4
Fig.3 Forward resistance Vs. Forward current
1SS110
Package Dimensions
Unit: mm
26.0 Min
26.0 Min
2.4 Max
1
2
1 Cathode
2 Anode
Cathode band (Verdure)
HITACHI Code
JEDEC Code
EIAJ Code
MHD
DO-34
—
Weight (g)
0.084
