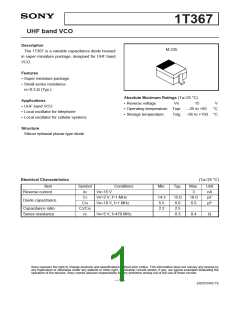

1T367
UHF band VCO
Description
M-235
The 1T367 is a variable capacitance diode housed
in super miniature package, designed for UHF band
VCO.
Features
• Super miniature package
• Small series resistance
rs=0.3 Ω (Typ.)
Absolute Maximum Ratings (Ta=25 °C)
Applications
• Reverse voltage
• Operating temperature Topr
• Storage temperature
VR
15
V
• UHF band VCO
–35 to +85
°C
• Local oscillator for telephone
• Local oscillator for cellular systems
Tstg –65 to +150 °C
Structure
Silicon epitaxial planar type diode
Electrical Characteristics
(Ta=25 °C)
Item
Symbol
IR
Conditions
Min.
Typ.
Max.
3
Unit
nA
pF
Reverse current
VR=15 V
C2
VR=2 V, f=1 MHz
VR=10 V, f=1 MHz
14.3
5.5
15.0
6.0
2.5
0.3
16.0
6.5
Diode capacitance
C10
pF
Capacitance ratio
Series resistance
C2/C10
rs
2.2
VR=5 V, f=470 MHz
0.4
Ω
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
