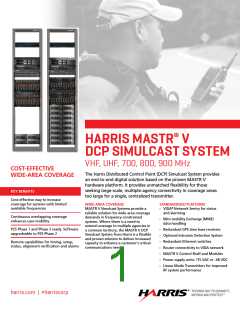

HARRIS MASTR^®V

DCP SIMULCAST SYSTEM

VHF, UHF, 700, 800, 900 MHz

COST-EFFECTIVE

WIDE-AREA COVERAGE

The Harris Distributed Control Point (DCP) Simulcast System provides

an end-to-end digital solution based on the proven MASTR V

hardware platform. It provides unmatched ﬂexibility for those

seeking large-scale, multiple-agency connectivity in coverage areas

too large for a single, centralized transmitter.

KEY BENEFITS

Cost-effective way to increase

coverage for systems with limited

available frequencies

WIDE-AREA COVERAGE

STANDARDIZED PLATFORM

• VIDA^®Network Sentry for status

and alarming

MASTR V Simulcast Systems provide a

reliable solution for wide-area coverage

demands in frequency-constrained

systems. Where there is a need to

extend coverage to multiple agencies in

a common territory, the MASTR V DCP

Simulcast System from Harris is a ﬂexible

and proven solution to deliver increased

capacity to enhance a customer’s critical-

communications needs.

Continuous overlapping coverage

enhances user-mobility

• Mini-mobility Exchange (MME)

data handling

P25 Phase 1 and Phase 2 ready. Software

upgradeable to P25 Phase 2

• Redundant GPS time base receivers

• Optional Intrusion Detection System

• Redundant Ethernet switches

Remote capabilities for timing, setup,

status, alignment veriﬁcation and alarms

• Router connectivity to VIDA network

• MASTR V Control Shelf and Modules

• Power supply units: 115 VAC or -48 VDC

• Linear Mode Transmitters for improved

RF system performance

harris.com | #harriscorp

PROVEN MASTR V PLATFORM

GENERAL

Size (Base Station)

Open Rack Dimensions

Cabinet Dimensions

Power

4 channels per 5 Rack Unit Shelf

86.0 H x 20.5 W x 19.295 D in (218 H x 52 W x 49 D cm)

86.0 H x 23.0 W x 31.5 D in (218 H x 58 W x 80 D cm)

90-230 VAC or -48 VDC

Ambient Temperature Range

Humidity

-22° F to +140° F (-30° C to +60° C)

90% @ 122° F (+50° C)

Operational: Up to 15,000 ft (4,572 m)

Shippable: Up to 50,000 ft (15, 240 m)

Altitude

TRANSMITTER

VHF

UHF

700

800

900

380-400

403-430

450-470

470-494

494-520

Frequency Range (MHz)

150-174

764-776

851-870

935-941

Rated Power Output (W)

RF Output Impedance (ohm)

100

Conducted Spurious and

Harmonic Emissions (dBc)

<-86

<-70

Frequency Stability (ppm)

Channel Spacing (kHz)

Synthesizer Step Size (kHz)

<0.1

12.5

1.25

<0.1

12.5

1.25

<0.1

12.5

6.25

<0.1

12.5

6.25

<0.1

12.5

6.25

RECEIVER

VHF

UHF

700

800

900

380-400

403-430

450-470

470-494

494-520

Frequency Range (MHz)

150-174

799-817

806-824

896-902

Sensitivity, TIA-P25 (dBm)

RF Output Impedance (ohm)

<-118

<-119

Intermodulation Rejection,

TIA-P25 (dB)

>80

Spurious and Image Rejection (dB)

Frequency Stability (ppm)

Channel Spacing (kHz)

≥90

<0.1

12.5

1.25

≥90

<0.1

12.5

1.25

≥90

<0.1

12.5

6.25

≥90

<0.1

12.5

6.25

≥90

<0.1

12.5

6.25

Synthesizer Step Size (kHz)

OPERATIONAL MODES

Mode

Modulation

Emission Designator

P25 Phase 1

P25 Linear Simulcast

P25 Phase 2

C4FM

WCQPSK

HDQPSK

8K00F2D/8K00F1E*

9K70D1W

9K80D7W

REGULATORY DATA

Industry

Power Output

FCC Type

Acceptance

Number

Applicable

Industry

Canada Rules

NTIA

Certification

Number

Frequency

(Adjustable)

Range (MHz)

(W)

Applicable FCC Canada

Rules

Certification

Number

150-174

380-400

406.1-420

420-430

450-470

470-494

494-512

764-776

851-869

935-940**

10-100

OWDTR-0065-E

OWDTR-0129-E

OWDTR-0130-E

OWDTR-0100-E

OWDTR-0101-E

OWDTR-0057-E

OWDTR-0053-E

OWDTR-0156-E

22, 80, 90

3636B-0065

3636B-0129

3636B-0130

RSS-119

J/F 12/09628

22, 80, 90

About Harris Corporation

3636B-0057

3636B-0053

3636B-0156

RSS-119

Harris Corporation is a leading technology

innovator, solving customers’ toughest

mission-critical challenges by providing

solutions that connect, inform and protect.

Harris supports government and commercial

customers around the world.

*VHF, 420-430, 450-470, 935-940

**Pending regulatory approval

Learn more at harris.com.

FLORIDA

NEW YORK

VIRGINIA

BRAZIL

UNITED KINGDOM

UAE

SINGAPORE

Non-Export Controlled Information

Harris, MASTR, and VIDA are registered trademarks of Harris Corporation.

Trademarks and tradenames are the property of their respective companies.
