QPQ1214EVB

型号：

QPQ1214EVB

品牌：

QORVO[ Qorvo ]

页数：

16 页

PDF大小：

780 K

下载PDF手册

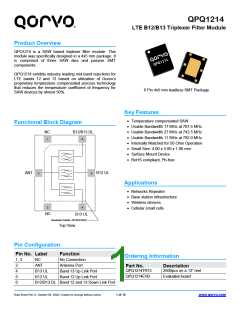

QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Product Overview
QPQ1214 is a SAW based triplexer filter module. This
module was specifically designed in a 4x5 mm package. It
is comprised of three SAW dies and passive SMT
components.
QPQ1214 exhibits industry leading mid-band rejections for
LTE bands 12 and 13 based on utilization of Qorvo’s
proprietary temperature compensated process technology
that reduces the temperature coefficient of frequency for
SAW devices by almost 50%.
6 Pin 4x5 mm leadless SMT Package
Key Features
• Temperature compensated SAW
• Usable Bandwidth 17 MHz at 707.5 MHz
• Usable Bandwidth 27 MHz at 742.5 MHz
• Usable Bandwidth 11 MHz at 782.0 MHz
• Internally Matched for 50 Ohm Operation
• Small Size: 4.00 x 5.00 x 1.06 mm
• Surface Mount Device
Functional Block Diagram
B12/B13 DL
NC
1
6
• RoHS compliant, Pb-free
ANT
B12 UL
2
5
Applications
• Networks Repeater
• Base station infrastructure
• Wireless devices
3
4
• Cellular small cells
NC
B13 UL
Backside Paddle -RF/DC(GND)
Top View
Pin Configuration
Pin No. Label
Function
No Connection
Ordering Information
1, 3
NC
2
ANT
Antenna Port
Part No.
Description
QPQ1214TR13
2500pcs on a 13” reel
4
B13 UL
B12 UL
Band 13 Up Link Port
Band 12 Up Link Port
QPQ1214EVB
Evaluation board
5
6
B12/B13 DL Band 12 and 13 Down Link Port
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
1 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Absolute Maximum Ratings
Minimum Lifetime Ratings
Parameter
Storage Temperature
Rating
-40 to 85°C
+25 to 70°C
Conditions
Rating
10,000 Hrs
10,000 Hrs
10,000 Hrs
RF Input Power (¹) (B13UL), Pin 4
RF Input Power (¹) (B12UL), Pin 5
RF Input Power (¹) (B12/B13DL), Pin 6
Operation Temperature
Exceeding any one or a combination of the Absolute Maximum
Rating conditions may cause permanent damage to the device.
Extended application of Absolute Maximum Rating conditions to
the device may reduce device reliability.
( )
¹ Input Power: CW, 30 dBm, @ +55ꢀ°C
Electrical Specifications (1) (2) (3) – B12 UL (699-716MHz) BPF
Operating Temperature Range: +25 to +70°C.
(4)
Parameter
Conditions
Min
Typ.
Max
Units
MHz
dB
Center Frequency [fo]
707.5
Insertion Loss
Amplitude Variation (1)
699 MHz – 716 MHz
699 MHz – 716 MHz
10 MHz – 500 MHz
722.5 MHz – 729 MHz (6)
729 MHz – 787 MHz
787 MHz – 894 MHz
1400 MHz – 2155 MHz
699 MHz – 716 MHz
-
-
-
3.0
1.0
35
1.5
dB
30
18
38
30
30
10
-
-
-
-
-
-
-
-
-
dB
22
dB
Absolute Attenuation (5)
43
dB
35
dB
37
dB
Input / Output Return Loss
Temperature Coefficient
Load/Source Impedance
13
dB
-25
50
ppm/ºC
Ω
-
Notes:
1. All specifications are based on the Qorvo schematic shown on page 10.
2. In production, devices will be tested at room temperature to a guard banded specification to ensure compliance over
temperature.
3. Electrical margin has been built into the design to account for variations due to temperature drift and manufacturing tolerances.
4. Typical values are based on average measurements at room temperature.
5. Attenuation is referenced to ZERO dB
6. Describes the absolute attenuation over the defined frequency range at +25°C only
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
2 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Electrical Specifications (1) (2) (3) – B12/B13 DL (729-756MHz) BPF
Operating Temperature Range: +25 to +70°C.
(4)
Parameter
Conditions
Min
Typ.
742.5
-
Max
Units
MHz
dB
Center Frequency [fo]
Insertion Loss
729 MHz – 756 MHz
729 MHz – 756 MHz
10 MHz – 699 MHz
-
-
3.0
Amplitude Variation
1.0
35
1.5
dB
30
35
18
20
35
25
30
35
10
-
-
-
-
-
-
-
-
-
-
-
-
dB
699 MHz – 716 MHz
716 MHz – 722.5 MHz (6)
766.5 MHz – 777 MHz (6)
777 MHz – 787 MHz
824 MHz – 894 MHz
1400 MHz – 2155 MHz
2184 MHz – 2271 MHz
729 MHz – 756 MHz
39
dB
22
dB
30
dB
Absolute Attenuation (5)
40
dB
30
dB
42
dB
47
dB
Input / Output Return Loss
Temperature Coefficient
Load/Source Impedance
13
dB
-25
50
ppm/ºC
Ω
-
Notes:
1. All specifications are based on the Qorvo schematic shown on page 10.
2. In production, devices will be tested at room temperature to a guard banded specification to ensure compliance over
temperature.
3. Electrical margin has been built into the design to account for variations due to temperature drift and manufacturing tolerances.
4. Typical values are based on average measurements at room temperature.
5. Attenuation is referenced to ZERO dB
6. Describes the absolute attenuation over the defined frequency range at +25°C only
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
3 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Electrical Specifications (1) (2) (3) – B13UL (777-787MHz) BPF
Operating Temperature Range: +25 to +70°C.
(4)
Parameter
Center Frequency [fo]
Conditions
Min
Typ.
Max
Units
MHz
dB
782.0
Insertion Loss
777 MHz – 787 MHz
777 MHz – 787 MHz
10 MHz – 500 MHz
-
-
-
3.0
Amplitude Variation
0.5
40
42
34
40
39
30
13
-25
50
0.9
dB
35
38
20
35
35
25
10
-
-
-
-
-
-
-
-
-
-
dB
699 MHz – 756 MHz
756 MHz – 766.5 MHz (6)
817 MHz – 894 MHz
1400 MHz – 1600 MHz
1600 MHz – 2155 MHz
777 MHz – 787 MHz
dB
dB
Absolute Attenuation (5)
dB
dB
dB
Input / Output Return Loss
Temperature Coefficient
Load/Source Impedance
dB
ppm/ºC
Ω
-
Notes:
1. All specifications are based on the Qorvo schematic shown on page 10.
2. In production, devices will be tested at room temperature to a guard banded specification to ensure compliance over
temperature.
3. Electrical margin has been built into the design to account for variations due to temperature drift and manufacturing tolerances.
4. Typical values are based on average measurements at room temperature.
5. Attenuation is referenced to ZERO dB
6. Describes the absolute attenuation over the defined frequency range at +25°C only
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
4 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Electrical Specifications (1) (2) (3) – Output Isolation
Operating Temperature Range: +25 to +70°C.
(4)
Parameter
Conditions
Min
42
43
43
40
45
40
40
42
39
38
50
45
45
45
45
Typ.
44
45
45
43
50
45
45
45
42
41
54
48
48
48
48
Max
Units
699 MHz – 716 MHz
716 MHz – 729 MHz
729 MHz – 756 MHz
756 MHz – 777 MHz
777 MHz – 787 MHz
699 MHz – 716 MHz
716 MHz – 729 MHz
729 MHz – 756 MHz
756 MHz – 777 MHz
777 MHz – 787 MHz
699 MHz – 716 MHz
716 MHz – 729 MHz
729 MHz – 756 MHz
756 MHz – 777 MHz
777 MHz – 787 MHz
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
B12UL - B12/B13 DL
dB
B12UL – B13UL
dB
dB
B12/B13 DL – B13UL
Notes:
1. All specifications are based on the Qorvo schematic shown on page 10.
2. In production, devices will be tested at room temperature to a guard banded specification to ensure compliance over
temperature.
3. Electrical margin has been built into the design to account for variations due to temperature drift and manufacturing tolerances.
4. Typical values are based on average measurements at room temperature.
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
5 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
6 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
7 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
8 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
9 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
QPQ1214-PCB Evaluation Board
Note: Blocking capacitors are required on any ports where a DC voltage may be present.
Bill of material - QPQ1214EVB
Reference Des.
Value Description
Manuf. Part Number
U1
-
-
-
Band 12/13 Triplexer High Power
Qorvo
Various
Various
QPQ1214
PCB
Printed Circuit Board
J1, J2, J3, J4
SMA Edge Connector
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
10 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Package Marking and Dimensions
Marking:
4-digit Part number: 1214
4-digit Trace code: YYYY
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Dimension and tolerance formats conform to ASME Y14.4M-1994.
3. The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012.
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
11 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
PCB Mounting Pattern
Notes:
1. All dimensions are in millimeters.
2. This drawing specifies the mounting pattern used on the Qorvo evaluation board for this product. Some modification may be
necessary to suit end user assembly materials and processes
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
12 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Tape and Reel Information – Carrier and Cover Tape Dimensions
Feature
Measure
Symbol
Size (in)
0.169
0.209
0.051
0.315
0.079
0.217
0.362
0.472
Size (mm)
4.30
Length
A0
B0
K0
P1
P2
F
Width
5.30
Cavity
Depth
1.30
Pitch
8.00
Cavity to Perforation - Length Direction
2.00
Centerline Distance
Cavity to Perforation - Width Direction
5.50
Cover Tape
Carrier Tape
Width
Width
C
9.20
W
12.00
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
13 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Tape and Reel Information – Reel Dimensions (13”)
Standard T/R size = 2,500 pieces on a 13” reel.
Feature
Measure
Symbol
Size (in)
12.992
0.717
Size (mm)
330.0
18.2
Diameter
A
W2
W1
N
Flange
Thickness
Space Between Flange
Outer Diameter
Arbor Hole Diameter
Key Slit Width
Key Slit Diameter
0.504
12.8
4.016
102.0
13.0
C
0.512
Hub
B
0.079
2.0
D
0.787
20.0
Tape and Reel Information – Tape Length and Label Placement
Notes:
1. Empty part cavities at the trailing and leading ends are sealed with cover tape. See EIA 481-1-A.
2. Labels are placed on the flange opposite the sprockets in the carrier tape.
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
14 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Assembly Notes
1. Compatible with both Lead-free solder (260°C peak reflow temperature) and tin/lead (245°C peak reflow temp.)
soldering processes.
2. Contact plating: Ni-Pd-Au.
Recommended Soldering Temperature Profile
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
15 of 16
www.qorvo.com
QPQ1214
LTE B12/B13 Triplexer Filter Module
®
Handling Precautions
Parameter
Rating
Standard
ESDꢁ–ꢁHuman Body Model (HBM)
Class 2
ESDAꢀ/ꢀJEDEC JS-001-2012
ESDAꢀ/ꢀJESD22-C101
Caution!
ESD-Sensitive Device
ESDꢁ–ꢁCharged Device Model (CDM) Class C3
MSLꢁ–ꢁMoisture Sensitivity Level
Level 3
IPC/JEDEC J-STD-020
RoHS Compliance
This part is compliant with 2011/65/EU RoHS directive (Restrictions on the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment) as amended by Directive 2015/863/EU.
This product also has the following attributes:
• Lead Free
• Halogen Free (Chlorine, Bromine)
• Antimony Free
• TBBP-A (C15H12Br402) Free
• SVHC Free
Pb
Contact Information
For the latest specifications, additional product information, worldwide sales and distribution locations:
Web: www.qorvo.com
Tel: 1-844-890-8163
Email: customer.support@qorvo.com
Important Notice
The information contained herein is believed to be reliable; however, Qorvo makes no warranties regarding the information contained
herein and assumes no responsibility or liability whatsoever for the use of the information contained herein. All information contained
herein is subject to change without notice. Customers should obtain and verify the latest relevant information before placing orders for
Qorvo products. The information contained herein or any use of such information does not grant, explicitly or implicitly, to any party any
patent rights, licenses, or any other intellectual property rights, whether with regard to such information itself or anything described by
such information. THIS INFORMATION DOES NOT CONSTITUTE A WARRANTY WITH RESPECT TO THE PRODUCTS
DESCRIBED HEREIN, AND QORVO HEREBY DISCLAIMS ANY AND ALL WARRANTIES WITH RESPECT TO SUCH PRODUCTS
WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR
OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Without limiting the generality of the foregoing, Qorvo products are not warranted or authorized for use as critical components in
medical, life-saving, or life-sustaining applications, or other applications where a failure would reasonably be expected to cause severe
personal injury or death.
Copyright 2020 © Qorvo, Inc. | Qorvo is a registered trademark of Qorvo, Inc.
Data Sheet Rev C, October 05, 2020 | Subject to change without notice
16 of 16
www.qorvo.com
厂商 型号 描述 页数 下载

QORVO

 		QPQ1029 [ Band 1 and Band 3 Dual Filter ] 16 页

QORVO

 		QPQ1029EVB [ Band 1 and Band 3 Dual Filter ] 16 页

QORVO

 		QPQ1029TR7 [ Band 1 and Band 3 Dual Filter ] 16 页

QORVO

 		QPQ1031Q [ Band 1/3 Multiplexer ] 18 页

QORVO

 		QPQ1031QEVB [ Band 1/3 Multiplexer ] 18 页

QORVO

 		QPQ1031QPCK [ Band 1/3 Multiplexer ] 18 页

QORVO

 		QPQ1031QSR [ Band 1/3 Multiplexer ] 18 页

QORVO

 		QPQ1031QTR13 [ Band 1/3 Multiplexer ] 18 页

QORVO

 		QPQ1060 [ L1 Low Loss GPS SAW Filter ] 7 页

QORVO

 		QPQ1060EVB [ L1 Low Loss GPS SAW Filter ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.252721s
