XTR105TDC1

型号:

XTR105TDC1

品牌:

TI[ TEXAS INSTRUMENTS ]

页数:

5 页

PDF大小:

110 K

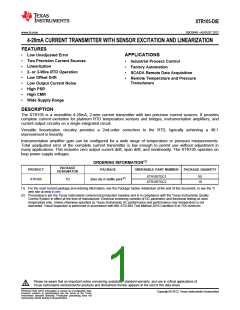

XTR105-DIE
www.ti.com
SBOS648 AUGUST 2012
4-20mA CURRENT TRANSMITTER WITH SENSOR EXCITATION AND LINEARIZATION
1
FEATURES
Low Unadjusted Error
Two Precision Current Sources
Linearization
APPLICATIONS
Industrial Process Control
Factory Automation
2- or 3-Wire RTD Operation
Low Offset Drift
SCADA Remote Data Acquisition
Remote Temperature and Pressure
Transducers
Low Output Current Noise
High PSR
High CMR
Wide Supply Range
DESCRIPTION
The XTR105 is a monolithic 4-20mA, 2-wire current transmitter with two precision current sources. It provides
complete current excitation for platinum RTD temperature sensors and bridges, instrumentation amplifiers, and
current output circuitry on a single integrated circuit.
Versatile linearization circuitry provides a 2nd-order correction to the RTD, typically achieving a 40:1
improvement in linearity.
Instrumentation amplifier gain can be configured for a wide range of temperature or pressure measurements.
Total unadjusted error of the complete current transmitter is low enough to permit use without adjustment in
many applications. This includes zero output current drift, span drift, and nonlinearity. The XTR105 operates on
loop power-supply voltages.
ORDERING INFORMATION(1)
PACKAGE
DESIGNATOR
PRODUCT
PACKAGE
ORDERABLE PART NUMBER
PACKAGE QUANTITY
XTR105TDC1
XTR105TDC2
80
10
XTR105
TD
Bare die in waffle pack(2)
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2) Processing is per the Texas Instruments commercial production baseline and is in compliance with the Texas Instruments Quality
Control System in effect at the time of manufacture. Electrical screening consists of DC parametric and functional testing at room
temperature only. Unless otherwise specified by Texas Instruments AC performance and performance over temperature is not
warranted. Visual Inspection is performed in accordance with MIL-STD-883 Test Method 2010 Condition B at 75X minimum.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2012, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
XTR105-DIE
SBOS648 AUGUST 2012
www.ti.com
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
BARE DIE INFORMATION
BACKSIDE
POTENTIAL
BOND PAD
METALLIZATION COMPOSITION
BOND PAD
THICKNESS
DIE THICKNESS
BACKSIDE FINISH
10.5 mils.
Silicon with backgrind
Floating
AlCu (0.5%)
1100 nm
2
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
XTR105-DIE
www.ti.com
SBOS648 AUGUST 2012
Table 1. Bond Pad Coordinates in Microns
DESCRIPTION
PAD NUMBER
X MIN
-1612.9
-1176.02
-972.82
-590.55
-180.34
157.48
Y MIN
-462.28
-833.12
-817.88
-833.12
-833.12
-802.64
-848.36
-848.36
-848.36
-513.08
-281.94
514.35
751.84
716.28
731.52
731.52
576.58
360.68
X MAX
-1511.3
-1074.42
-805.18
-488.95
-12.7
Y MAX
-360.68
-731.52
-716.28
-731.52
-731.52
-701.04
-746.76
-746.76
-746.76
-411.48
-180.34
615.95
854.44
817.88
833.12
833.12
678.18
462.28
IR1
VIN-
RG
1
2
3
RG
4
RG
5
RG
6
259.08
N/C
7
407.67
509.27
N/C
8
613.41
715.01
IRET
IO
9
1483.36
1511.3
1584.96
1612.9
10
11
12
13
14
15
16
17
18
E (Emitter)
B (Base)
V+
1483.36
1483.36
1508.76
175.26
1584.96
1584.96
1610.26
276.86
VREG
VLIN
VIN+
N/C
-1123.95
-1408.43
-1612.9
-1612.9
-1022.35
-1306.83
-1511.3
-1511.3
IR2
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
3
PACKAGE OPTION ADDENDUM
www.ti.com
21-Aug-2012
PACKAGING INFORMATION
Status (1)
Eco Plan (2)
MSL Peak Temp (3)
Samples
Orderable Device
Package Type Package
Drawing
Pins
Package Qty
Lead/
Ball Finish
(Requires Login)
XTR105TDC1
XTR105TDC2
ACTIVE
ACTIVE
0
0
80
10
TBD
TBD
Call TI
Call TI
N / A for Pkg Type
N / A for Pkg Type
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 1
