DZ11A92-RB241-4F

型号：

DZ11A92-RB241-4F

品牌：

FOXCONN[ FOXCONN ]

页数：

1 页

PDF大小：

89 K

下载PDF手册

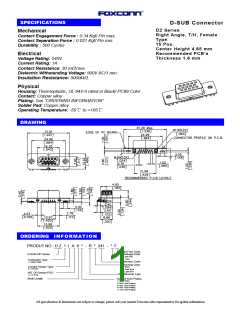

SPECIFICATIONS
D-SUB Connector
DZ Series
Right Angle, T/H, Female
Type
Mechanical
Contact Engagement Force : 0.34 Kgf/ Pin max.
Contact Separation Force : 0.021 Kgf/ Pin min.
Durability : 500 Cycles
15 Pos.
Center Height 4.65 mm
Recommended PCB’s
Thickness 1.6 mm
Electrical
Voltage Rating: 240V
Current Rating: 1A
Contact Resistance: 30 mΩ max.
Dielectric Withstanding Voltage: 500V AC/1 min.
Insulation Resistance: 5000MΩ
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black/ PC99 Color
Contact: Copper alloy
Plating: See “ORDERING INFORMATION”
Solder Pad: Copper alloy
Operating Temperature: -55℃ to +105℃
DRAWING
ORDERING INFORMATION
PRODUT NO.: D Z 1 1 A 9 * - R * 241 - * F
Lead Free Code
D-SUB DIP Series
Package Code
4 = Soft Tray
A = Tube
Terminator Type
Extension Code
1 = Right Angle
Housing Color
Contact Design Type
B = Black
0 = Female
D = Dark Blue
L = Light Blue
NO. Of Contact POS.
1 = 15 POS.
R/A Reverse Type
Body Length
Contact Area Plating
1=Gold Flash
2=20u" Gold Plating
3=30u" Gold Plating
6=10u" Gold Plating
7=15u" Gold Plating
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
